6.6 REPAIR PROCEDURES
50 DOC01-V6ULB+

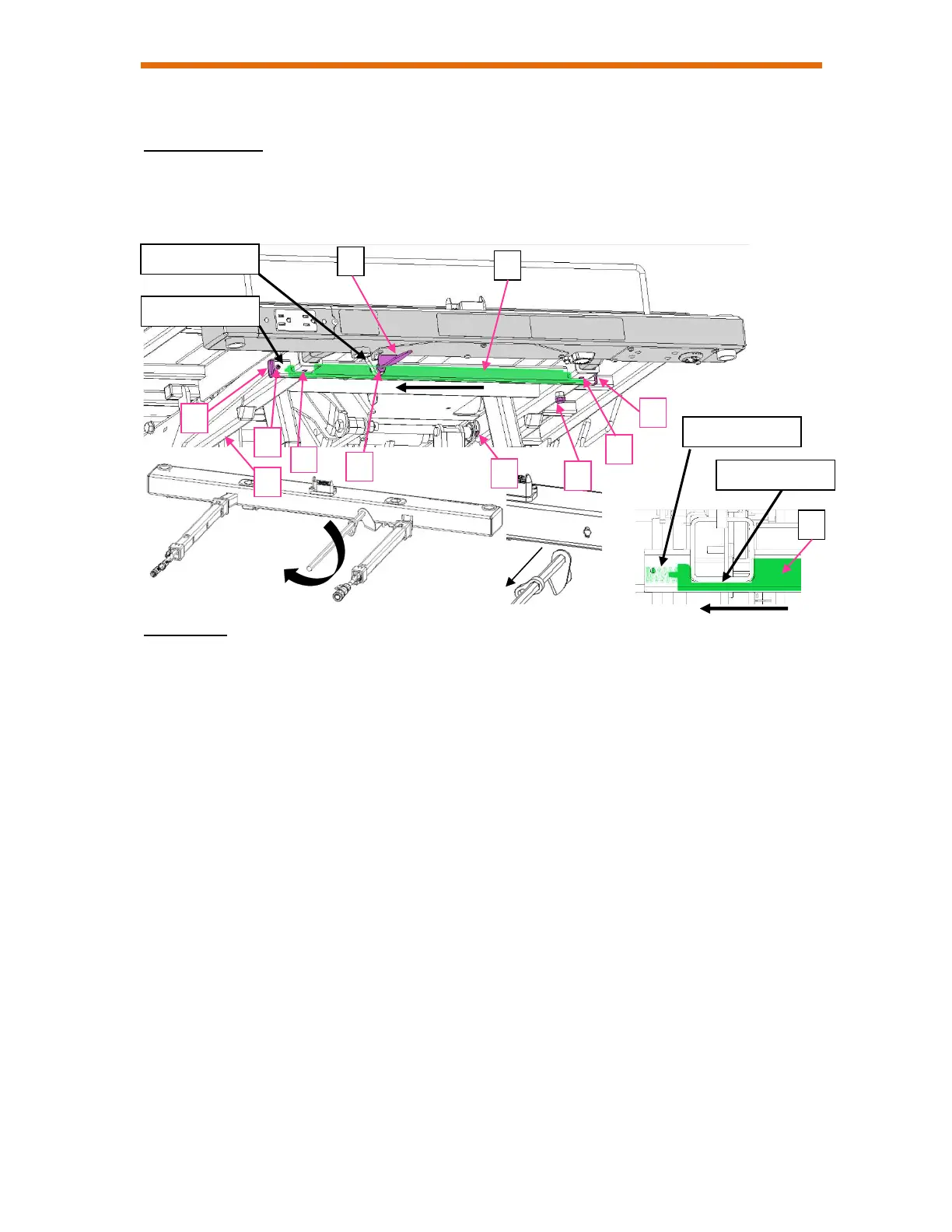

6.6 Replacement of footboard structure extension
Tools required :
• Flathead screwdriver • 1/2" wrench • 3/8" wrench
• Robertson long square screwdriver #2
Procedure:
1. Raise the bed to its highest position and apply the brakes.
2. Lift the foot section.
3. Unplug the power cord from the wall socket.
4. Unscrew screw (E) and remove the plastic plugs (H) using a flathead screwdriver,
taking care not to lose the spring.
5. Remove screws (A) with ½" wrench and screws (B) with square screwdriver.
6. Disconnect cables from holes near screws (B).
7. Remove screw (F) using ½" wrench.
8. Using the flathead screwdriver, move the lock (G) towards the openings.
9. Using a flathead screwdriver, press the tabs on guide (C) and slide it out. Repeat
the same operation on the other side and remove the foot extension.
10. To remove the extension, turn the latch 1/4 turn to remove it from its base.
11. Reverse the above steps to install the new foot extension, making sure the latch
(D) and lever are correctly positioned.
12. Check all footboard controls for correct operation before putting the bed back
into service.
LEVER
H
A
B
C
D
F
G
C
B
H
E
OPENING
SPRING
SPRING
G
