6.8 REPAIR PROCEDURES
DOC01-V6ULB+ 53

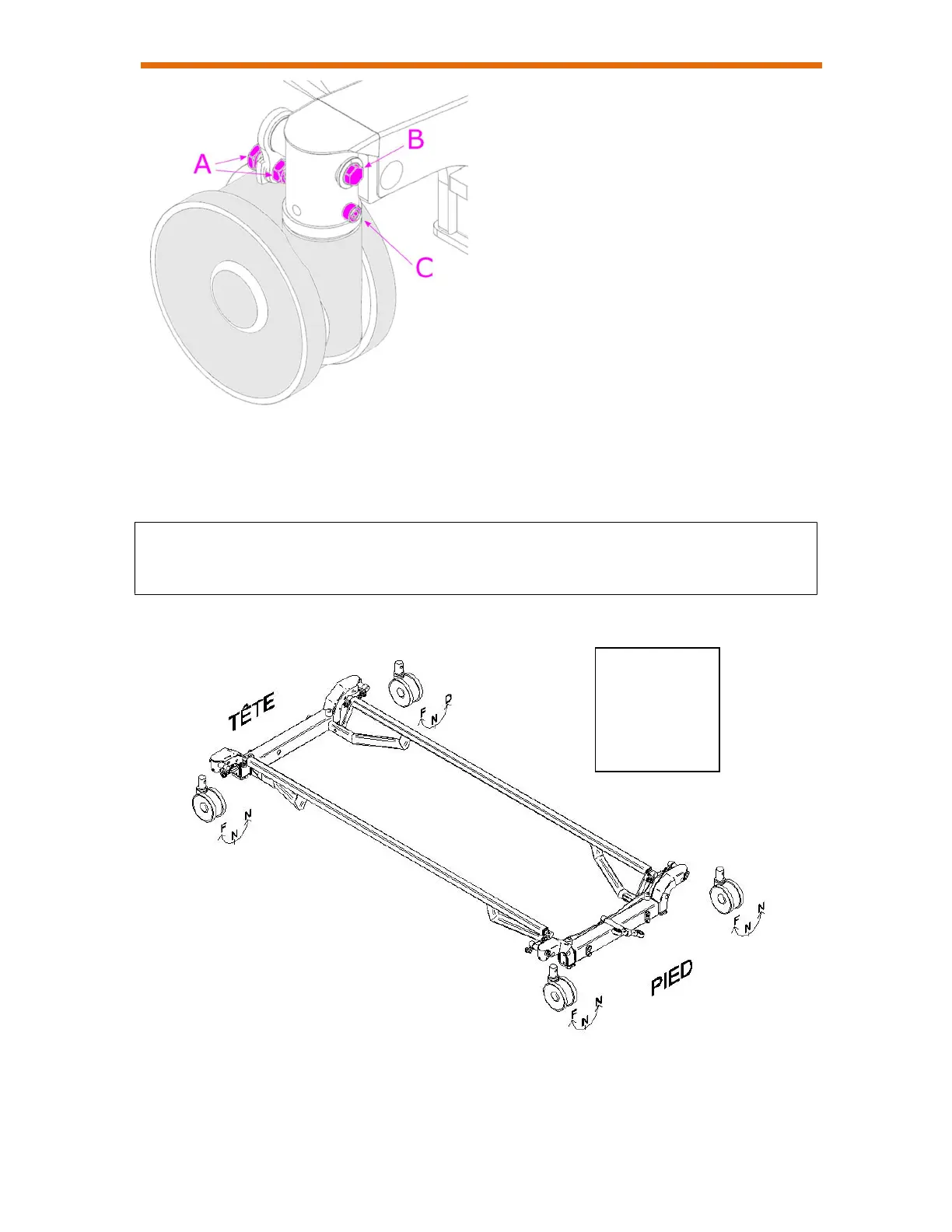

5. Unscrew screw (A) and nut using hexagonal keys.
6. Remove hexagonal pin (B) by tapping on the end.
7. Unscrew the Allen screw (C) and remove the wheel.
Note: Orient correctly before installing on the base. The illustration below shows
the direction in which the wheel should operate when activated.
8. Reverse the above steps to install the new wheel.
