6.9 REPAIR PROCEDURES
56 DOC01-V6ULB+
5. Undo the bed wheel as described in the previous section.
6. Remove the cover using the screwdriver extractor.

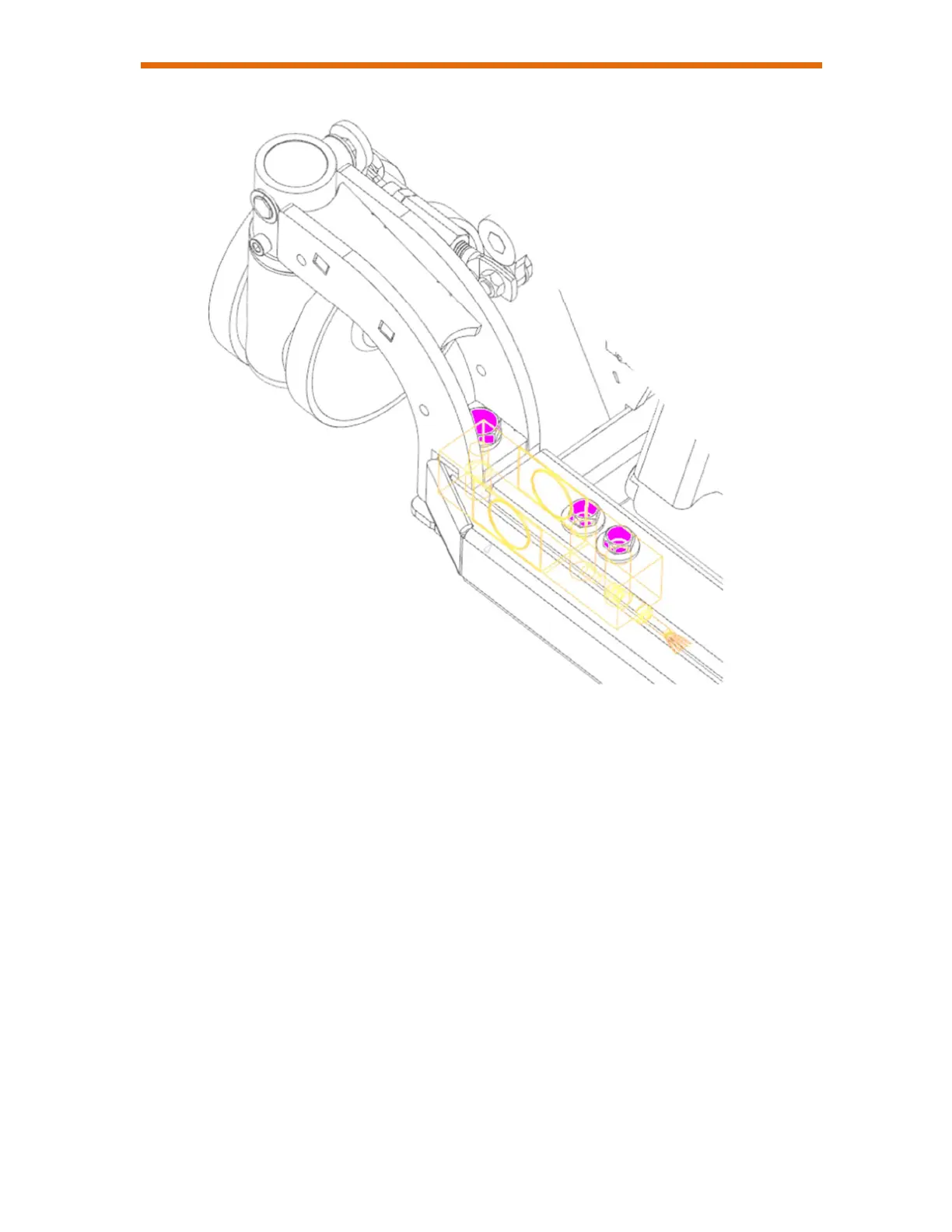

7. Remove the 3 bolts screwed into the cell.
8. Remove the plastic cover where the wires enter the axle.
9. Pull the wire entering the axle out of the scale connector and disconnect it.
10. Remove the cell, ideally using a magnet or a sharp object.
11. Reverse the above steps to install the new cell.
12. Check that the cell is working properly before putting the bed back into service.
