6.12 REPAIR PROCEDURES
62 DOC01-V6ULB+
3. Lower the side panels and raise the head section.
4. Unplug the power cord from the wall socket.
5. Using the screwdriver extractor, remove the seat platform cover.
6. Using wire cutters, remove the cable ties securing the motor cable to the chassis.

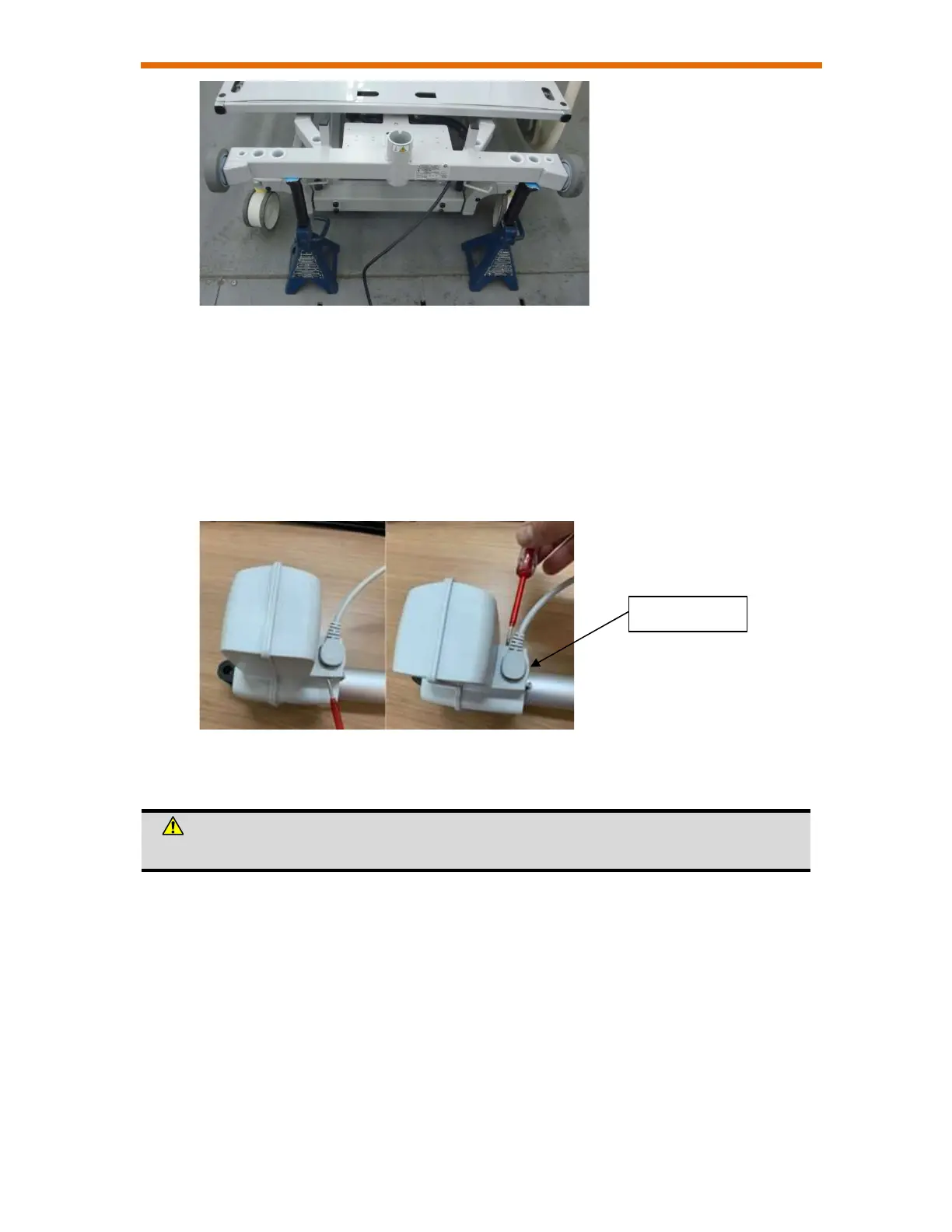

7. Disconnect the motor cable (A) by removing the lock (F) with a flathead
screwdriver, pressing down on both sides.
8. Using a 9/16" wrench, hold the 2 screws (C and D) and with another 9/16" wrench
loosen the nuts (B).
BE CAREFUL WHEN REMOVING THE SCREWS, THE BASE STRUCTURE
WILL DROP, SO HOLD THE BASE.
9. Reverse the above steps to install the new lift motor.
10. Check that the lift motor is working properly before putting the bed back into
service.
