Installation drawings
Positioning of the frame components – All hinge sides
Turn-Only / Tilt&Turn – RC1/RC1N

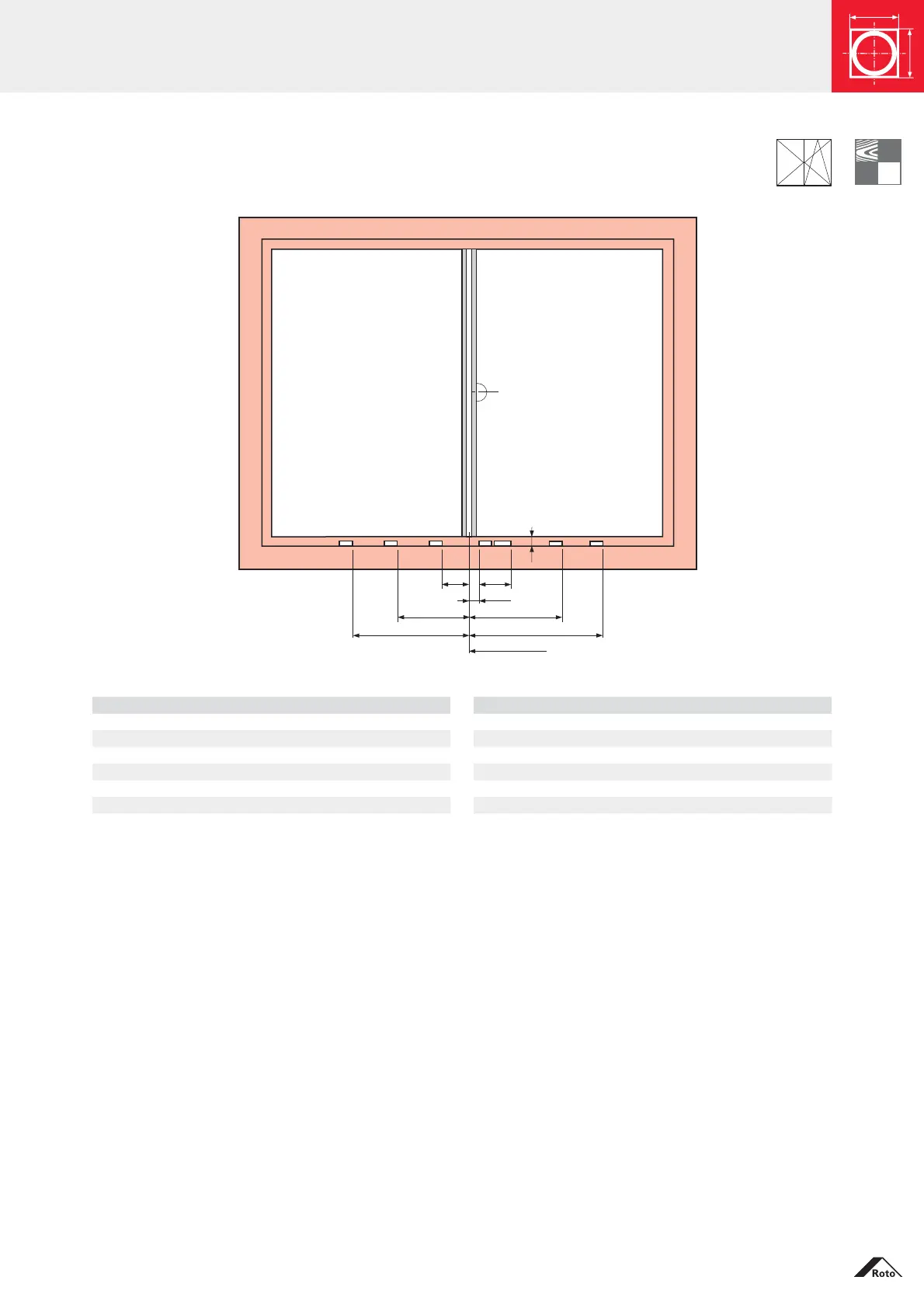

Striker dimensions (mm)
horizontal, bottom – RC1 / RC1 N
Multipart centre lock, horizontal, 4mm clearance
SRW / mm CLH1 CLH2
see parts lists 252 – CL 200 (CON)
RC1 / RC2 452 – CL 400 CON
456 – CL 400
658 – CL 600 (CON)
658 858 CL 600 CON, CL 200 (CON)
658 1062 CL 600 CON, CL 400
Multipart centre lock, horizontal, 4mm clearance
SRW / mm CLH1 CLH2
see parts lists 252 – CL 200 (CON)
RC1 / RC2 452 – CL 400 CON
456 – CL 400
658 – CL 600 (CON)
658 858 CL 600 CON, CL 200 (CON)
658 1062 CL 600 CON, CL 400
without
centre post
52 86.5
18
12
Centre of clearance
CLH1
CLH2 CLH2
CLH1
