3. Description of the QABrowser

Indicators and Symbols

Piranha & QABrowser Reference Manual

2014-06/5.5C

Indicators and Symbols3.9

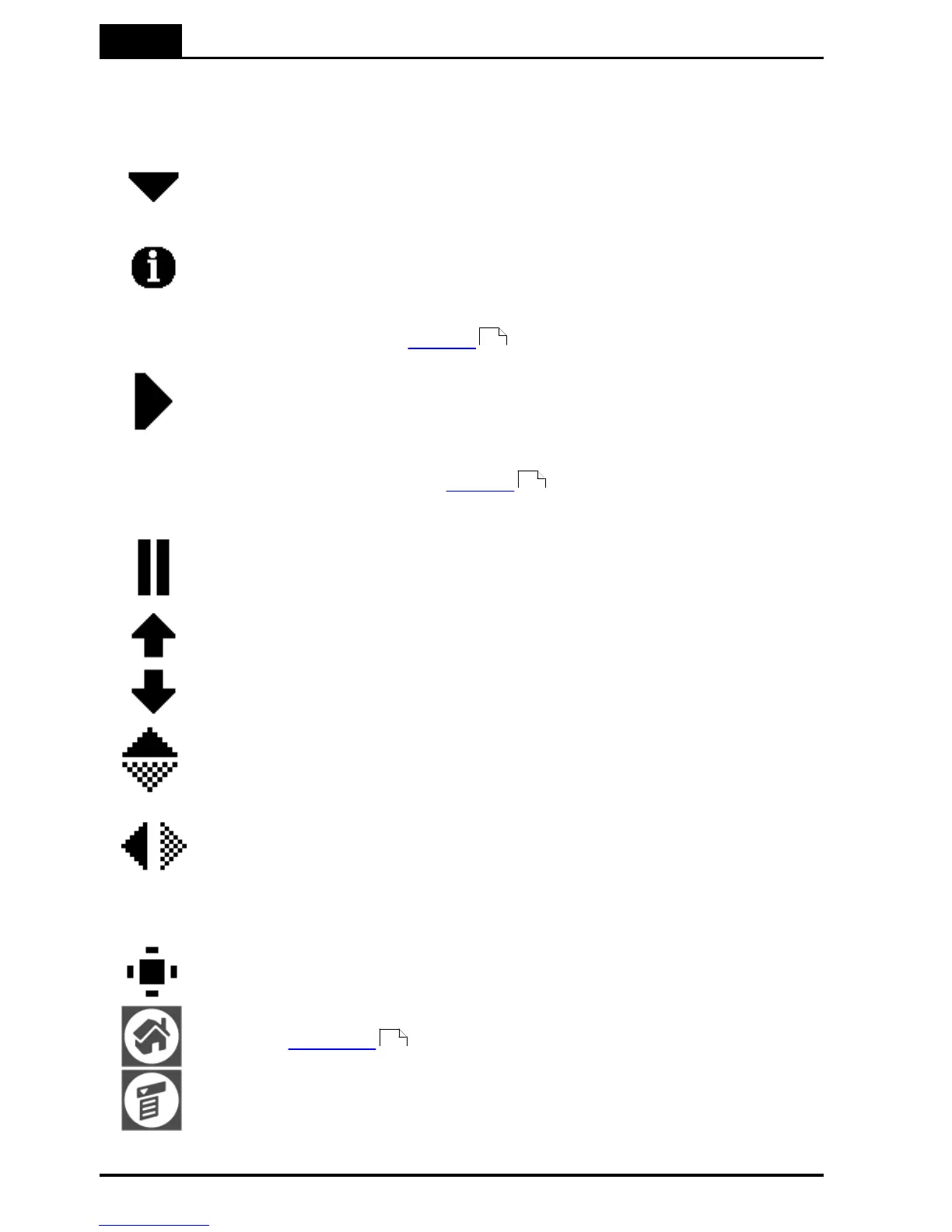

Different indicators (symbols) are used to indicate status and to guide you in different

situations. You can tap same of the indicators to get more information:

This symbol may be preceding a text or a value. It indicates that if you tap it,

a drop-down list with more choices will appear, allowing you to change the

corresponding value/text/setting.

This symbol indicates that settings information is available. Tap this icon to

open the additional information screen. Here are measurement information

and settings for the Piranha and its detectors found. This menu is accessed

when you need to override the default settings of the Piranha that are set by

the QABrowser. See topic Settings for more information.

This "play" symbol indicates that the system has been trigged, and the

continuous readings (fluoro) are being updated. When the radiation stops

this symbol will disappear and a green RTI logo will briefly be superimposed

over the whole screen. If you get this symbol when there is no signal press

reset. If it comes over and over you may need to increase the trig level, by

raising the threshold, see topic Settings .

This "pause" symbol indicates that hold has been activated during

measurement on fluoroscopy.

This symbol indicates that there are more items not visible in a list. Tap the

symbol or press the up/down buttons to view not visible items.

This symbol is similar to the previous. Tap to move the cursor bar up and

down in the built-in applications (accuracy, linearity, reproducibility, and so

on). Grey arrows indicates that the end has been reached. It may also be

used to step between different "rows" in the Quickbar.

This symbol is also similar to the previous ones. It is used for the built-in

applications (accuracy, linearity, reproducibility, and so on), when multiple

parameters is measured, i.e. "All" etc. Tap left or right to move between the

different reading screens. Grey arrows indicates that the end has been

reached, as indicated by the text in between.

This is an animated symbol. Its "movement" indicates that the log is enabled

and active. Tap it to toggle between pause and active.

This icon on the top left side of the Graffiti area takes you to the Favourites,

see section Favourites .

This icon on the bottom left side of the Graffiti area is the menu icon.

Tapping this symbol brings down the drop-down menu from the top of the

screen.
