2. Description of the Piranha
Indicators and Connectors
2014-06/5.5C
9
Piranha & QABrowser Reference Manual
2 Description of the Piranha
Indicators and Connectors2.1

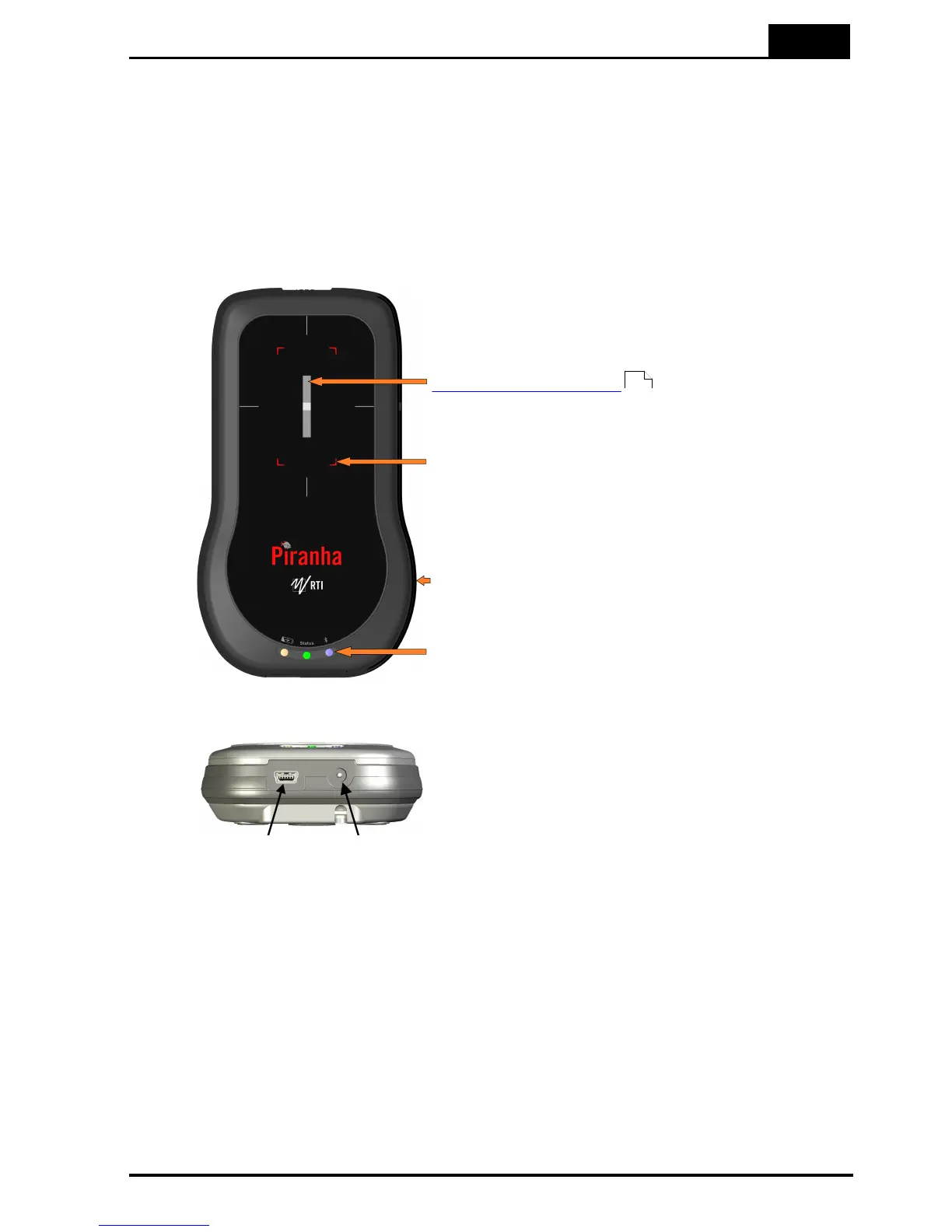

The Piranha comes in a lot of different models, the external design is basically the same
for all models (except for the External Probe port).
Edge: External Probe port (on
some Piranha models)
Detector area
The rectangular marking indicates where the active
detector area is located. The detector surface is
located 10 mm below the surface, see section
Specifications, Piranha . Minimum X-ray field is
3×21 mm.
The recommended field size is shown as red
corners. (20×40 mm).
Power switch (on edge)
Turns the Piranha on and off
Indicators for charging, status, and Bluetooth
USB Palm charger
port output (not used)
The USB port is used when using RTI Updater to update the internal firmware. It can
also be used when the Piranha is used together with a PC running the QA software
Ocean. Note that the USB connector cannot be used when connecting to a handheld
computer. The system is then powered from the PC via the USB cable. The PC
however have a limited USB power output, so when fast charging is needed the power
supply needs to be connected here. This is also possible when using the Bluetooth link
to communicate with the Palm or PC. The port is marked USB.
