RTI Piranha Reference Manual

4. Measurement Principles & Theory
Update Modes
Piranha & QABrowser Reference Manual
2014-06/5.5C
76
Update mode
Auto
reset
Reset
time
(s)
Sample
time
(ms)
Min. WF
rec. time
(s)
Max. WF
rec. time
(s)
After Exposure
–
1
0.5-64
0.32
40
Timed (Low/High sens.)
–
4
0.5-64
0.32
40
Timed (Very High sens.)
–
30
20-2560
13
2000
Continuous
Yes
1
0.5-64
0.32
40
Free run (Low/High sens.)
–
4
0.5-64
0.32
40
Free run (Very High sens.)
–
30
20-2560
13
2000
Note: The Sample time is the "resolution" of the waveform, i.e. time between two samples.
Auto reset means that a reset is performed after each trig off.
Reset time is the time it takes to perform a reset each time you hit Reset.
Sample time is the time between individual data point of the waveform.
Waveform recording time is the range of user selectable recording times the Piranha
allows.
Note that in Timed and Free run you may get negative readings, for instance if you
press reset when a signal is present on the detector.

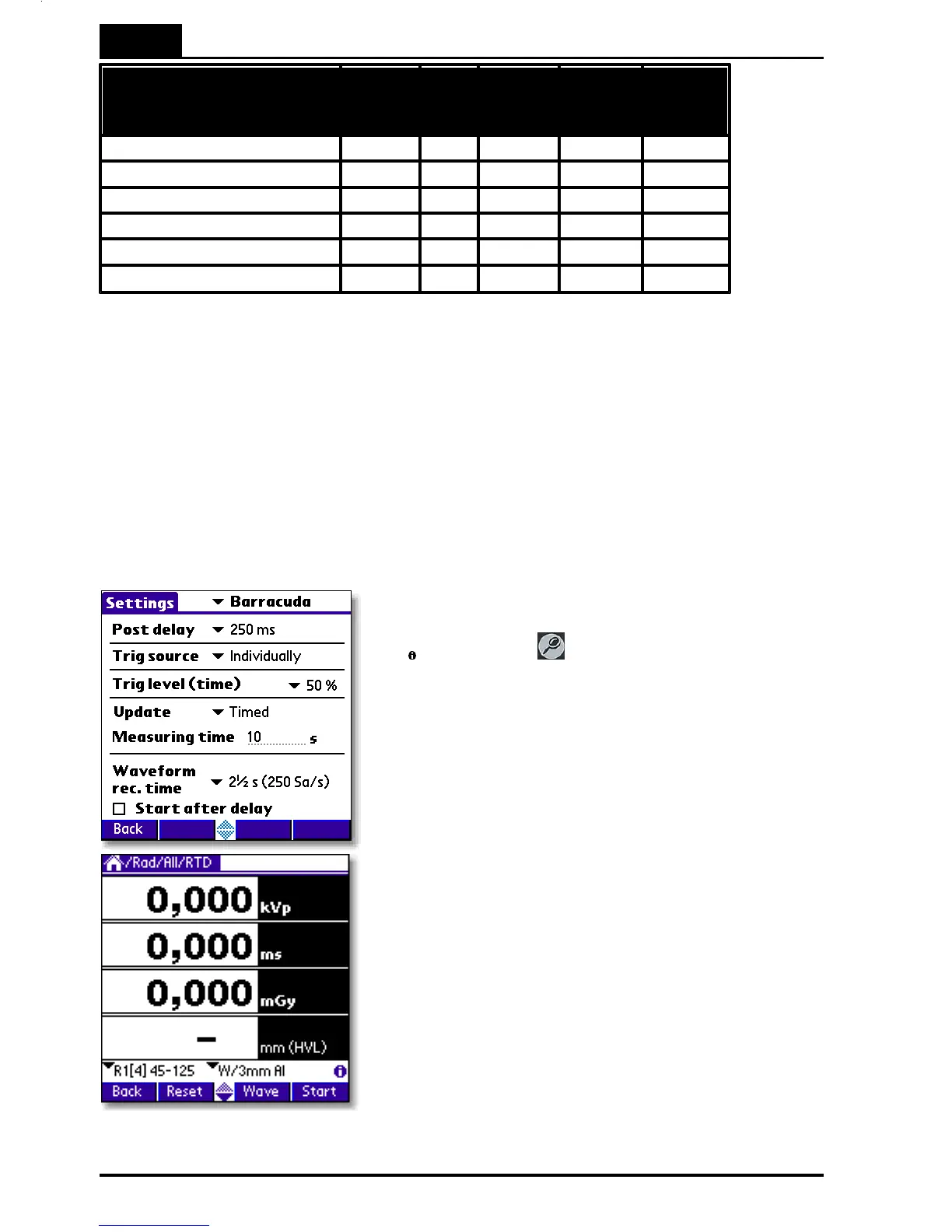

4.3.1 Using Timed Update Mode
Change mode by going into settings using
the symbol or the graffiti icon. Then
select the Piranha section as shown to the
right, and input the desired measuring time.
Tap Back to exit settings.
The measurement is started by tapping the
Start button.
