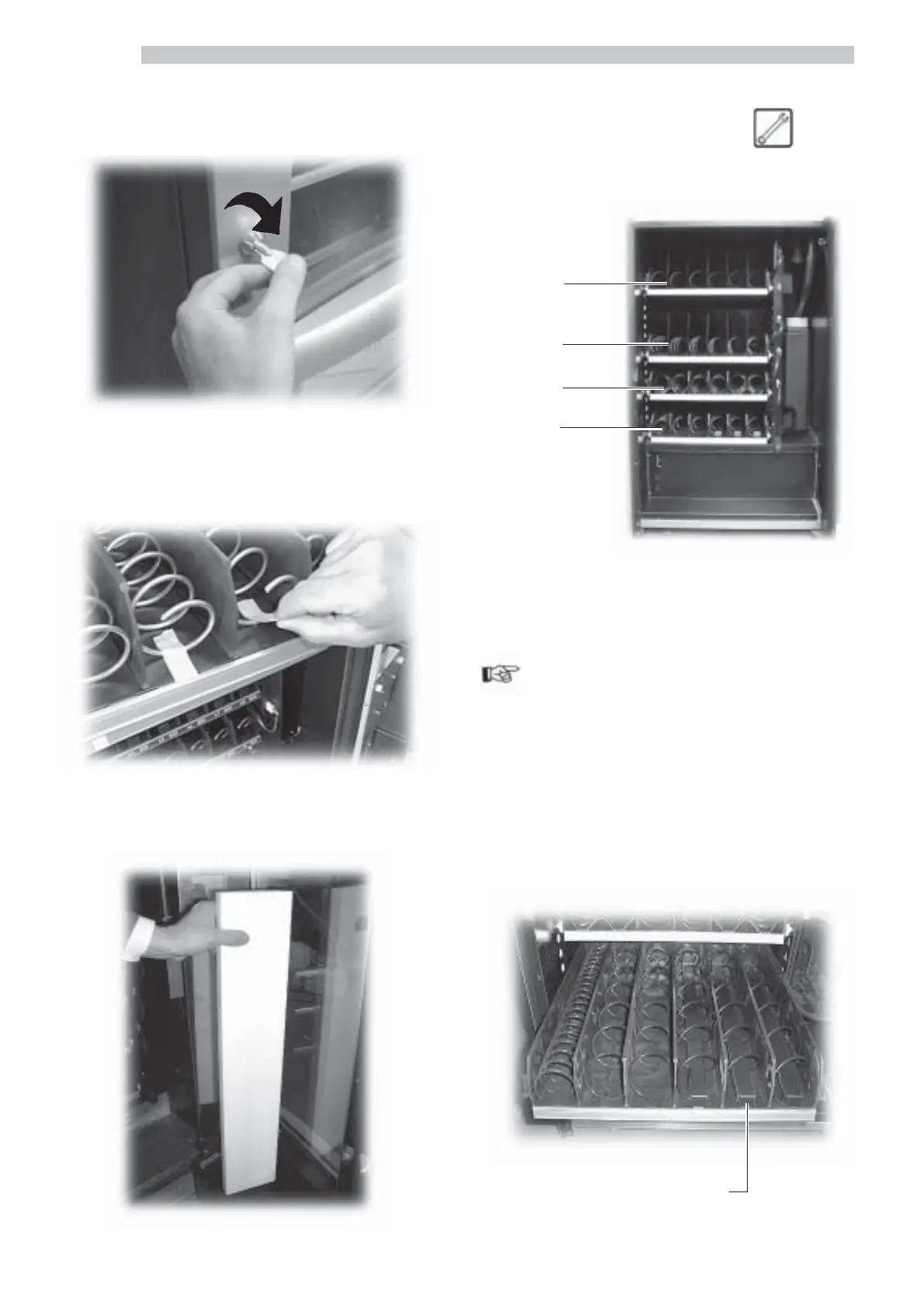

Fig. 28
Remove the adhesive tape that fixes the spirals and the
dispensing channels (Fig. 29).
Fit the key into the SNACKS lock, turn clockwise and
open the door (Fig. 28)
Remove the polystyrene (Fig. 30).
Fig. 30
Fig. 29
Fig. 31
Fig. 32
Important
The lower trays will dispense cans, because they fall from
a lower level.
The upper trays will dispense bottles as the refrigeration
temperature is higher than in the lower trays.
Dispensing channels are mounted in the cans trays to ease
the dispensing (Fig. 32).
5.3 Setting the tray
Figure 31 shows one of the possible tray configurations
foreseen by the Manufacturer.
Bottles tray
Bottles tray
Snacks tray
Tray
Snack/cans tray
Can dispensing channel
