10.3.2 Spiral replacement
In the standard version some spirals with different pitches
are supplied, suitable for dispensing products of different
sizes and consistency. Other spirals can be requested
directly from the manufacturer.
All spirals are interchangeable and can be fitted in the
trays of the vending machine in the following way:
- remove the tray from the vending machine and lean it
on the workbench;
- remove the motor and the spiral from the tray (Fig.
126);
- fit the most suitable spiral to the product to be
dispensed. Fit it into the drive flange of motor carrying
out the inverse procedure;
- adjust the spiral as indicated at 10.3.1.
Warning
Where the spiral to be replaced is coupled to a dispensing
guide channel for bottles, cans or tetrapack, raise it from
the bottom over the tray border, then remove it (Fig. 128).
You cannot remove the spiral without removing the
dispensing guide first.
- keeping the motor still, rotate the right spiral
anticlockwise until you unblock it from the stop notch
(Fig. 127). Rotate the left spirals clockwise.

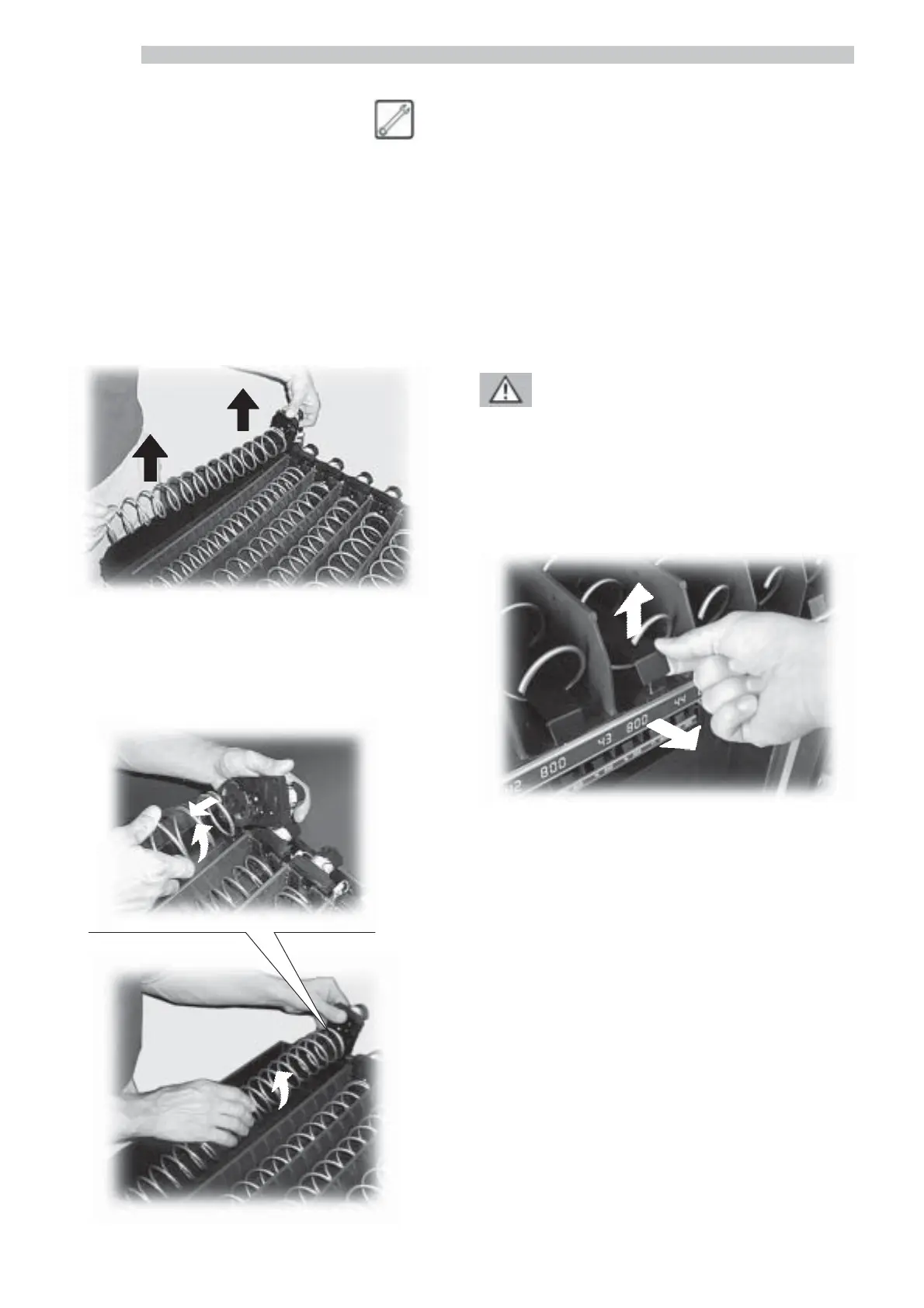

Fig. 128
Fig. 126
Fig. 127
