Saeco D.A. COMBISNACK User Manual

2
English
1
2
3
4
5
6
7
812
11
10
9
14
13
16
15

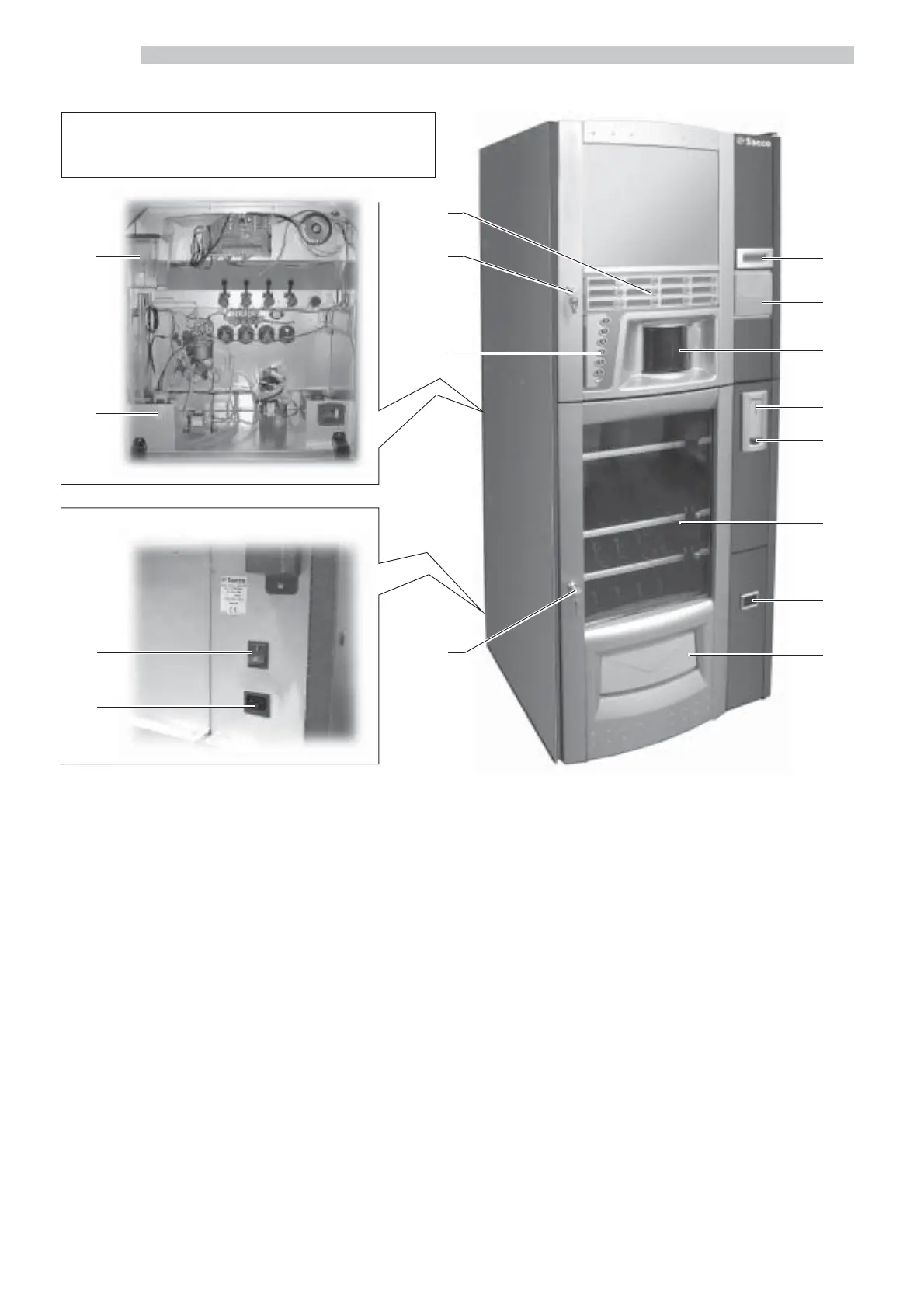

Fig. 1
1 Display
2 Instruction plate
3 Dispensing outlet door (Beverage/
Cup dispensing)
4 Coin slot
5 Change return key
6 Window
7 Change removal outlet
8 Product removal tray
9 HOT DRINKS product keypad
10 HOT DRINKS door lock
11 SNACKS keypad
12 SNACKS door lock
13 Air break device
14 Water connection coupling
15 On/off button
16 Power cord socket
17 Utility power socket
18 Sugar container
19 Container 1 (soluble products)
20 Container 2 (soluble products)
21 Container 3 (soluble products)
22 Container 4 (soluble products)
23 Coffee bean hopper
24 Coffee grinder
25 CPU card
26 Cup dispenser
27 Dispensing outlet
28 Neon light
29 Discharge fluid tank
30 Tray connection
31 Stirrer dispenser
32 Sugar opening
33 Solubles opening
34 Mixer
35 Spiral mixer
36 Sugar supply duct
37 Coffee unit
38 Coffee ground channel
39 Support bracket for soluble product
containers
40 Drip Tray
41 Bottle trays
42 Snack tray
43 Snack/cans tray
44 Dispensing spout support
45 Mobile drip tray
46 Anti-overflow valve drain hose
47 Air break device drain hose
48 Drip Tray
49 Payment system cable gasket
50 L shaped spacer
51 Spiral
52 U shaped spacer
53 Spacer
54 Spiral
55 Cans dispensing channel
56 Left spiral (snack tray)
57 Right spiral (snack tray)
58 Right spiral (snack tray)
59 Separator
60 Double spiralled snack conveyor
61 Double motor
62 Single motor
63 Cup bracket
MAIN PARTS
