Saeco D.A. COMBISNACK - Motor Replacement

61
English
Fig. 129

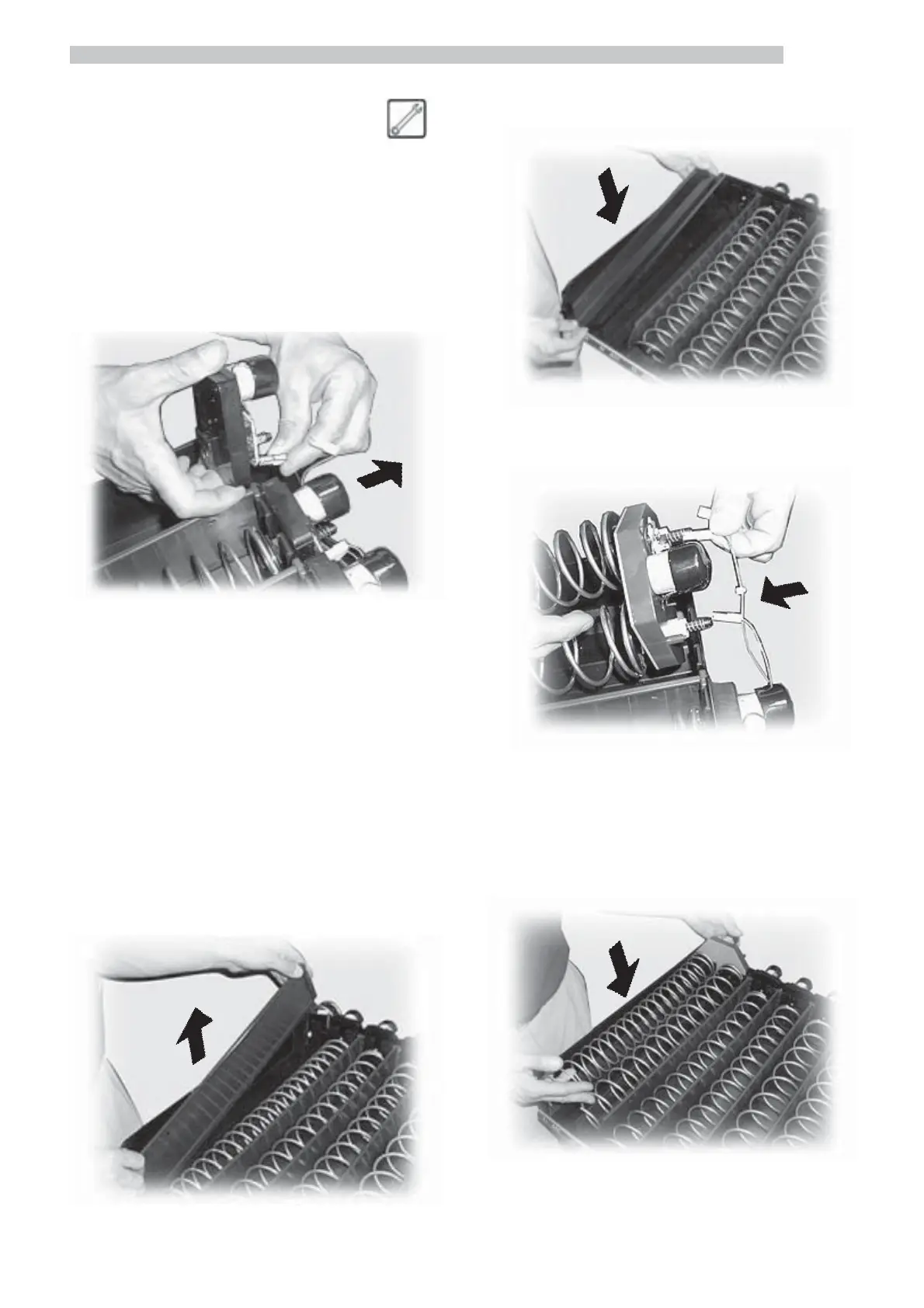

10.3.3 Motor replacement
The procedure is the following:
- remove the tray from the vending machine and rest it
on the workbench;
- remove the motor and the spiral from the tray (Fig.
126);
- remove the spiral (Fig. 127);
- remove the electrical connectors (Fig. 129);
- replace the motors and carry out the inverse procedure
for assembly.
If you want to replace a motor with a motor driving two
spirals you need to:
- remove the tray from the vending machine and lean it
on the workbench;
- remove the motor and the spiral from the tray (Fig.
126);
- remove the spiral (Fig. 127);
- if present, remove the dispensing guide (Fig. 128);
- remove the electrical connectors (Fig. 129);
- carry out the same procedure for the other spiral;
- remove the spacer (Fig. 130);
- fit the snack conveyor (Fig. 131);
- connect the two electrical connectors (Fig. 132);
Fig. 132
Fig. 130
Fig. 133
- assemble the right and the left spirals on the double
motor;
- insert the motor with the spirals in the proper channel
(Fig. 133);
- fit the tray into the vending machine and adjust the
spirals as indicated in 10.3.1.
Fig. 131
