PC Part
PC Module
▌ Main Functions
It implements the existing Hardware DSC Board and Video Manager Board in PC Part. PC
Module implements DSC Part in the Software Program and thus its performance is very
important.
COM Express Type II PC Module applies.
▌ Specification
• PC : Com-Express PC (Samsung Embeded PC)
• CPU : Intel Core i7-3635QM
• RAM : DDR3 8GB Memory
• SDD : SATA SSD 512GB
• OS : WES(Windows Embedded Standard) 7
• VGA : General VGA Card(Nvidia GTX650)
• Monitor : 23” Full-HD(1924 Ⅹ1080) LED Display
• DVD

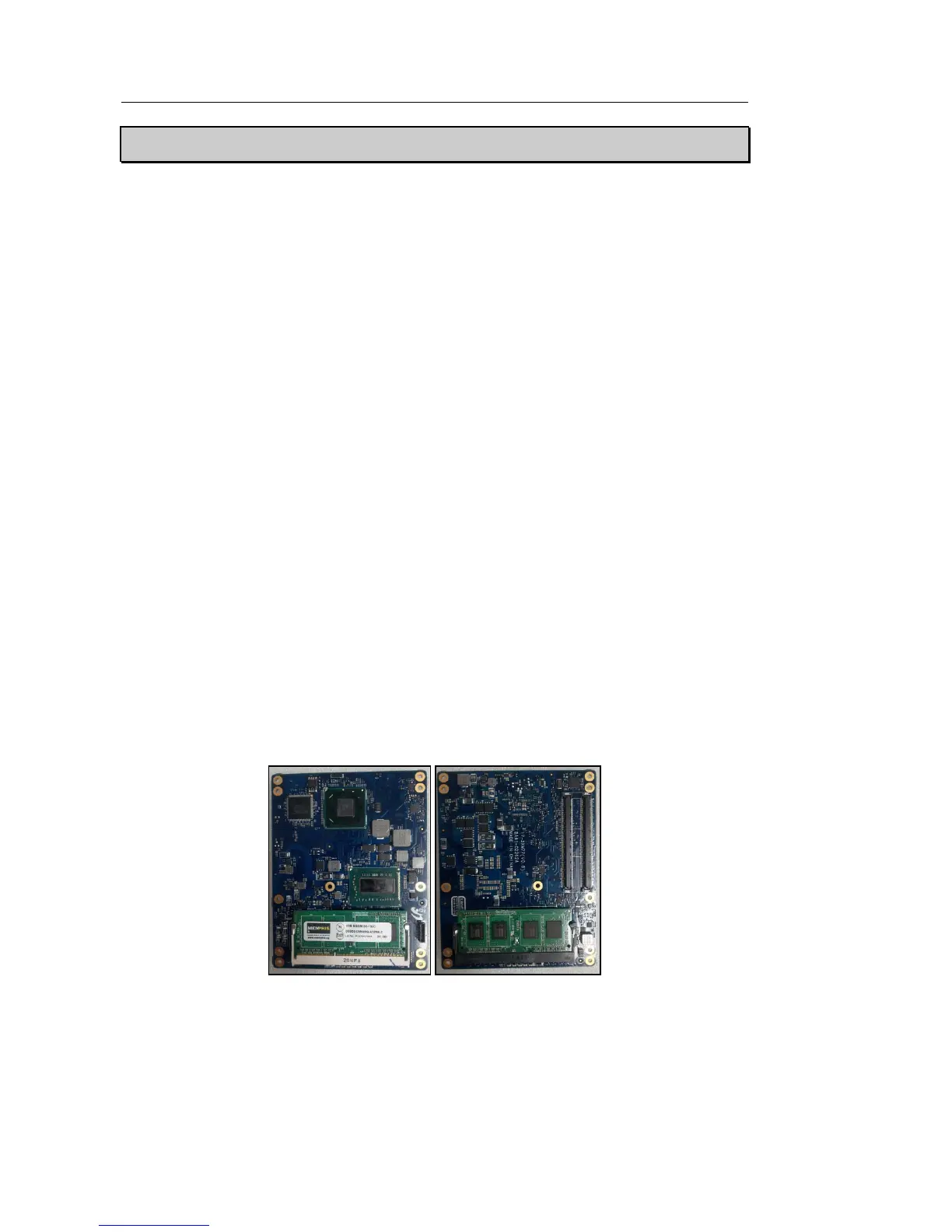

[Figure 5.10 PC Module]
