8 - 8 WS80A Service Manual

Monitor Disassembly

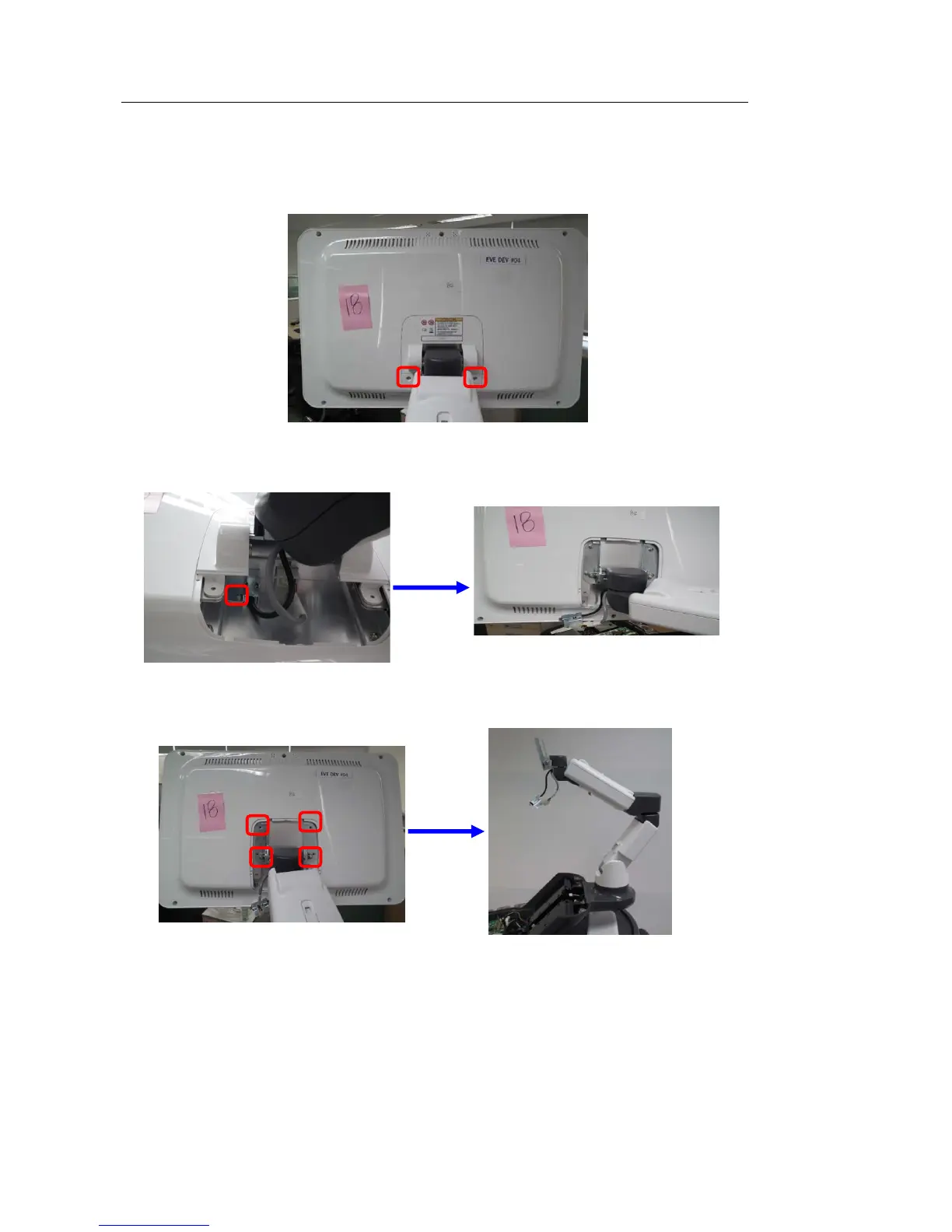

1. Remove 2 screws on the rear side and separate the bottom and top cover.

Remove 8 screws and detach the touch panel.

Remove 4 screws and detach the monitor module.
