Chapter 8. Disassembly and Assembly 8 - 5

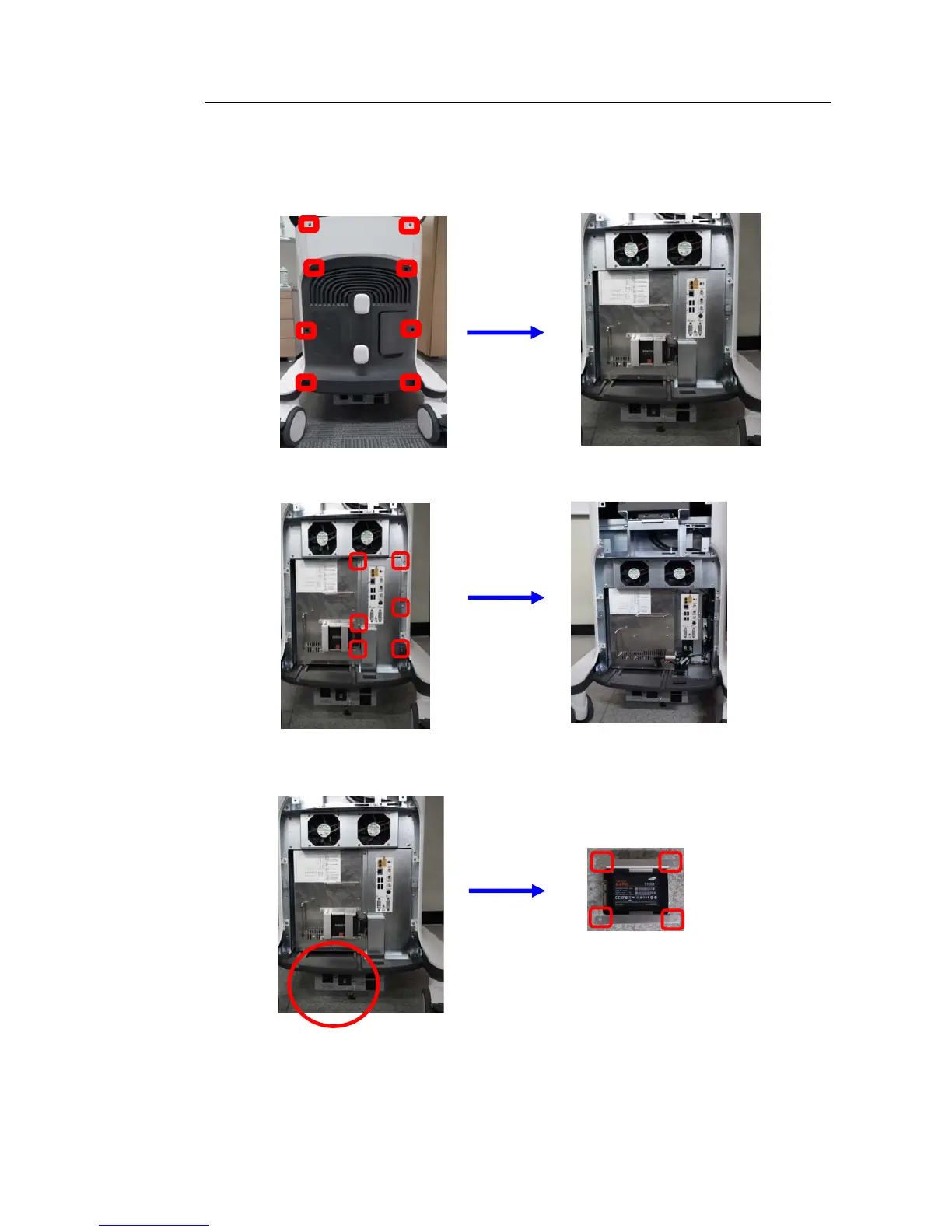

Rear Cover Disassembly

1. Remove 8 screws and detach the rear cover.

Remove 6 screws and detach the shield cover.

3. Remove 4 screws and detach SSD.
