Chapter 11. Service parts list 11 - 11

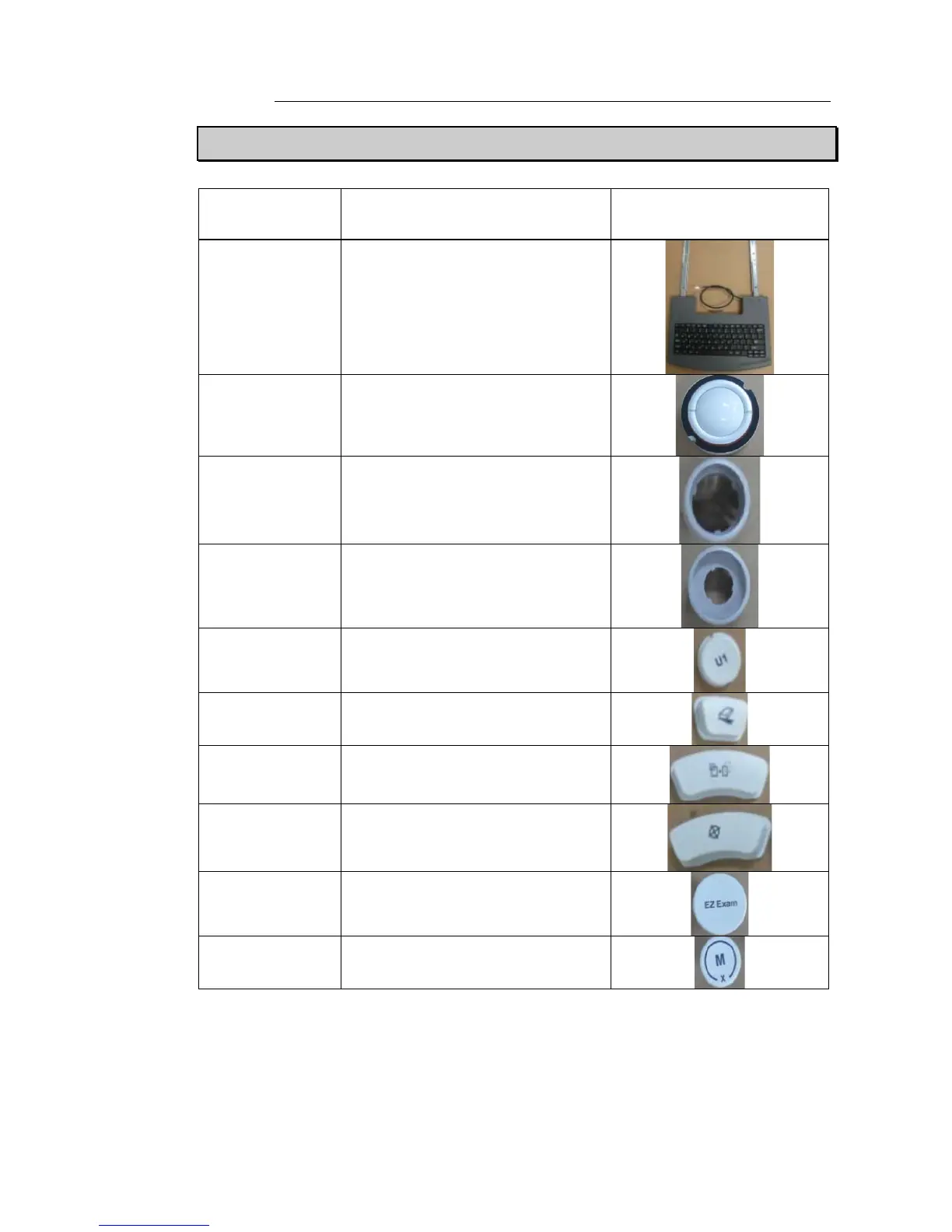

Control Panel Parts

Part Code Part Name Part Image

MI95-01306A ASSY ALPHA KEYBOARD-EXP

MI59-01111A TRACK BALL

MI64-01911A KNOB-ENCORDER

MI64-01912A KNOB-ENCORDER EZ EXAM

MI64-01915A BUTTON-CAP KEY U1

MI64-01916A BUTTON-CAP KEY CLEAR

MI64-01917A BUTTON-CAP KEY CHANGE

MI64-01918A BUTTON-FREEZE

MI64-01919A BUTTON-ENCORDER EZ EXAM

MI64-01920A BUTTON-ENCORDER M
