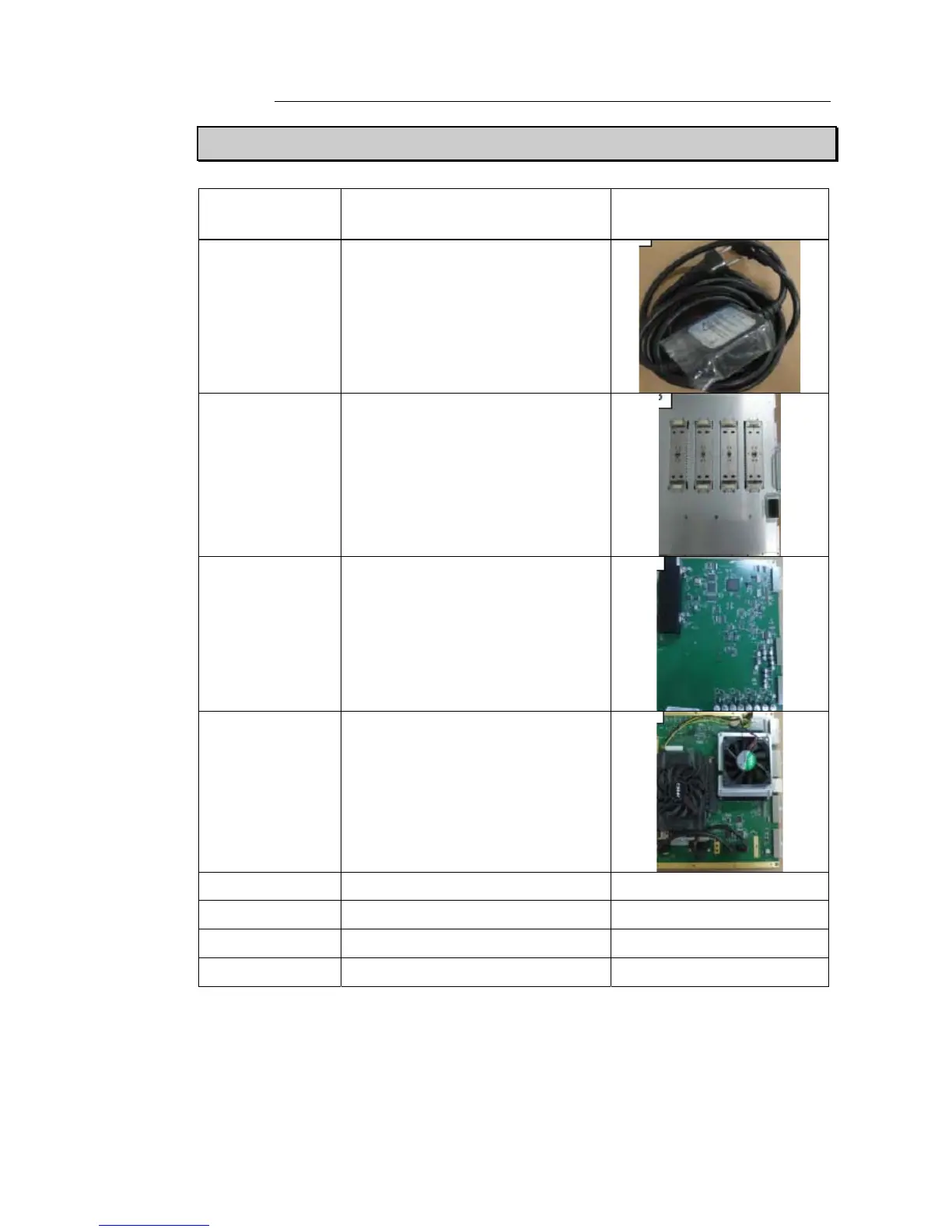

Chapter 11. Service parts list 11 - 7

System Parts

Part Code Part Name Part Image

MI39-01378A HARNESS UNIT

MI92-01919A ASSY BOARD

MI92-01920A ASSY BOARD

MI92-01923A ASSY BOARD

MI82-02253A A/S ASSY-BOARD

5902-005111 CARD VGA

MI82-02254A A/S ASSY-PC MODULE

MI59-01112A BOARD-I7-3XM77
