Tunable Semiconductor Laser TSL-770
5-17
5.
Executing a sweep at the timing of trigger input

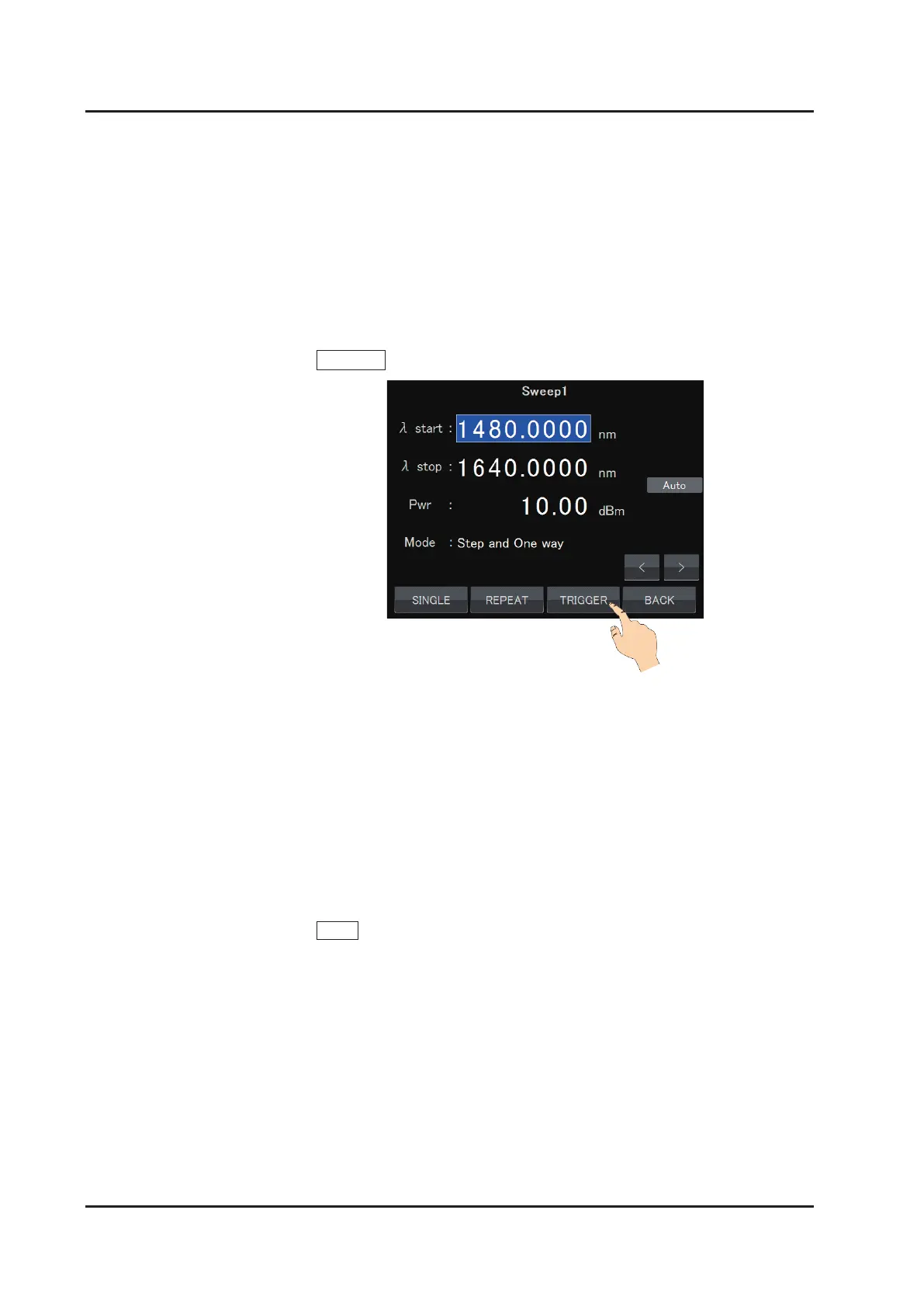

Touch TRIGGER to enter trigger standby mode. ”Trigger” lights up on the screen.
Execute the sweep by inputting any of the following triggers in trigger standby mode.
・
BNC input on rear panel (“Rear BNC” must be selected)
・
Dial operation on the front panel. Turn clockwise (“Front Key” must be selected)
・
Software trigger using a communication command (“Front Key” must be selected)
Operation by trigger signals depends on the sweep mode setting.
Sweep Mode:
One sweep is executed at trigger input.
Step Mode:
Wavelength moves to the next step at trigger input.
6.
Stop a sweep
Touch STOP to stop a sweep in progress. Sweep is stopped immediately.
