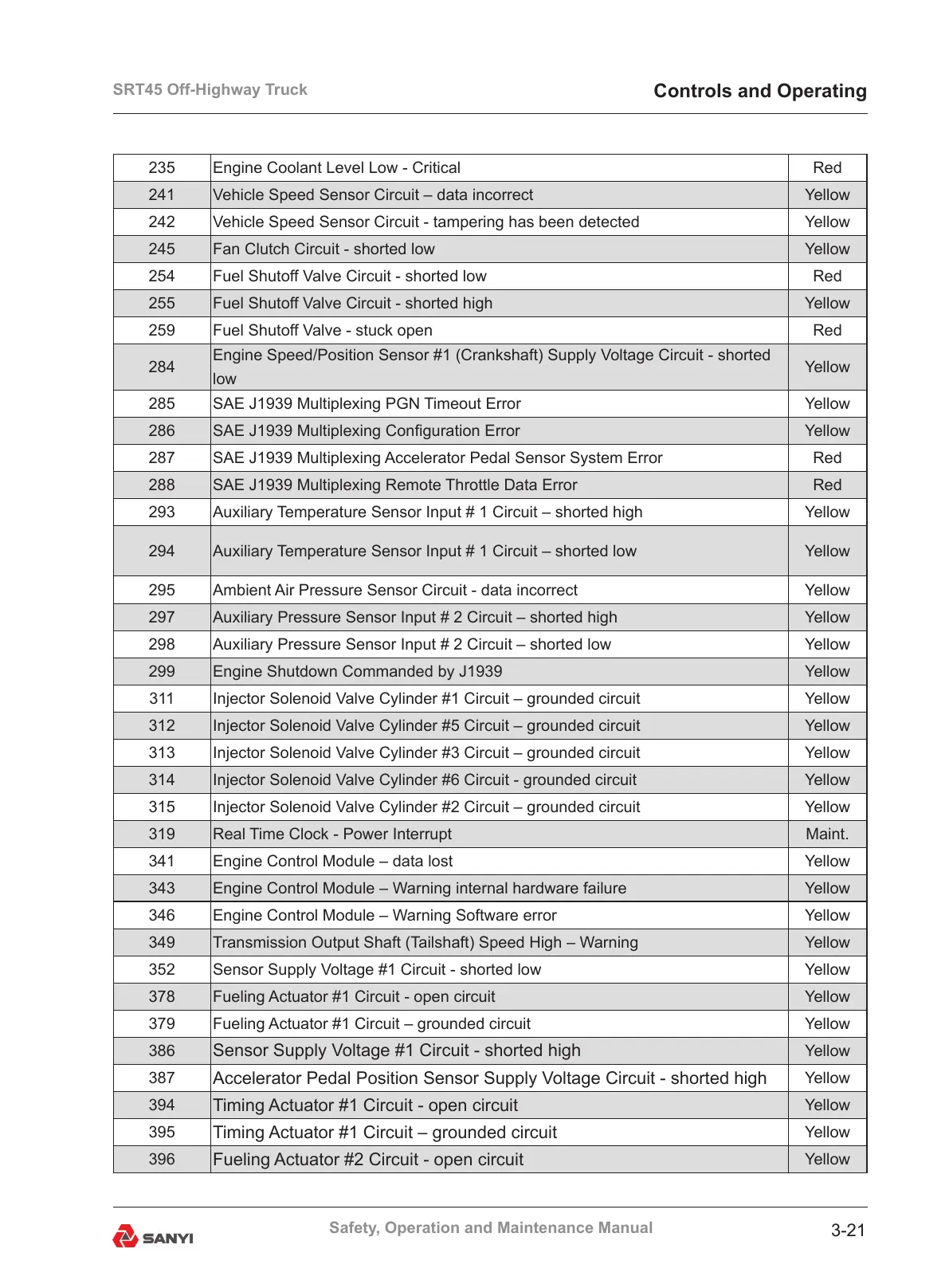

235 Engine Coolant Level Low - Critical Red
241 Vehicle Speed Sensor Circuit – data incorrect Yellow
242 Vehicle Speed Sensor Circuit - tampering has been detected Yellow
245 Fan Clutch Circuit - shorted low Yellow
254 Fuel Shutoff Valve Circuit - shorted low Red
255 Fuel Shutoff Valve Circuit - shorted high Yellow
259 Fuel Shutoff Valve - stuck open Red
284
Engine Speed/Position Sensor #1 (Crankshaft) Supply Voltage Circuit - shorted
low
Yellow
285 SAE J1939 Multiplexing PGN Timeout Error Yellow
286 SAE J1939 Multiplexing Conguration Error Yellow
287 SAE J1939 Multiplexing Accelerator Pedal Sensor System Error Red
288 SAE J1939 Multiplexing Remote Throttle Data Error Red
293 Auxiliary Temperature Sensor Input # 1 Circuit – shorted high Yellow
294 Auxiliary Temperature Sensor Input # 1 Circuit – shorted low Yellow
295 Ambient Air Pressure Sensor Circuit - data incorrect Yellow
297 Auxiliary Pressure Sensor Input # 2 Circuit – shorted high Yellow
298 Auxiliary Pressure Sensor Input # 2 Circuit – shorted low Yellow
299 Engine Shutdown Commanded by J1939 Yellow
311 Injector Solenoid Valve Cylinder #1 Circuit – grounded circuit Yellow
312 Injector Solenoid Valve Cylinder #5 Circuit – grounded circuit Yellow
313 Injector Solenoid Valve Cylinder #3 Circuit – grounded circuit Yellow
314 Injector Solenoid Valve Cylinder #6 Circuit - grounded circuit Yellow
315 Injector Solenoid Valve Cylinder #2 Circuit – grounded circuit Yellow
319 Real Time Clock - Power Interrupt Maint.
341 Engine Control Module – data lost Yellow
343 Engine Control Module – Warning internal hardware failure Yellow
346 Engine Control Module – Warning Software error Yellow
349 Transmission Output Shaft (Tailshaft) Speed High – Warning Yellow
352 Sensor Supply Voltage #1 Circuit - shorted low Yellow
378 Fueling Actuator #1 Circuit - open circuit Yellow
379 Fueling Actuator #1 Circuit – grounded circuit Yellow
386
Sensor Supply Voltage #1 Circuit - shorted high
Yellow
387
Accelerator Pedal Position Sensor Supply Voltage Circuit - shorted high
Yellow
394
Timing Actuator #1 Circuit - open circuit
Yellow
395
Timing Actuator #1 Circuit – grounded circuit
Yellow
396
Fueling Actuator #2 Circuit - open circuit
Yellow
