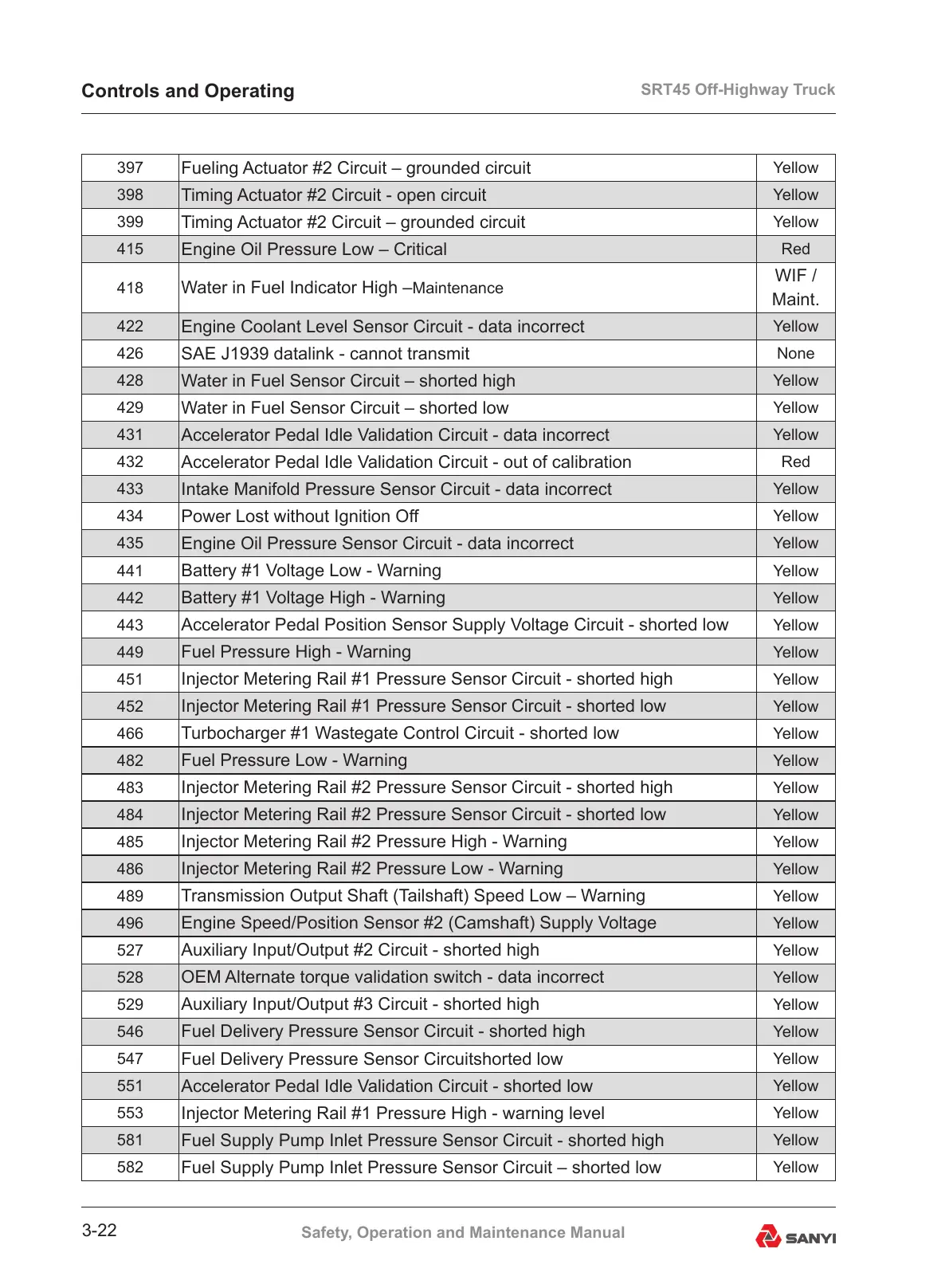

397
Fueling Actuator #2 Circuit – grounded circuit
Yellow
398
Timing Actuator #2 Circuit - open circuit
Yellow
399
Timing Actuator #2 Circuit – grounded circuit
Yellow
415
Engine Oil Pressure Low – Critical
Red
418
Water in Fuel Indicator High –
Maintenance
WIF /
Maint.
422
Engine Coolant Level Sensor Circuit - data incorrect
Yellow
426
SAE J1939 datalink - cannot transmit
None
428
Water in Fuel Sensor Circuit – shorted high
Yellow
429
Water in Fuel Sensor Circuit – shorted low
Yellow
431
Accelerator Pedal Idle Validation Circuit - data incorrect
Yellow
432
Accelerator Pedal Idle Validation Circuit - out of calibration
Red
433
Intake Manifold Pressure Sensor Circuit - data incorrect
Yellow
434
Power Lost without Ignition Off
Yellow
435
Engine Oil Pressure Sensor Circuit - data incorrect
Yellow
441
Battery #1 Voltage Low - Warning
Yellow
442
Battery #1 Voltage High - Warning
Yellow
443
Accelerator Pedal Position Sensor Supply Voltage Circuit - shorted low
Yellow
449
Fuel Pressure High - Warning
Yellow
451
Injector Metering Rail #1 Pressure Sensor Circuit - shorted high
Yellow
452
Injector Metering Rail #1 Pressure Sensor Circuit - shorted low
Yellow
466
Turbocharger #1 Wastegate Control Circuit - shorted low
Yellow
482
Fuel Pressure Low - Warning
Yellow
483
Injector Metering Rail #2 Pressure Sensor Circuit - shorted high
Yellow
484
Injector Metering Rail #2 Pressure Sensor Circuit - shorted low
Yellow
485
Injector Metering Rail #2 Pressure High - Warning
Yellow
486
Injector Metering Rail #2 Pressure Low - Warning
Yellow
489
Transmission Output Shaft (Tailshaft) Speed Low – Warning
Yellow
496
Engine Speed/Position Sensor #2 (Camshaft) Supply Voltage
Yellow
527
Auxiliary Input/Output #2 Circuit - shorted high
Yellow
528
OEM Alternate torque validation switch - data incorrect
Yellow
529
Auxiliary Input/Output #3 Circuit - shorted high
Yellow
546
Fuel Delivery Pressure Sensor Circuit - shorted high
Yellow
547
Fuel Delivery Pressure Sensor Circuitshorted low
Yellow
551
Accelerator Pedal Idle Validation Circuit - shorted low
Yellow
553
Injector Metering Rail #1 Pressure High - warning level
Yellow
581
Fuel Supply Pump Inlet Pressure Sensor Circuit - shorted high
Yellow
582
Fuel Supply Pump Inlet Pressure Sensor Circuit – shorted low
Yellow
