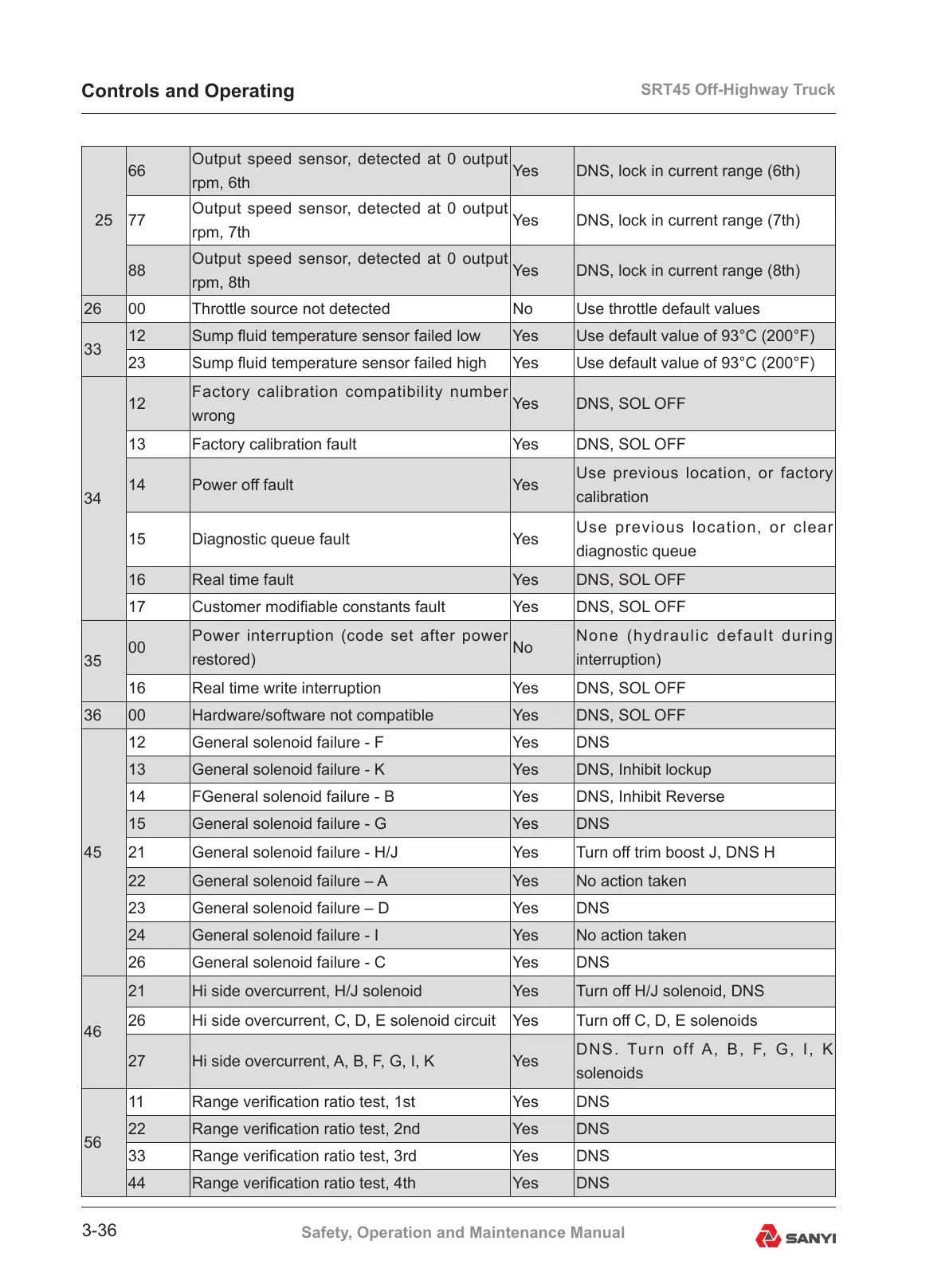

SANY SRT45 - Page 122

SRT45 Off-Highway Truck
3-36
Safety, Operation and Maintenance Manual
25
66
Output speed sensor, detected at 0 output
rpm, 6th
Yes DNS, lock in current range (6th)
77
Output speed sensor, detected at 0 output
rpm, 7th
Yes DNS, lock in current range (7th)
88
Output speed sensor, detected at 0 output
rpm, 8th
Yes DNS, lock in current range (8th)
26 00 Throttle source not detected No Use throttle default values
33
12 Sump uid temperature sensor failed low Yes Use default value of 93°C (200°F)
23 Sump uid temperature sensor failed high Yes Use default value of 93°C (200°F)
34
12
Factory calibration compatibility number
wrong
Yes DNS, SOL OFF
13 Factory calibration fault Yes DNS, SOL OFF
14 Power off fault Yes
Use previous location, or factory
calibration
15 Diagnostic queue fault Yes
Use previous location, or clear
diagnostic queue
16 Real time fault Yes DNS, SOL OFF
17 Customer modiable constants fault Yes DNS, SOL OFF
35
00
Power interruption (code set after power
restored)
No
None (hydraulic default during
interruption)
16 Real time write interruption Yes DNS, SOL OFF
36 00 Hardware/software not compatible Yes DNS, SOL OFF
45
12 General solenoid failure - F Yes DNS
13 General solenoid failure - K Yes DNS, Inhibit lockup
14 FGeneral solenoid failure - B Yes DNS, Inhibit Reverse
15 General solenoid failure - G Yes DNS
21 General solenoid failure - H/J Yes Turn off trim boost J, DNS H
22 General solenoid failure – A Yes No action taken
23 General solenoid failure – D Yes DNS
24 General solenoid failure - I Yes No action taken
26 General solenoid failure - C Yes DNS
46
21 Hi side overcurrent, H/J solenoid Yes Turn off H/J solenoid, DNS
26 Hi side overcurrent, C, D, E solenoid circuit Yes Turn off C, D, E solenoids
27 Hi side overcurrent, A, B, F, G, I, K Yes
DN S. Turn off A, B, F, G , I, K
solenoids
56
11 Range verication ratio test, 1st Yes DNS
22 Range verication ratio test, 2nd Yes DNS
33 Range verication ratio test, 3rd Yes DNS
44 Range verication ratio test, 4th Yes DNS
