Using the Remote Operator
The Remote Operator can be used to configure and test the amplifier. There are five
modes of operation: Parameter Set, Parameter Select, Monitor, Alarm Trace, and Test.
Para. Set The 4 parameters that allow the operator to enter a value are in this mode.
Para. Select There are 9 parameters where the operator can choose between several
factory options. These parameters are contained in the parameter select
mode.
Monitor The monitor mode is used to view internal values, and the state of inputs
and outputs.
Alarm Trace In the Alarm Trace mode, the operator can review the current and
previous 7 alarms.
Test In the test mode, the operator can jog the servomotor and run the
auto-tuning algorithm.

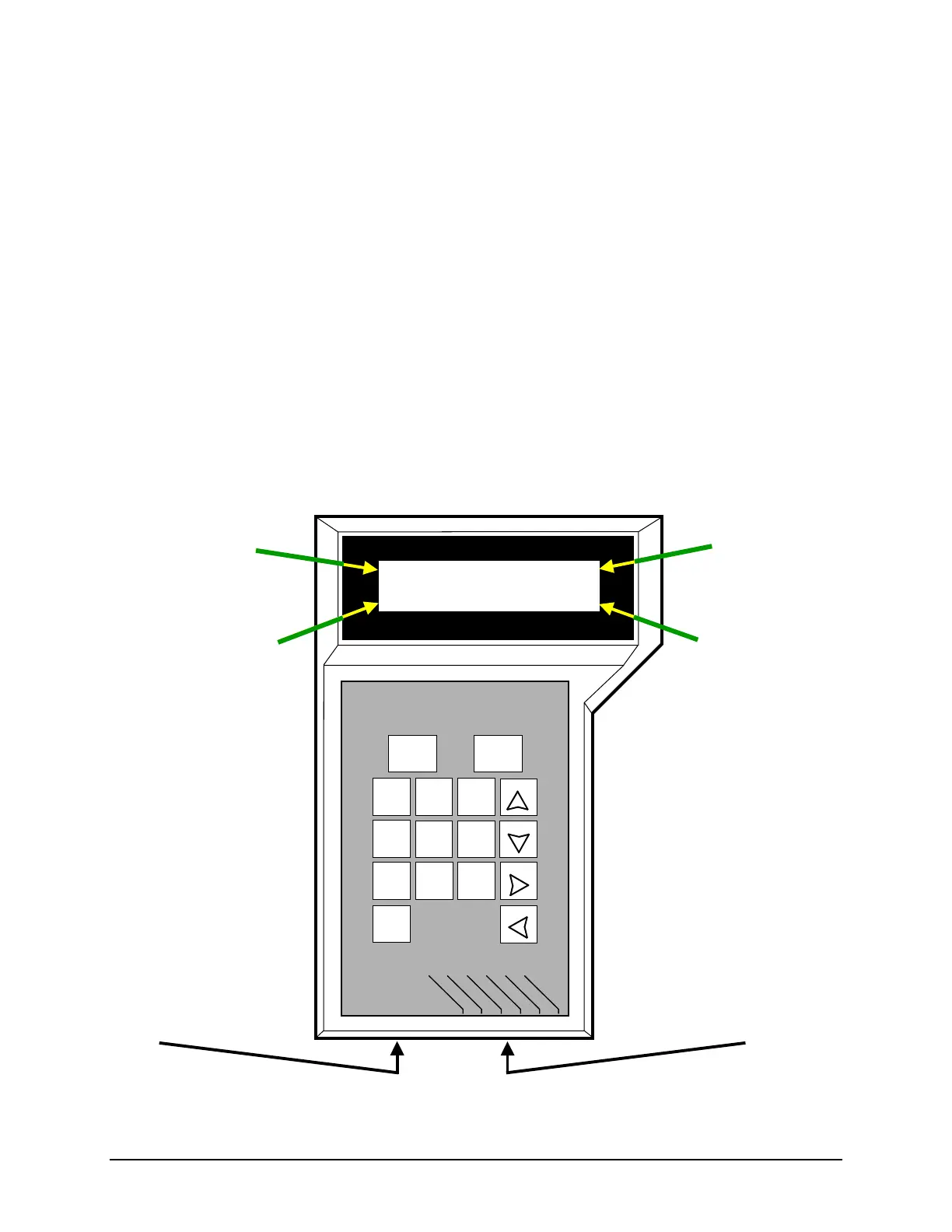

Overview
*XXXXX yy
zzzzzz ####
SANYO DENKI
REMOTE OPERATOR
CN1
DM1
D
M
2
SG
M1 M2
V
C
MD
7
4
D
1
A
0
2
B
5
E
8
3
C
6
F
9
MODE
WR
ON
Mode
Page
Parameter
Value
Parameter
Name
Test Points for
Meter or Oscilloscope
Cable
Connector
Before
Inc.
Dec.
Next
