-15-
Mechanical Disassembly
v Optical unit, NETWORK board, Filter board, Temp, Fans, SP901 removal

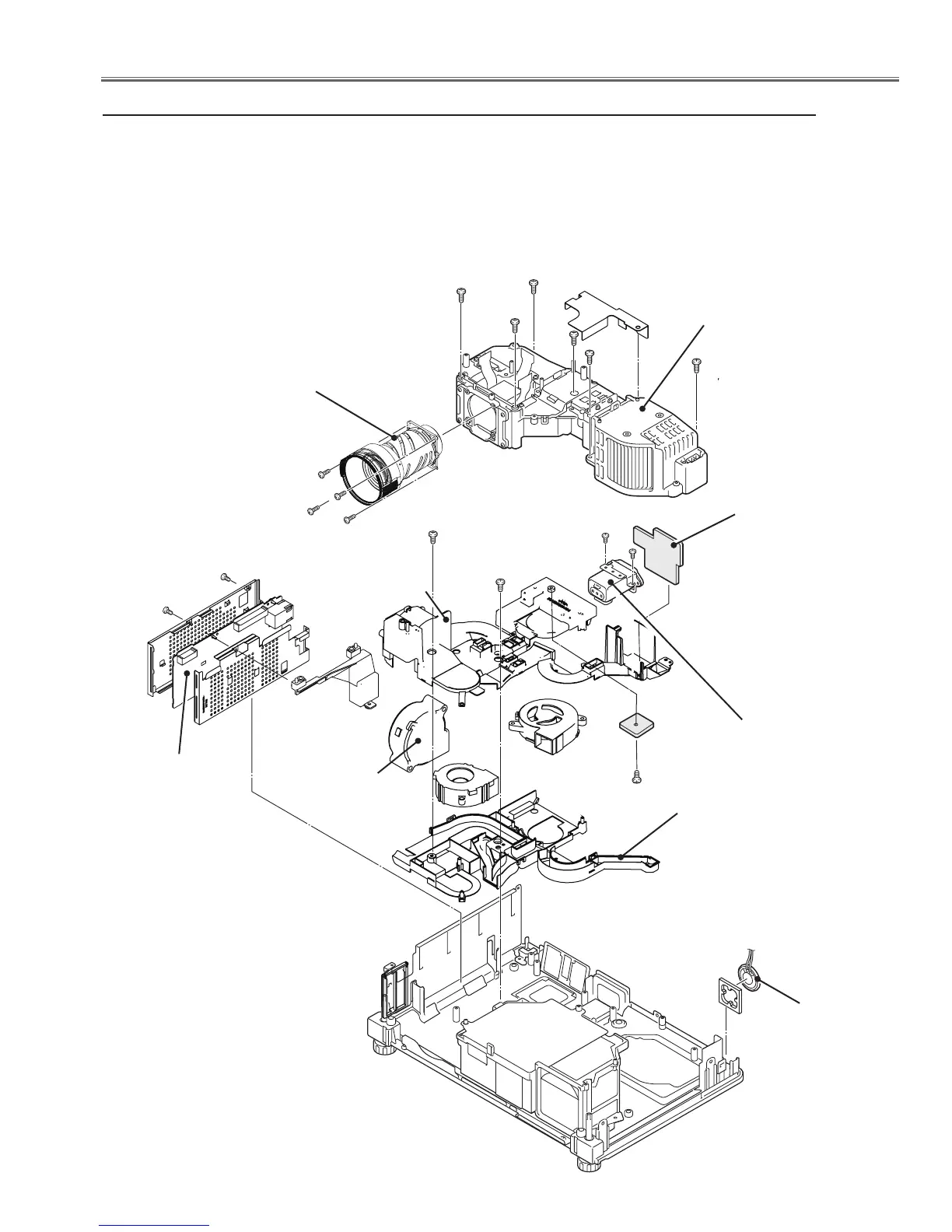

Fig.4
Temp board
SP901
Projection lens
Noise filter
Optical unit
D (T3x6)x2
C (T3x8)x2
(M2.5x8)x4
B (T3x8)x2
E (T3x6)
Filter board
FN904
FN903
FN905
Duct bottom
1. Remove 6 screws A(T3x8) to remove the Optical unit.
2. Remove 2 screws B(T3x8) to remove the Network board.
3. Remove 2 screws C (T3x8) and 4 hooks on the duct and then remove the Duct top.
Remove the filter board.
4. Remove 2 screws D(T3x6) to remove the Noise filter and remove screw E (T3x6)
to Temp board.
5. Remove fans (FN903, FN904, FN905) and SP901.
Duct top
Network board
A(T3x8)x6
A
A
A
A
B
D
C
A
