52
Setting
Picture in Picture
This function is used to project two images simultaneously
by placing a separate small sub screen within or next to the
main screen.
Use the Point  buttons to select Picture in Picture and
then press the SELECT button or the Point  button to
access the submenu.
Only the sound from the source of Main picture is valid,
while the source of Sub picture cannot output the sound. ( In
P in P, the larger picture is main picture, and the smaller one
is sub picture; in P by P, the left picture is main picture, and
the right one is sub picture.)
Select the Picture in Pictrue mode among P in P, P by P and
Off
P in P : Provide the images of Main picture and Sub picture
at the ratio of Screen aspect in the Screen Menu.
P by P: Provide the images of Main picture and Sub picture
at the ratio of 4:3.
Off
:
Turn off the Picture in Picture function.

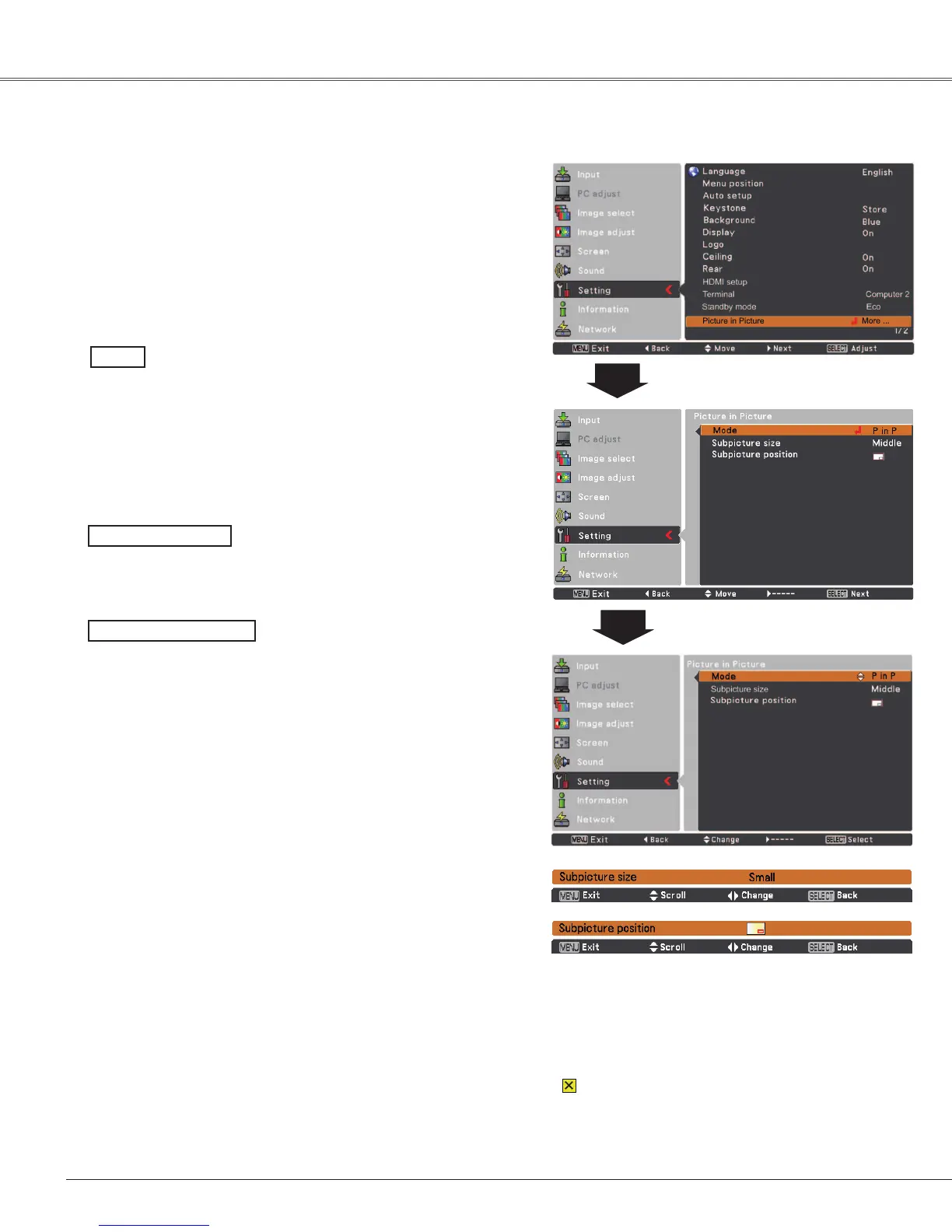

Press the Point  buttons to change the Subpicture size
among Small, Middle and Large.
Adjust the Subpicture position.
Press the Point  buttons to change the Subpicture
position.
Selecting the sub picture
During Picture in Picture mode, and being undisplayed
On Screen Menu, press the SELECT button to select Sub
picture. (A red frame will be displayed on the selected
picture.)
Switching Input Source
When Main picture or Sub picture is selected, input source
can be set by pressing the INPUT button on the top control
or COMPUTER1/2 or HDMI buttons on the remote control.
Picture in Picture
Mode
Subpicture size
Subpicture position
P
Note:
• The Picture in Picture function is not
available depending on the input signals and
the selected input terminals. Refer to List of
Picture in Picture for details. (p.76)
• When the input signal(s) is/are incompatible,
mark will be displayed on the Main/Sub
picture.
Subpicture size and Subpicture position
works only under P in P mode.
