 Kensington Security Slot
Thisslotisfora Kensingtonlockusedtodeter
theftoftheprojector.
 * KensingtonisaregisteredtrademarkofACCOBrands
Corporation.
Bottom
Back

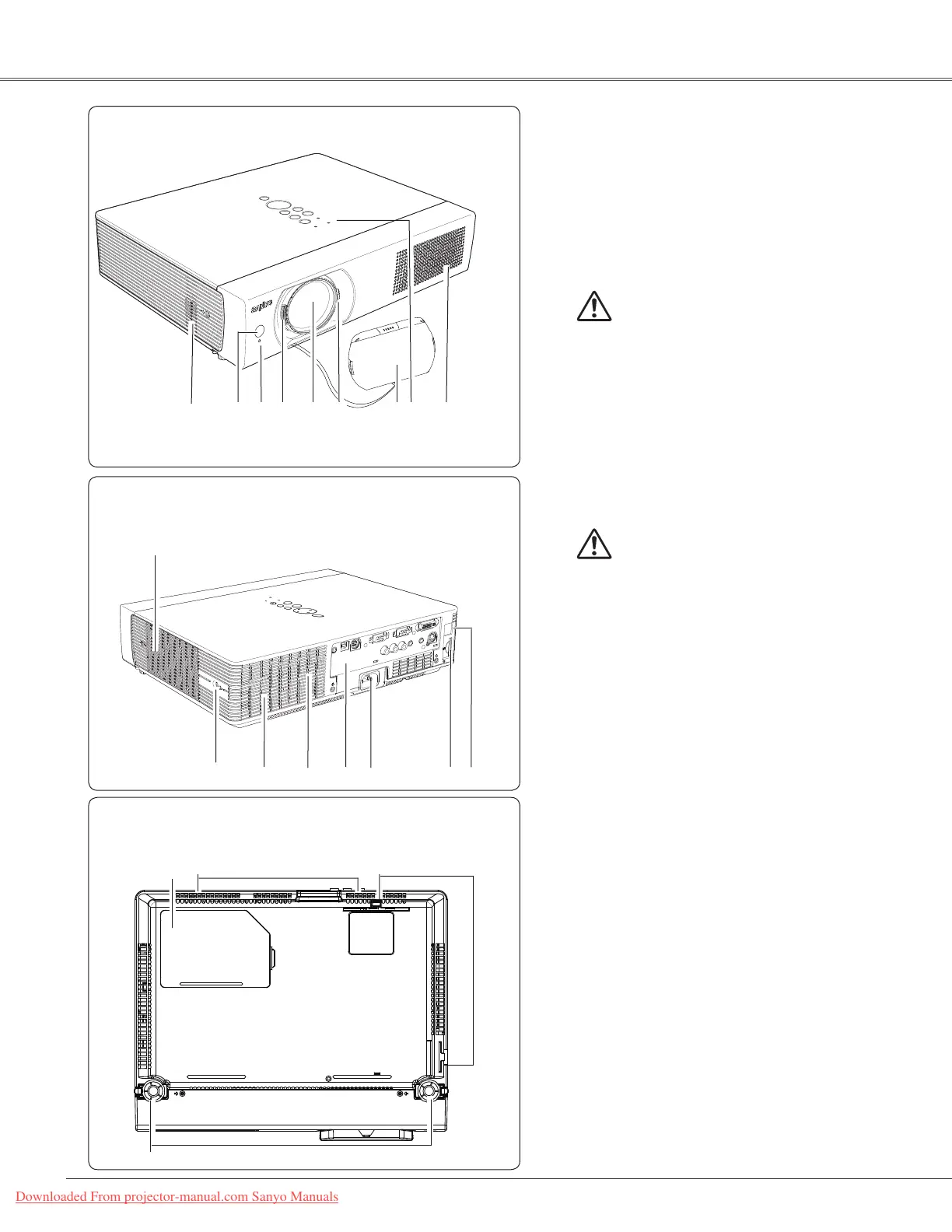

① Infrared Remote Receiver
② WIRELESS Indicator
③ Focus Ring
④ Projection Lens
⑤ Zoom Lever
⑥ Lens Cap
⑦ Top Controls and Indicators
⑧ Air Intake Vent
⑨ Exhaust vent
⑩ Speaker
⑪ Air Intake Vent (back and bottom)
⑫ Terminals and Connectors
⑬ Power Cord Connector
⑭ SD Card Slot
⑮ LAN Connection Terminal
⑯ Lamp Cover
⑰ Filters
⑱ Adjustable Feet
⑯
⑮⑭⑬⑪
CAUTION
Hot air is exhausted from the exhaust
vents. Do not put heat-sensitive objects
nearthisside.

Part Names and Functions
⑫
⑰
⑨
⑩
⑪

Note:
② WIRELESS Indicator and ⑮ LAN
Connection Terminal are for the
Network function. Refer to the
owner’s manual “Network Set-up and
Operation”.
⑭ SD Card Slot is for the Memory
Viewer function. Refer to the owner's
manual "Memory Viewer fuction".
CAUTION
Do not turn on a projector with lens cap
attached. High temperature from light
beammaydamagelenscapandresultin
firehazard.
Front
⑱
⑥③ ④ ⑤① ⑦ ⑧②
⑧
Downloaded From projector-manual.com Sanyo Manuals

Sanyo PLC-XU115 Specifications

General

Projection distance	0.93/11.47 m
Vertical scan range	50 - 100 Hz
Horizontal scan range	15 - 100 kHz
Projection technology	LCD
Contrast ratio (typical)	500:1
Projector native resolution	XGA (1024x768)
Keystone correction, vertical	-40 - 40 °
I/O ports	SD Card Slot
Audio input	1
Aspect ratio	4:3
Special features	Soft Carry Bag
Networking features	Ethernet & Wireless
F-number (relative aperture)	1.7
Lamp type	NSH
Lamp power	275 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Dot clock scanning frequency	140 MHz
Analog signal format system	NTSC, PAL, SECAM
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Power consumption (typical)	266 W

Weight and Dimensions

Package weight	3500 g
