16 Operating Instructions Combics Indicators

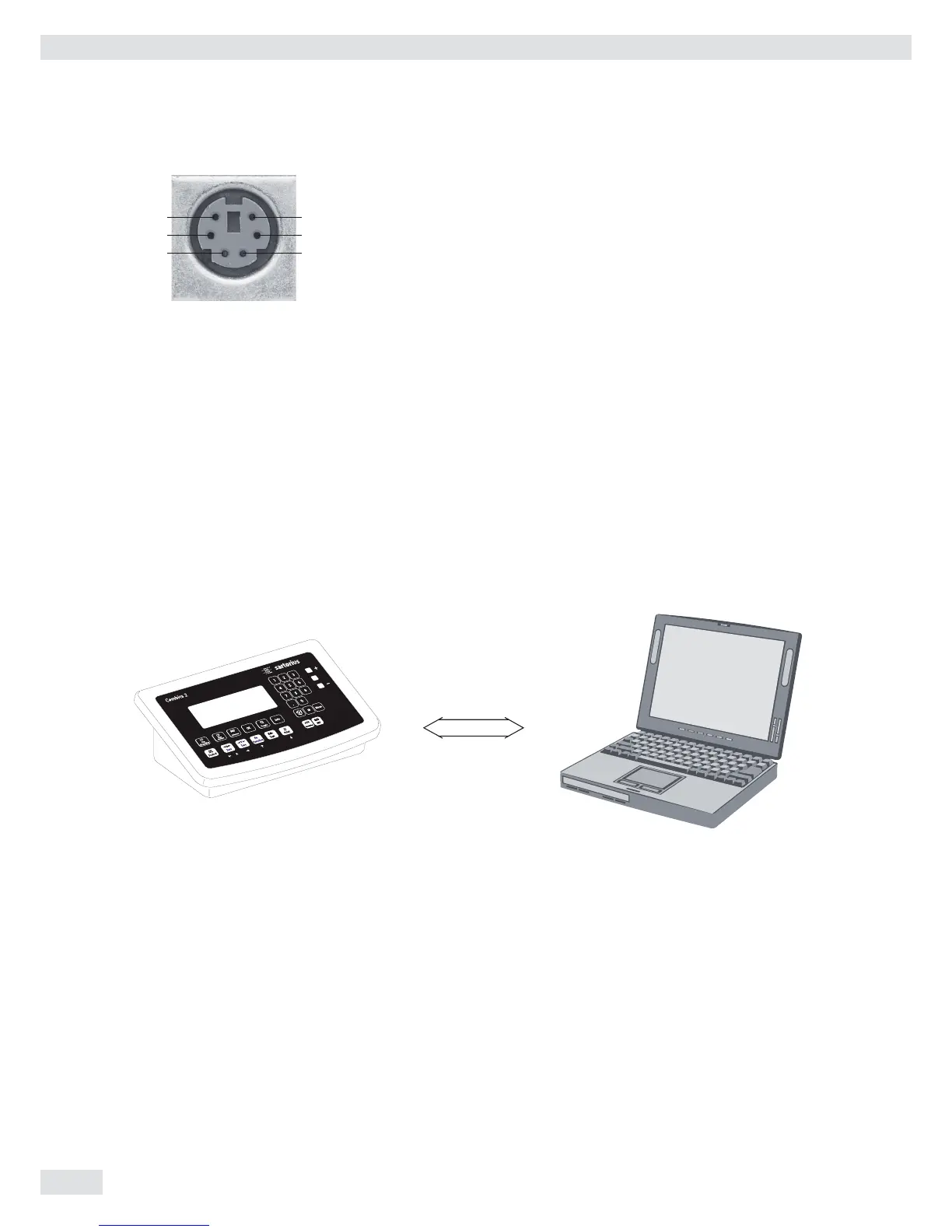

PS/2 socket pin assignment on Combics 2

Pin 1: Keyboard data (data interface cable)

Pin 2: Not assigned

Pin 3: GND (ground)

Pin 4: 5V switched

Pin 5: Keyboard clock

Pin 6: Not assigned

Connecting an IS Weighing Platform to a Combics 2

You can connect an IS weighing platform to WP2.

Features – IS weighing platforms process weighing data independently of the indicator.

– Internal calibration/adjustment option

– IS...-0CE models: have a separate approval number, printed on a tag that is

afﬁ xed to the cable.

– Please observe the conditions described in the manual for the weighing platform

you connect.

Cabling Diagram - Connection to a PC

Use the following cables to connect a PC to the indicator in accordance with the

RS-232C/V24 standard (max. cable length 15 m):

Models CAW1P, CAW2P: connecting cable 7357312

Models CAW1S, CAW2S: connecting cable YCC02-D9F6

V24

NOTE: This equipment has been tested and found to comply with the limits pursuant to part

15 of FCC Rules. These limits are designed to provide reasonable protection against harmful

interference. This equipment generates, uses and can radiate radio frequency energy and, if

not installed and used in accordance with these instructions, may cause harmful interference

to radio communications. For information on the speciﬁc limits and class of this equipment,

please refer to the Declaration of Conformity. Depending on the particular class, you are either

required or requested to correct the interference. If you have a Class A digital device, you need

to comply with the FCC statement as follows: “Operation of this equipment in a residential

area is likely to cause harmful interference in which case the user will be required to correct the

interference at his own expense.“
