Operating Instructions Combics Indicators 45
Features Which of the following features are available depends on the connected weighing
platform. These features are confi gured in the Setup menu:
– External calibration/adjustment blocked in verifi ed weighing instruments
– External calibration/adjustment with the default weight value or user-defi ned
weight (not available on verifi ed instruments):
setup / wp-1/ param.1 /CAL./ADJ.menu “Calibration, Adjustment."
– Specify the weight for external calibration/adjustment:
setup / wp-1 / param.1 / man.ext.w menu “Entering Calibration Weight"
– Internal adjustment for IS weighing platforms (confi gure under: COM1 or
unicom / WP2), Combics 2
– Block the J key to prevent use of the two functions described above:
setup / wp-1 “Calibration, Adjustment."
– Calibrate fi rst; then adjust automatically or manually (not for verifi ed weighing
instruments): setup / wp-1/ param.1 / Cal.routine"Calibration/Adjustment
sequence"
– Flashing n symbol as adjustment prompt. If more than one weighing
platform is connected, the platform number is also displayed: setup / wp-1
menu Menu item 1.15. “Adjustment prompt"
– Block external calibration/adjustment: setup / wp-1/ param.1 / EXT.Cal.
menu “External calibration."

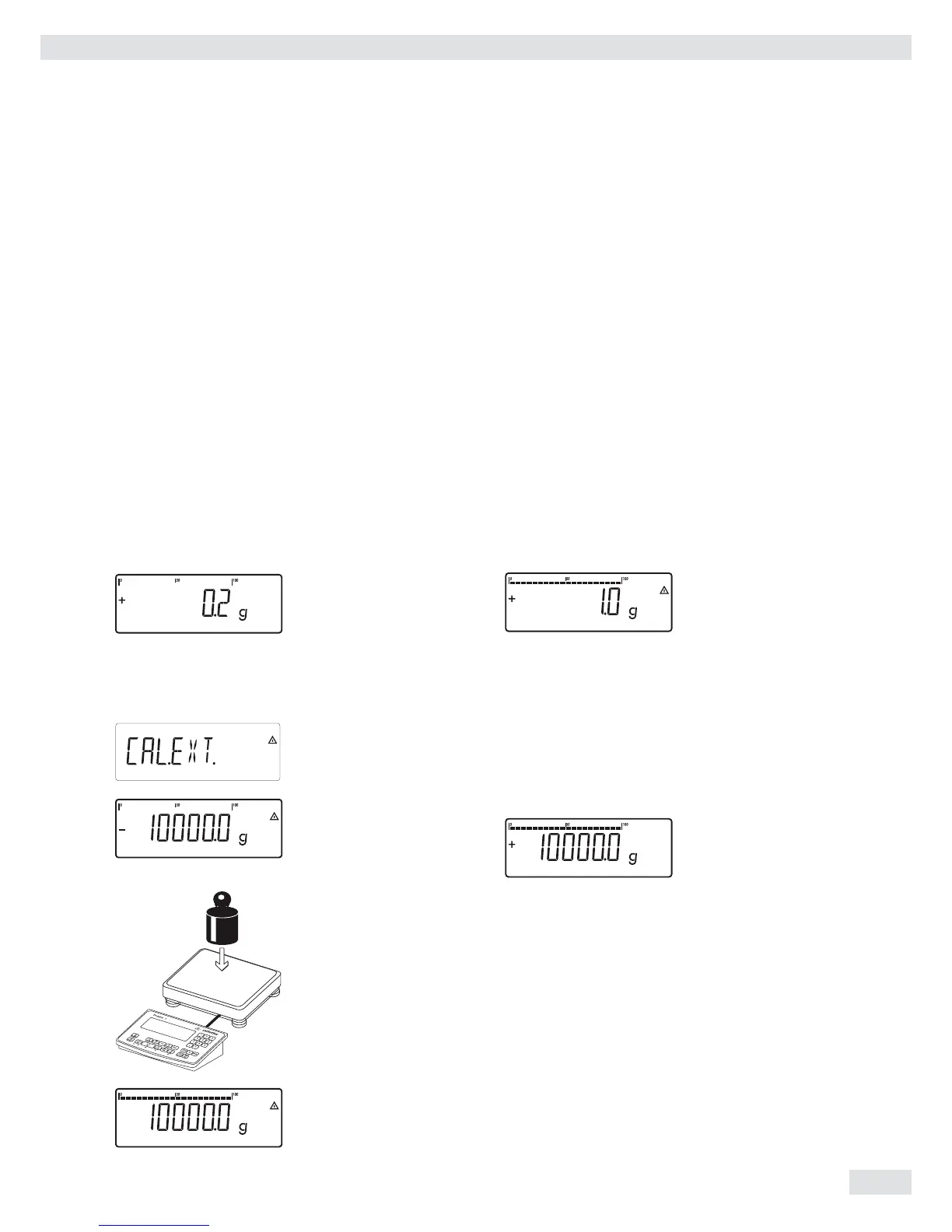

Example: External Calibration and Manual Adjustment with Default Weights (weighing
parameters: factory settings)
Operation
( 1.) Zero the scale.
J 2.) Start calibration
(e.g., when adjustment
prompt fl ashes WP).
cal.Ext. is displayed for
two seconds.
You are prompted to place
the required weight on the
platform (e.g., 10,000 g).
3.) Position the calibration/
adjustment weight on the
weighing platform.
The difference between the
measured value and the
true weight of the sample
will be displayed with plus/
minus signs.
Ext. calibration Printout is generated,
Nom. + 10000 g if the process was cancelled
Diff. + 1 g with (
J 4.) Activate calibration/
adjustment (press the (
key to cancel).
The adjustment weight is
displayed once adjustment
is fi nished.
-------------------- A GMP-compliant printout
24.02.2010 10:15 is generated.
Type CAW2S
Ser.no. 12345678
Vers. 1.0103.11.2
BVers. 01-26-02
--------------------
Ext. calibration
Nom. + 10000 g
Diff. + 1 g
Ext. adjustment
Diff. + 0 g
--------------------
24.02.2010 10:15
Name:
--------------------
