Sartorius Cubis Series Operating Instructions

66 Cubis MSE Operating Instructions
Data Interfaces
Pin Assignment Chart
“Peripherals” Interface and Optional RS-232 Interface
(25-pin)

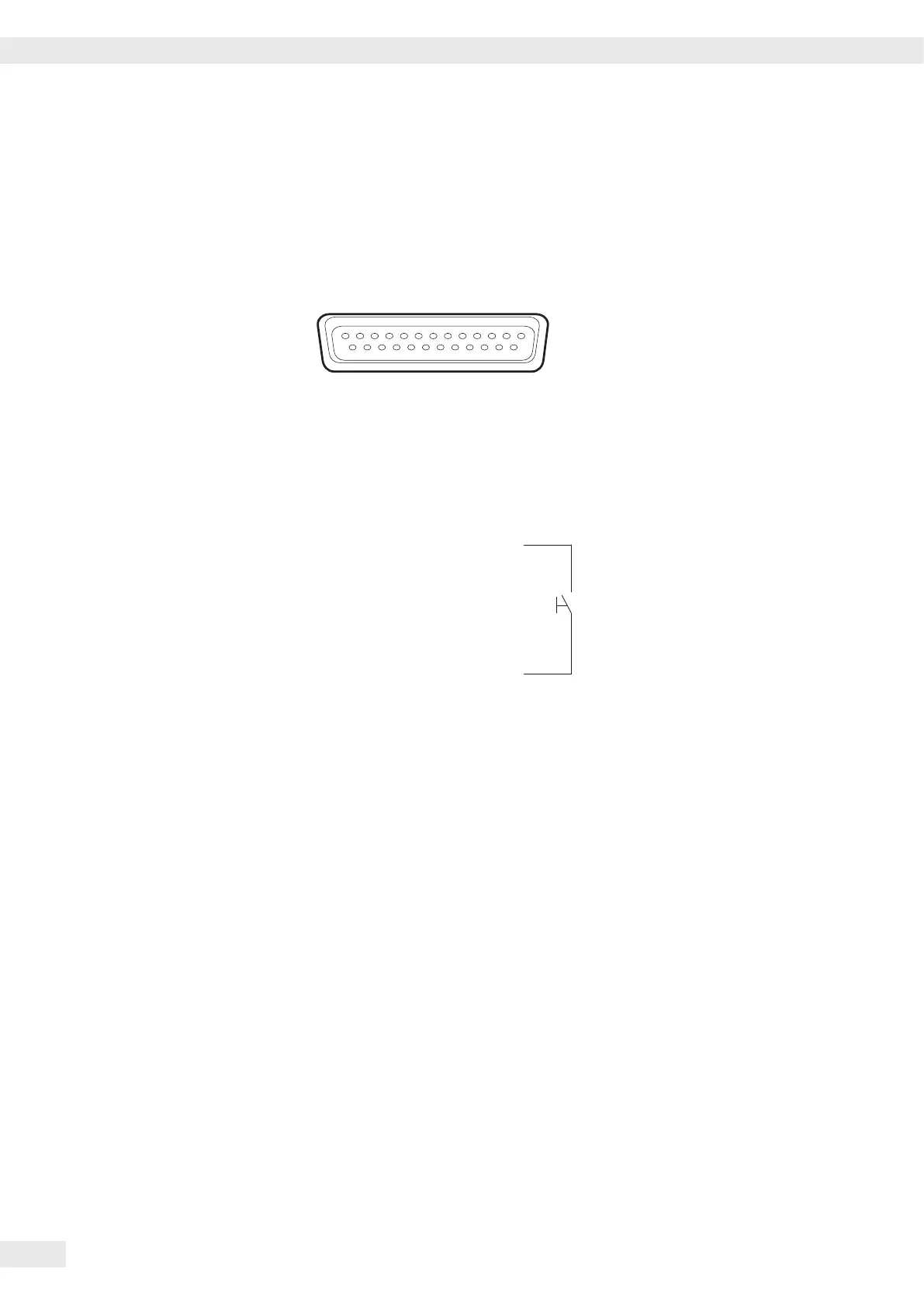

Female Interface Connector:
1
14
13
25
Pin Assignment Chart, 25-pin socket, RS-232:
Pin 1: Signal ground
Pin 2: Data output (TxD)
Pin 3: Data input (RxD)
Pin 4: Internal ground (GND)
Pin 5: Clear to send (CTS)
Pin 6: Not used
Pin 7: Internal ground (GND)
Pin 8: Internal ground (GND)
Pin 9: Not used
Pin 10: Not used
Pin 11: + 12 V output For remote
Pin 12: Reset _ Out*) switch
Pin 13: + 5 V output
Pin 14: Internal ground (GND)
Pin 15: Universal switch
Pin 16: Not used
Pin 17: Not used
Pin 18: Not used
Pin 19: Not used
Pin 20: Data terminal ready (DTR)
Pin 21: No function
Pin 22: No function
Pin 23: No function
Pin 24: No function
Pin 25: + 5 V output
*) = Hardware restart
Preparation
You can set these parameters for other devices in the Setup menu:
See “Configuration�”
The many and versatile properties of these balances can be fully utilized for
printing out records of the results when you connect your balance to a Sartorius
data printer�
The recording capability for printouts makes it easy for you to work in compliance
with GLP�

Sartorius Cubis Series Specifications

General

Display	Color touch screen
Readability	0.01 mg to 1 g
Interfaces	USB, Ethernet, RS-232
Calibration	Internal and external
Housing	Die-cast aluminum
Response Time	Varies by model
Pan Size	Varies by model
Operating Temperature	10°C to 30°C
Compliance	GLP
Power Supply	100 – 240 V, 50/60 Hz
Capacity	Varies by model (up to 64 kg)
Repeatability	Varies by model
Linearity	Varies by model
