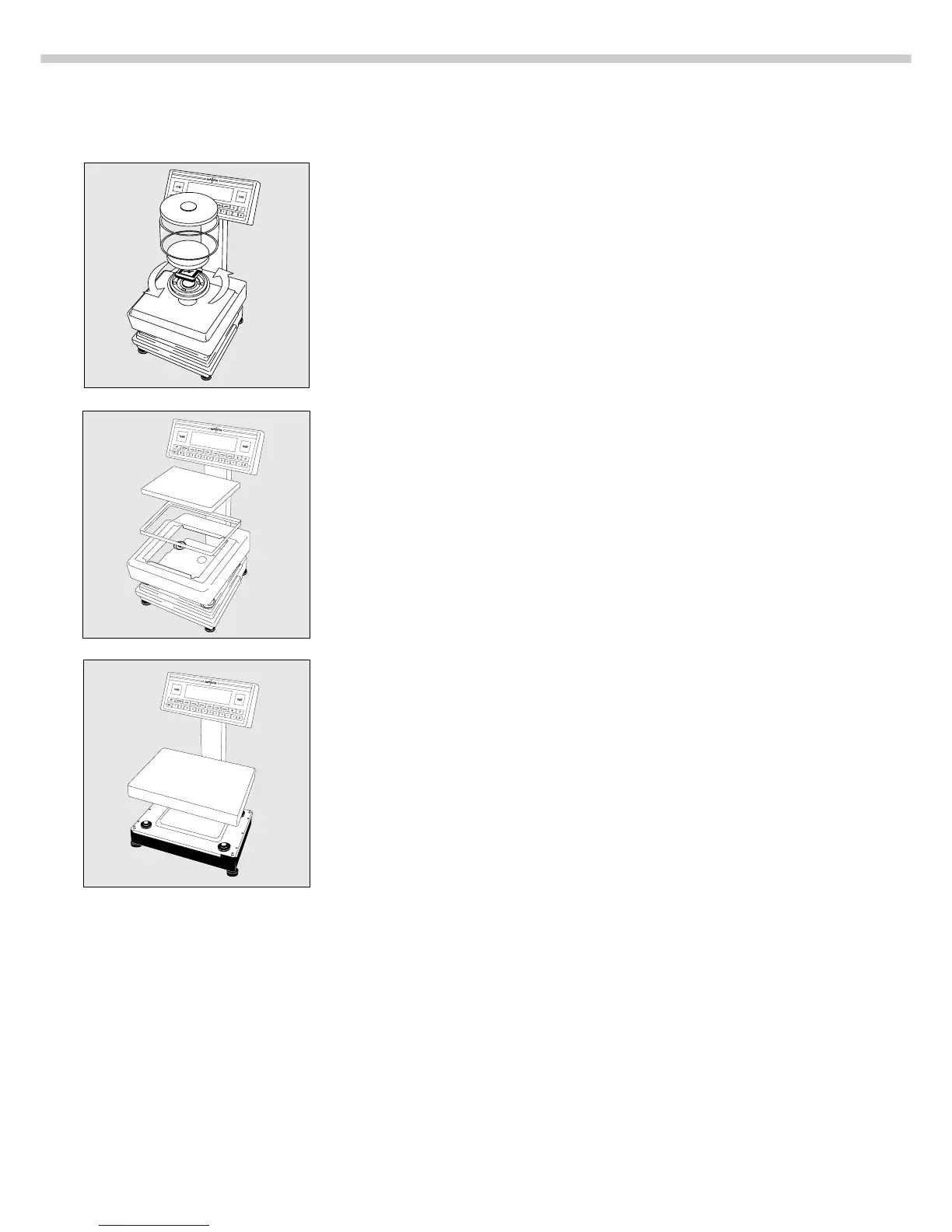

Preparing the Scale
FC06BBE-S
§ Place the components listed below on the scale in the order given:
– Dust cover
– Protective disk; turn counter-clockwise until it stops and is secure
– Pan support
– Weighing pan
– Glass draft shield cylinder
– Draft shield cover
FC6CCE-H, FC2CCE-S, FC12CCE-S, FC6CCE-S
§ Place the components listed below on the scale in the order given:
– Dust cover (remove the protective foil from the adhesive strip)
– Pan draft shield (depending on the scale model)
– Weighing pan
FC34EDE-P, FC16EDE-S, FC12EDE-P, FC64EDE-S
§ Place the weighing pan on the scale
