3
Operating Design
Keys
Your Factory scale is operated either
through the keys on the display and
control unit or via a connected PC.
Operation through the scale keys is
described in the following.

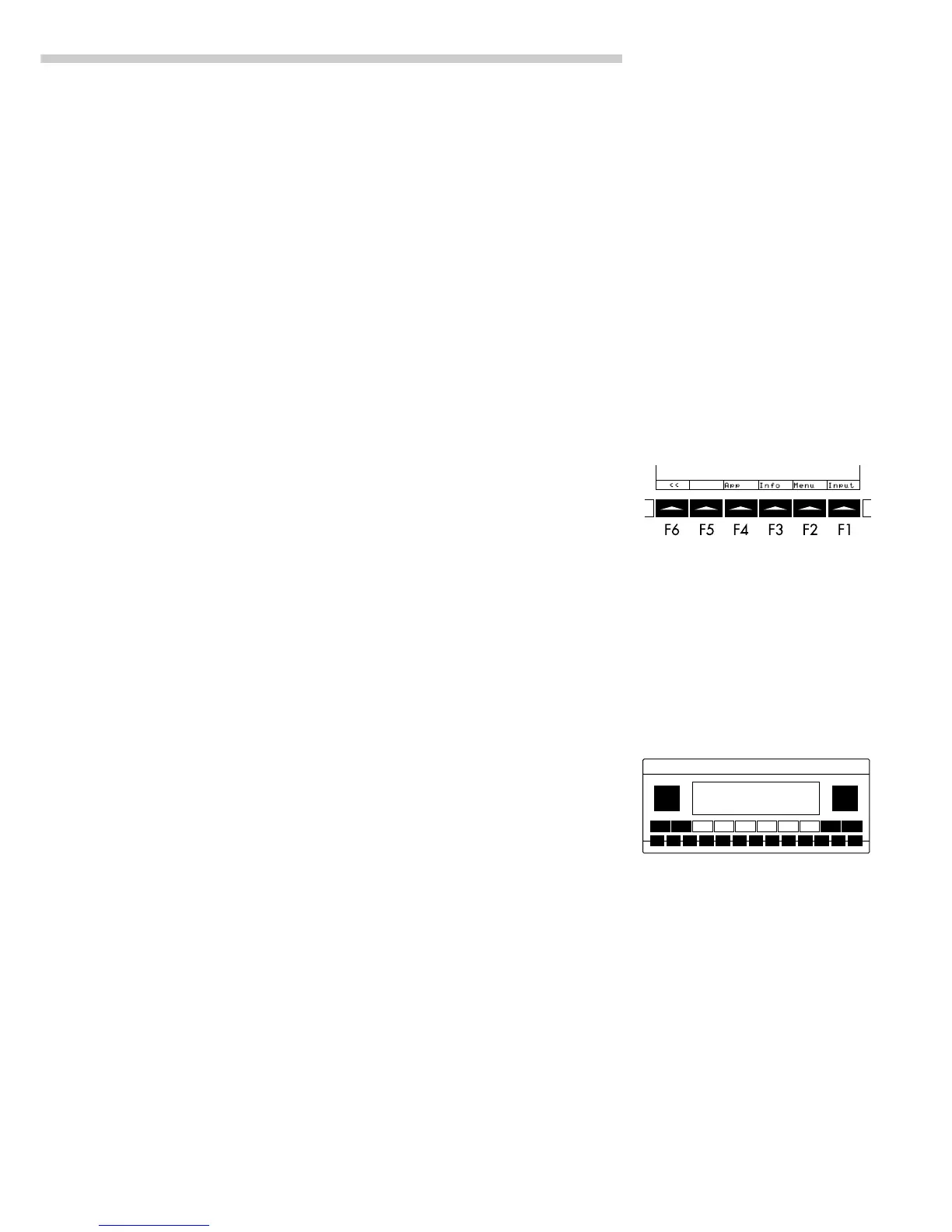

Function Keys (Soft Keys)
The current function of a soft key
is indicated in the bottom line of
the display. (In the example shown
below, oo: Exit the setup menu
App: Application menu
Info: Scale data
Menu: Scale operating menu
Input: User data input)
The function keys are numbered F1
through F6, from right to left.
Labeled Keys
These keys always have the function
indicated, but are not available at
all times. Availability of these
functions depends on the current
operating status and menu settings.
Operating Design
The scales in the Factory Series
consist of a weighing cell and
a display and control unit. In
addition to the choice of power
supply (via AC adapter or external
rechargeable battery pack), your
scale also has an interface port
for connecting a printer, computer or
universal remote control switch.
The display and control unit and the
weighing cell can be set up
separately. Operation of Factory
scales follows a uniform “philosophy”
which is described in this manual.
Where not expressly indicated
otherwise, the uses described
in this manual apply to verified and
verifiable scale versions
(indicated by the suffix “-0CE” in
the model number), as well as the
standard version.
Combining Applications
You can combine the use of various
application programs to meet your
more complicated requirements.
Press the k/[TOGGLE] key to select
the desired application programs.
Safety Precautions
This scale has been constructed
in accordance with the European
Directives as well as international
regulations and standards for
operation of electrical equipment,
electromagnetic compatibility, and
stipulated safety requirements.
Improper use or handling, however,
can result in damage and/or injury.
Read these operating instructions
thoroughly before using your
scale to prevent damage to the
equipment. Keep these instructions
in a safe place.
Follow the instructions below
to ensure safe and trouble-free
operation of your scale:
! Do not use this scale in
a hazardous area/location
! Make sure that the voltage rating
printed on the AC adapter is
identical to your local line voltage
– The only way to switch the power
off completely is to disconnect
the AC adapter
– The scale housing is protected
as listed below against dust
deposits and water splashes –
the housing is not completely
dust-tight, however.
– FC…EDE models:
IP 65 protection
– Scales with a capacity ≤12 kg:
IP 54 protection
– Protect the AC adapter from
contact with liquid.
– Connect only Sartorius accesso-
ries and options, as these are
optimally designed for use with
your Factory scale.
Do not open the scale housing.
If the seal is broken, this will result in
forfeiture of all claims under the
manufacturer’s warranty.
In case you have any problems with
your scale:
$ contact your local Sartorius
office, dealer or service center
