Adjusting the Exterior Draft Shield Element

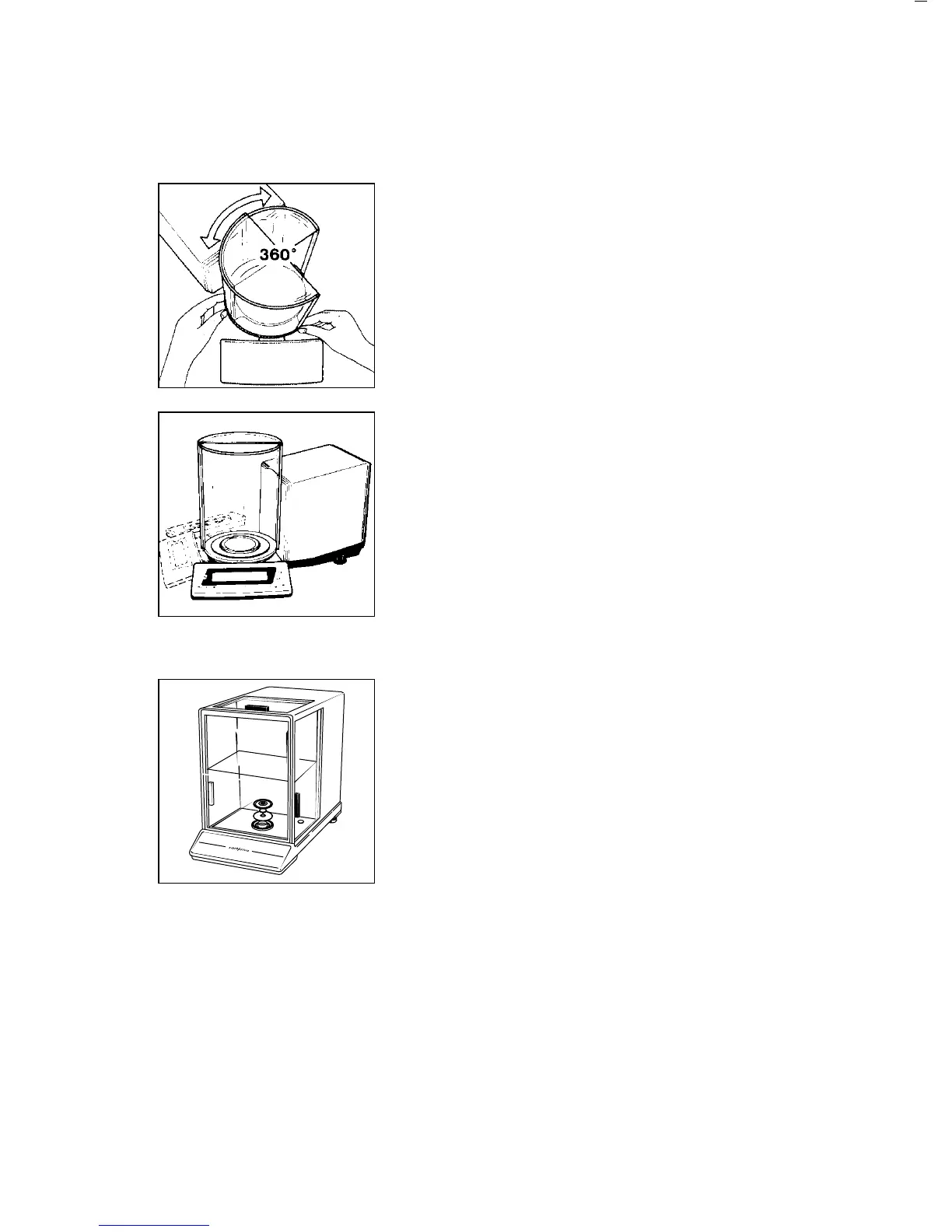

Turn the exterior draft shield element (3) by the riffled
part on the bottom to the position you desire.
Depending on your application, you can define
the menu code so that the interior draft shield door (4)
is operated by motor or by hand (see section
starting on page 1–21).
Adjusting the Swivel-Mounted Display Unit
Move the swivel-mounted display unit (11) around
the base of the draft shield to adjust it to the position
you desire (+/– 85°).
MC 21S:
Installing the Components
§ Place the following components on the balance in
the order given below:
– Shield plate
– Weighing pan
Note: To position the weighing pan, rotate it back
and forth while pressing down gently.
– Protective ring
– Glass plate
1–11
