MC 5 (-0CE) and SC 2 (-0CE):
Assembling the Components

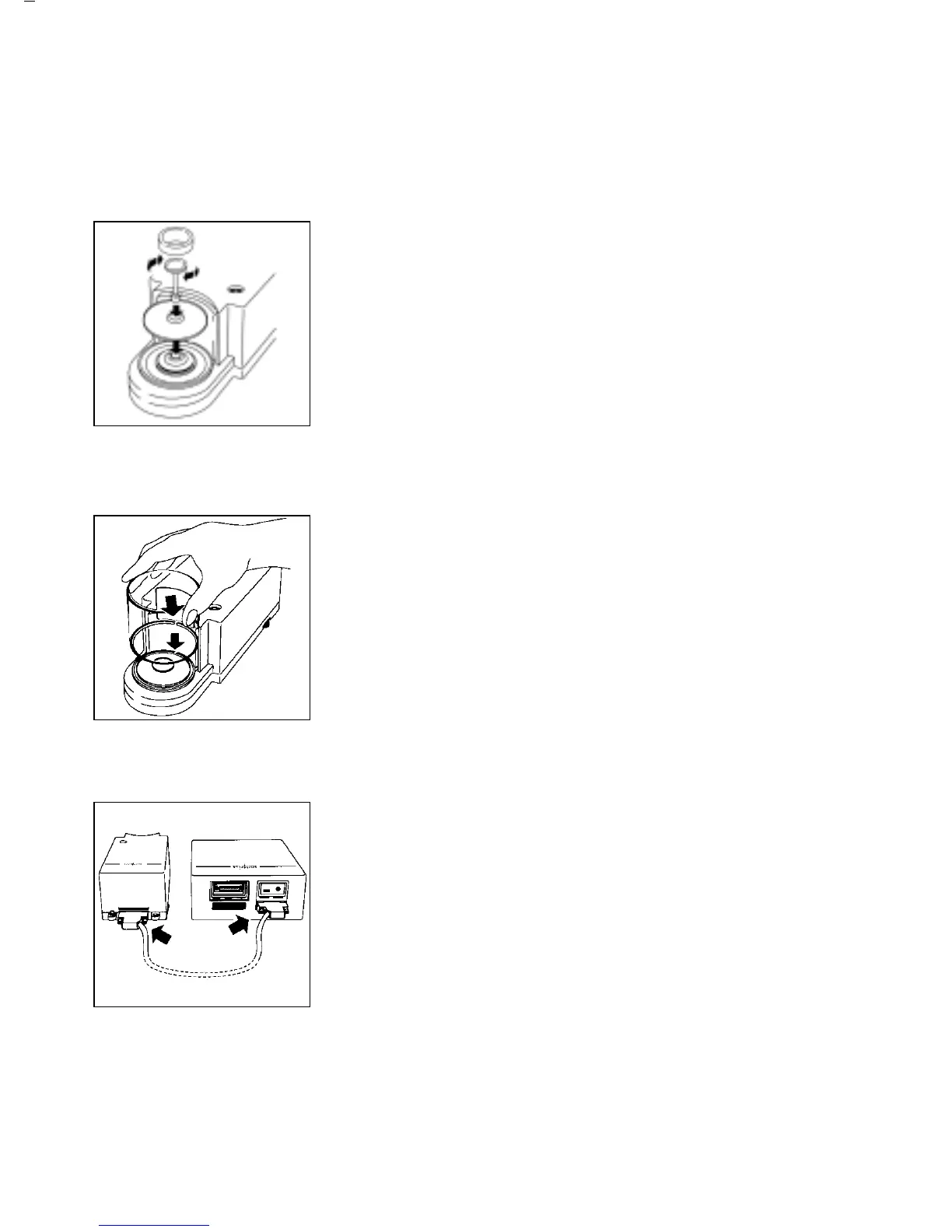

§ Place the components listed below on the
weighing cell (35) one at a time in the order given:
– Protective disk (8)
– Weighing pan (7)
Important Note: After placing the weighing pan
on the weighing cell, press down on it gently while
turning it slightly to the left and right.
– Inner draft shield (36) (models SC 2 and
SC 2-0CE only)
Installing and Adjusting the Draft Shield
– Place the small draft shield (34) on the weighing cell
and adjust it so that the gap fits over the projection
on the weighing cell (see arrows).
Connecting the Weighing Cell
to the Computing Device
Connect these two units so that the two points
where the connecting cable is attached to the female
connectors face each other (see arrows).
Tighten the screws on the female connectors by hand.
1–12
