47
• a 128-bit binary string composed of 128 binary variables ExtInd1…ExtInd128 of type
BOOLEAN called external indication and intended for mapping single-point BOOLEAN
and integer elements and double-point Dbpos data;
• 32 variables ExtiVal1…ExtiVal32 of type INT32 for mapping signed and unsigned
integer numbers of any size;
• 32 variables ExtfVal1…ExtfVal32 of type FLOAT32 for mapping single-precision floating
point numbers.
When the subscriber receives GOOSE message updates, the subscribed data is copied to the
internal variables that can be monitored and recorded in the device like any other measured
value. When the subscriber does not receive updates, or the declared message live time has
expired, or the data set differs from the subscriber setup, the internal variables are zeroed
and the non-active status is indicated in the subscription status.
The subscription status can be monitored from an IEC 61850 client via the GOOSE subscriber
logical nodes CTRL/sbsLGOS1-CTRL/sbsLGOS20, or from a Modbus client application via the
GOOSE subscriber status register (see the PM180 Modbus Reference Guide for the register
location).

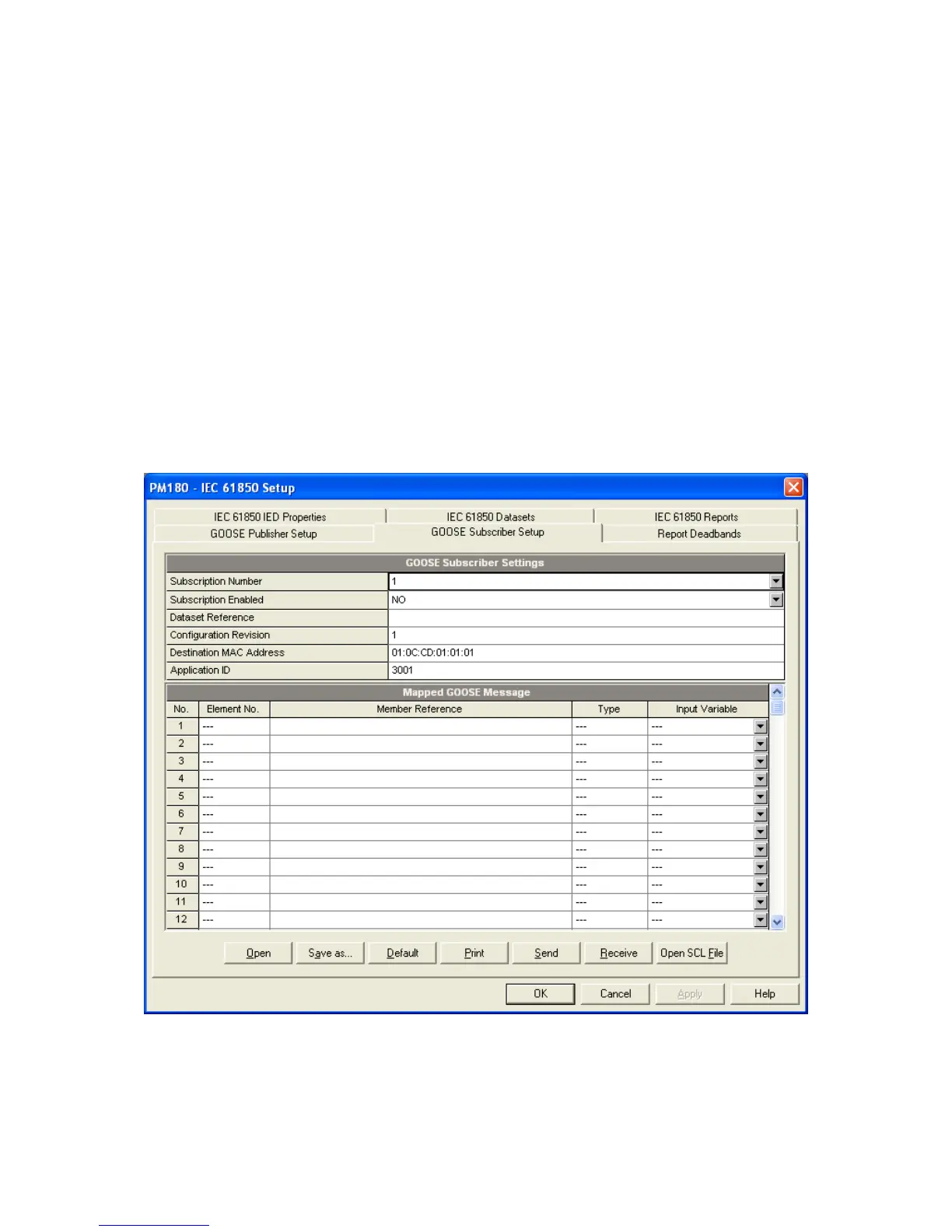

To configure the GOOSE subscriber:
1. Select IEC 61850 Setup from the Meter Setup menu, and then click on the GOOSE
Subscriber Setup tab.
2. In the Subscription Number box, select the subscription you wish to configure.
3. Click the “Open SCL File” button and open an ICD or CID file for the publishing device
you wish to subscribe to. PAS shows you a list of all datasets linked to GOOSE publisher
