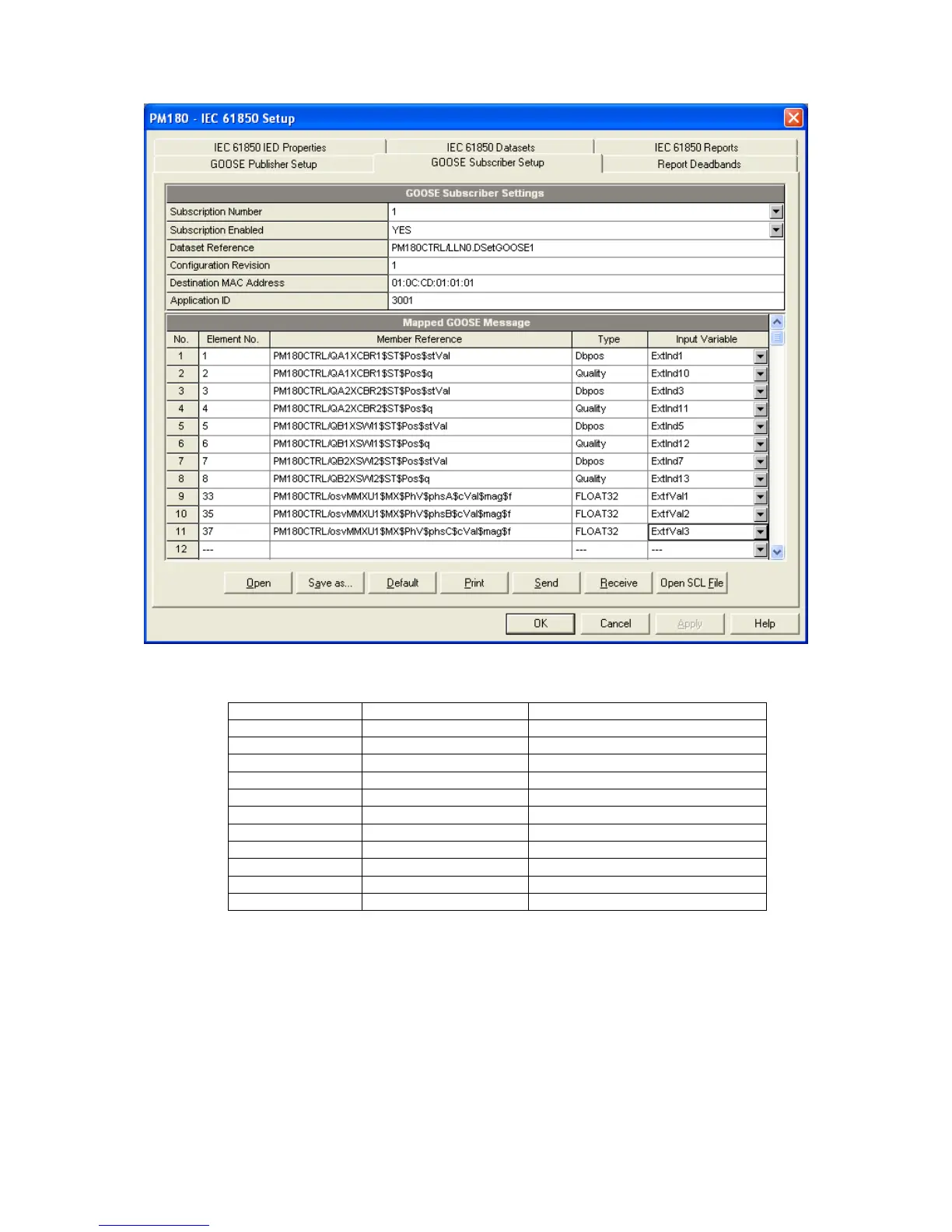

Select compatible input variables to which dataset elements will be mapped in the device.
See the table below for allowable mapping options depending on the basic variable type.
Basic Data Type MMS Data Type Compatible Input Variables
BitString32 Bstring32 ExtInd, ExtiVal
Dbpos Bstring8 ExtInd, ExtiVal
Enum INT8 ExtInd, ExtiVal
INT32 INT32 ExtInd, ExtiVal
INT32U INT32U ExtInd, ExtiVal
INT16 INT16 ExtInd, ExtiVal
INT16U INT16U ExtInd, ExtiVal
INT8 INT8 ExtInd, ExtiVal
INT8U INT8U ExtInd, ExtiVal
BOOLEAN BOOLEAN ExtInd, ExtiVal
FLOAT32 FLOAT32 ExtfVal
NOTES:
• Mapping integer data to a BOOLEAN ExtInd variable results in copying a least-
significant bit of the dataset member only.
• Mapping double-point data of type Dbpos to a BOOLEAN ExtInd variable causes a
high-order bit of the dataset member to be copied to the following BOOLEAN
ExtInd variable.
5. Check the application ID, configuration revision and destination MAC address to meet the
GOOSE publisher attributes.
6. Select Yes in the Subscription Enabled box to activate the subscription.
