SATEL-EASy+
User guide
Version 1.33
74
16.1.2.2 Velcro tapes
SATEL-EASy+ can be attached to flat surfaces with simple Velcro tapes. This installation is rather
temporary than fixed in situations where modem installation needs to be set up quickly without
screws. Velcro tapes are included to installation kit which can be purchased separately.

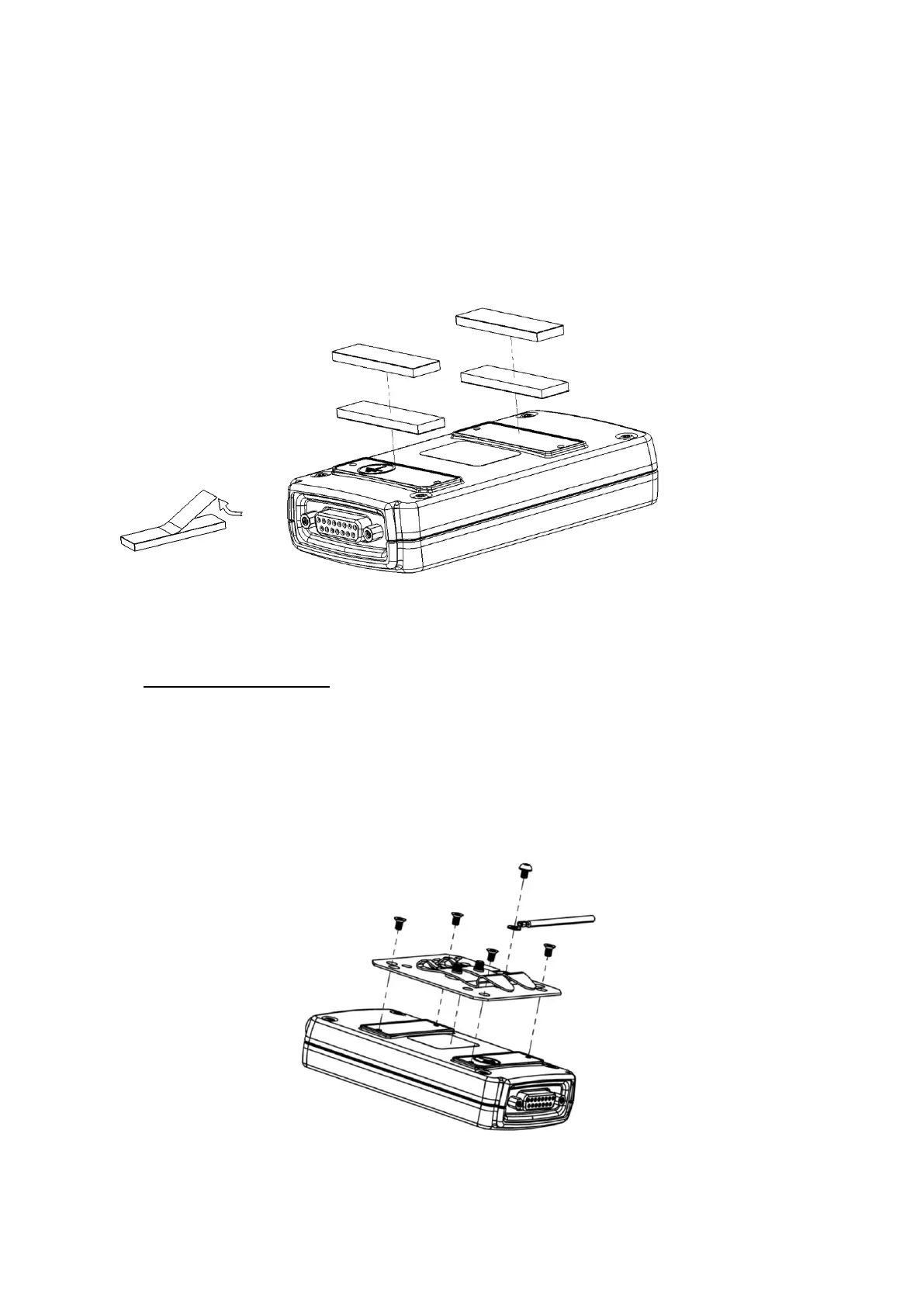

Figure 1.6 Velcro tape positions
16.1.3 DIN Installation Part
DIN installation part includes the necessary parts to attach the modem to a 35 mm DIN rail and it
also includes the grounding parts as in the Installation Parts.
DIN Installation Part can be purchased separately from the supplier and is not automatically
included with the modem. DIN installation part includes the following parts: DIN rail Installation
plate with dual clips, M3 screws (4pcs). Order code for the DIN installation part is ME0220.
Figure 1.7 DIN rail installation plate
