SATEL-EASy+
User guide
Version 1.33
75
16.1.4 Grounding, using the housing
SATEL-EASy+ can be grounded directly using modem housing with its dedicated grounding
point. Grounding point is marked to the housing with Ground – label. It is preferable to use the
screw included with the modem shipment.

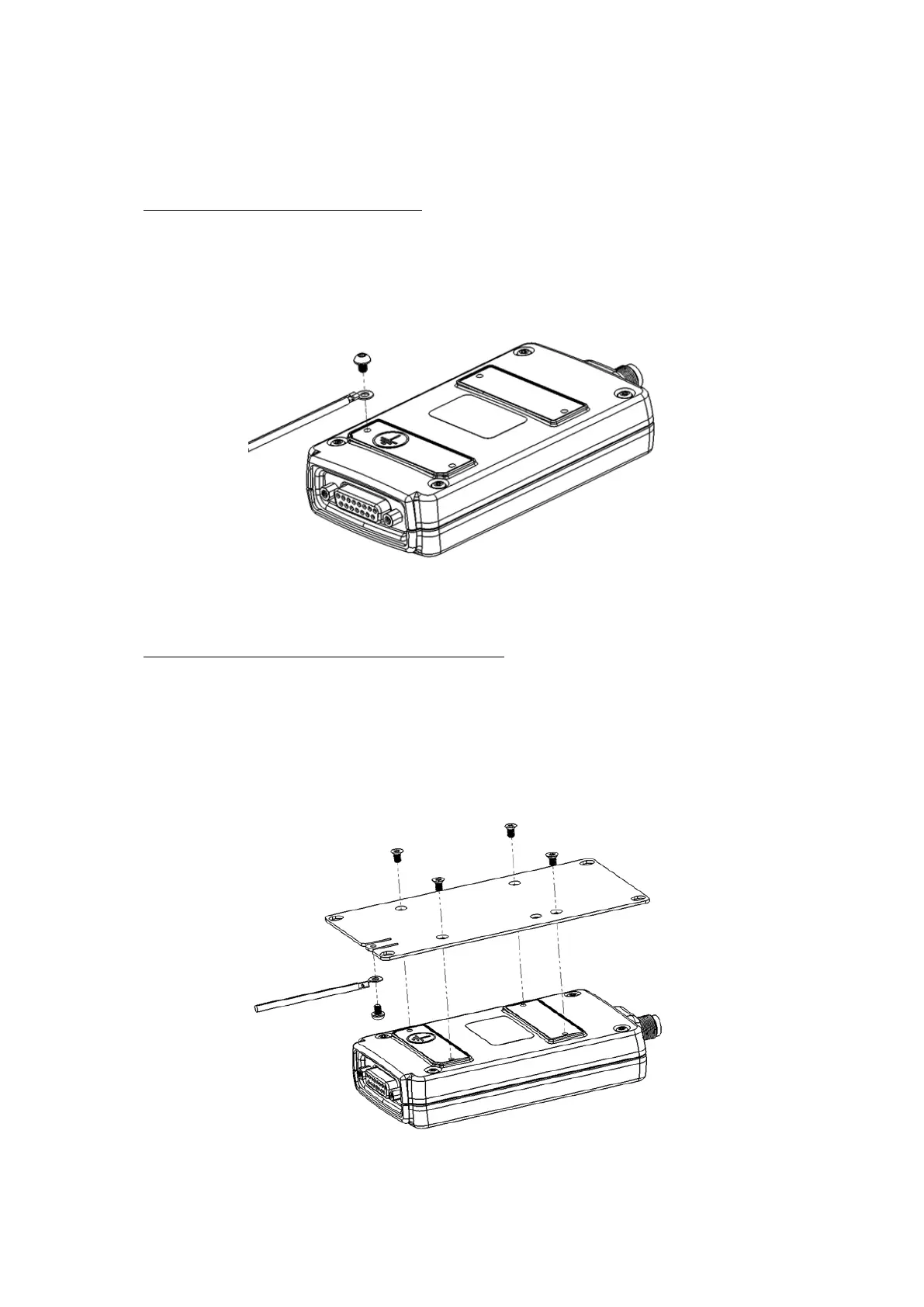

Figure 1.8 Grounding to the back of the housing
16.1.5 Grounding, using the installation plate
Installation plate can be used to accomplish the grounding between the modem and system
grounding rail. Installation plate grounding position is marked with stamped Ground – sign. By
using a proper connector and grounding cable user can create reliable grounding connection.
Additional cable and connector should be purchased separately, see section “Grounding cable”
for further information.
Figure 1.9 Grounding to housing
