4. Settings on the [Printer Settings] Tab
Printersettingscanbeconguredon[PrintingDefaults]and[PrintingPreferences].As
thesettingsthatcanbeconguredarethesameonbothscreens,thissectionwilluse
[PrintingPreferences](Printsettings)todescribethesettings.
[Help]isavailableonallscreens.Clickittoshowadescriptionofthatscreen.

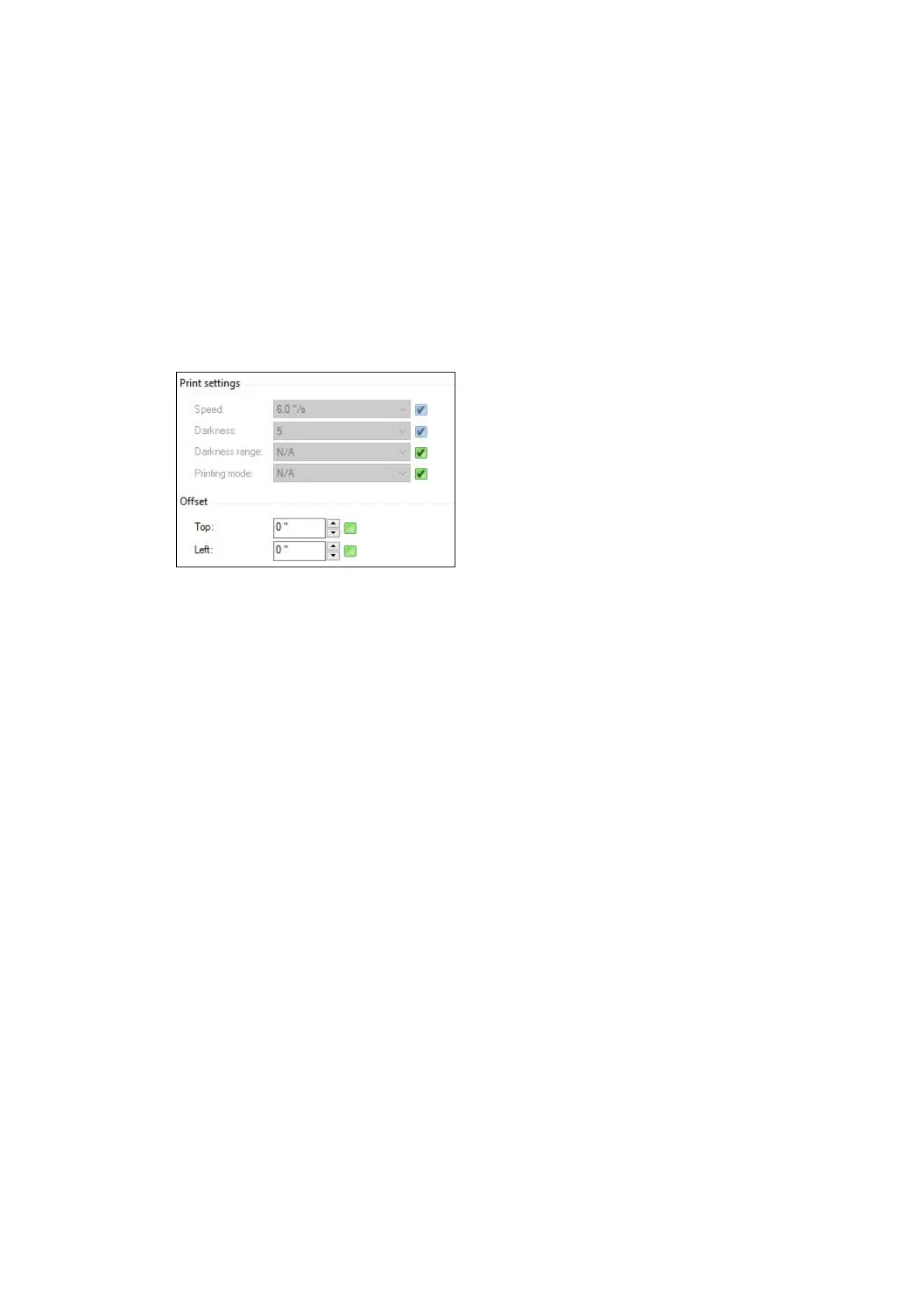

Check Box Behavior
Whenagreenorbluecheckboxistotherightofasetting,theybehaveinthemanner
described below.
Green Check Box
Checked:[Lettheprintercontrolthisoption]
"N/A"willbeshownforthevalueofthesetting.Thissettingvalueisnotsenttothe
printerandtheprintersettingvalueisused."N/A"willalsobeshownforothersettings
that must be used in combination with this setting.
Cleared:[Sendthisparametertoprinter]
Thesettingvaluesaresenttotheprinter.
Blue Check Box
Ifyouselectstockotherthan[Custom]for[Stock]onthe[PageSetup]tab,abluecheck
boxwillbeshownontherightofthefollowingitems.
Media settings
[Width]
[Height]
Print settings
[Speed]
[Darkness]
Ifyouselectthestocktobeusedin[Stock]on[PageSetup],youcanchangetheabove
settingvaluesallatonce.Fordetails,referto"4.1PageSetup".

SATO CL6NX Specifications

General

Flash memory	2000 MB
Storage media	Flash
Internal memory	256 MB
Built-in barcodes	Code 39, Code 93, Code-128 Codabar Library, EAN13, EAN8, GS1 DataBar, Industrial 2/5, Interleaved 2/5, Matrix 2/5
Internal storage capacity	2 GB
Cables included	AC
Maximum roll diameter	220 mm
Maximum printing width	167.5 mm
Printing media thickness	0.08 - 0.268 µm
USB port	Yes
USB connector	USB Type-A / USB Type-B
Bluetooth version	3.0
Serial interface type	RS-232C
USB 2.0 ports quantity	2
Connectivity technology	Wired & Wireless
Wi-Fi	No
Display type	LCD
Product color	Black
Display diagonal	3.5 \
Display resolution	320 x 240 pixels
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	30 - 90 %
Operating relative humidity (H-H)	30 - 80 %
Type	POS printer
Print speed	10 ips
Print technology	Direct thermal / Thermal transfer
Maximum resolution	203 x 203 DPI

Weight and Dimensions

Depth	457 mm
Width	338 mm
Height	321 mm
Weight	20000 g
