SATO TH2 Series User Manual

Section 8: Appendix
TH2 Series Operator Manual Page 8-9
8.3 OPERATION MODE SELECTION (cont’d)
8.3.4 Cutter Mode (cont’d)
Motion 2 (Backfeed set to Before)

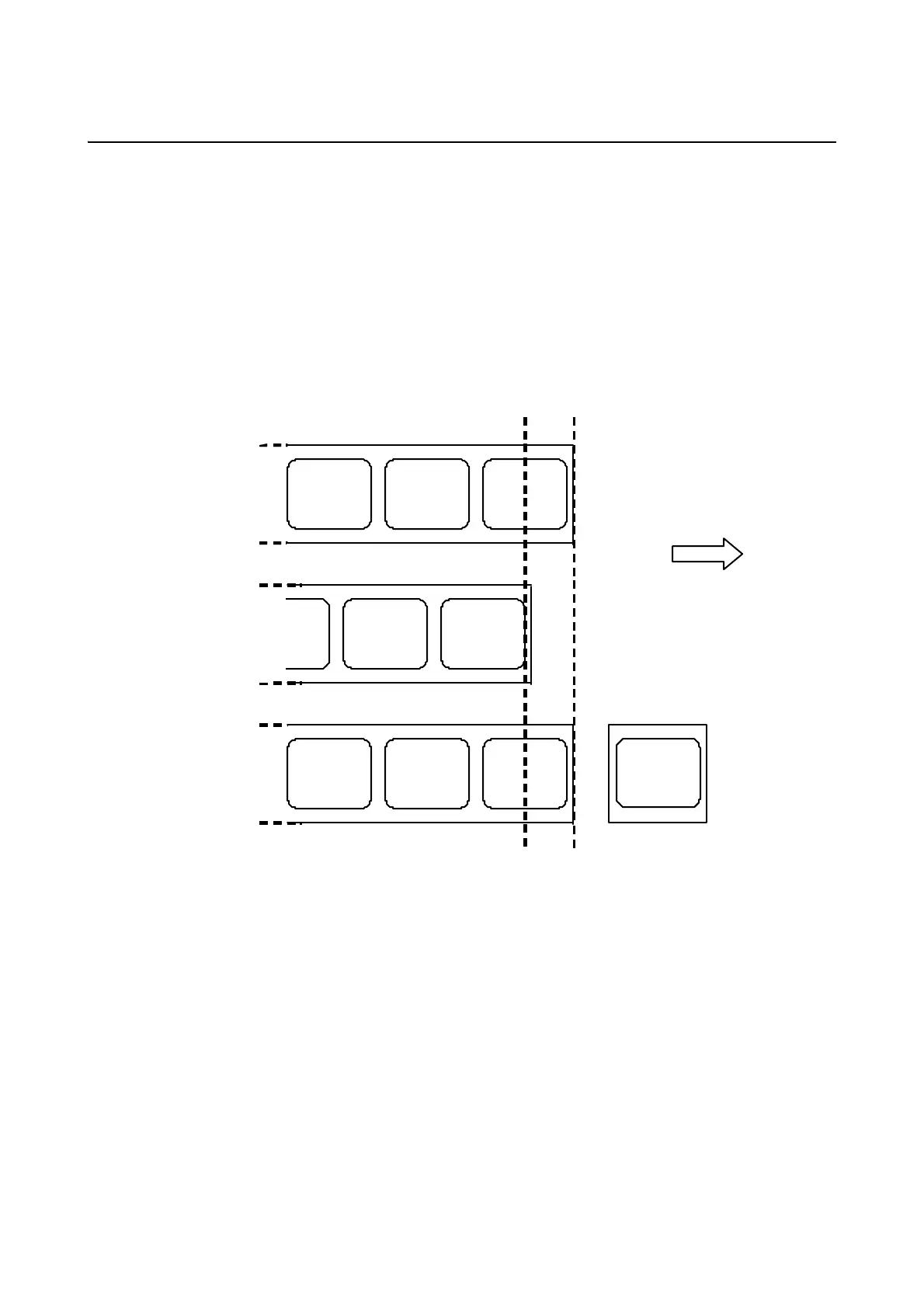

When printing starts (A. in the figure below), the media is in a position so that the previous label could be cut
off.
Before printing label 1, the media has to be fed back so that label 1 is in the printing start position (B. in the
figure below).
Label 1 is printed and the media is fed forward so label 1 can be cut off. (C. in the figure below).
Cutter
B. Media fed
back to
printing start
position
A. Before
printing
Feed
di rec tion
2
3
1
Print head
3
2
1
4
2
1
3
C. Label 1 is
printed and cut
