SATO TH2 Series - Linerless Cutter Mode

Section 8: Appendix
Page 8-10 TH2 Series Operator Manual
8.3 OPERATION MODE SELECTION (cont’d)
8.3.5 Linerless Cutter Mode

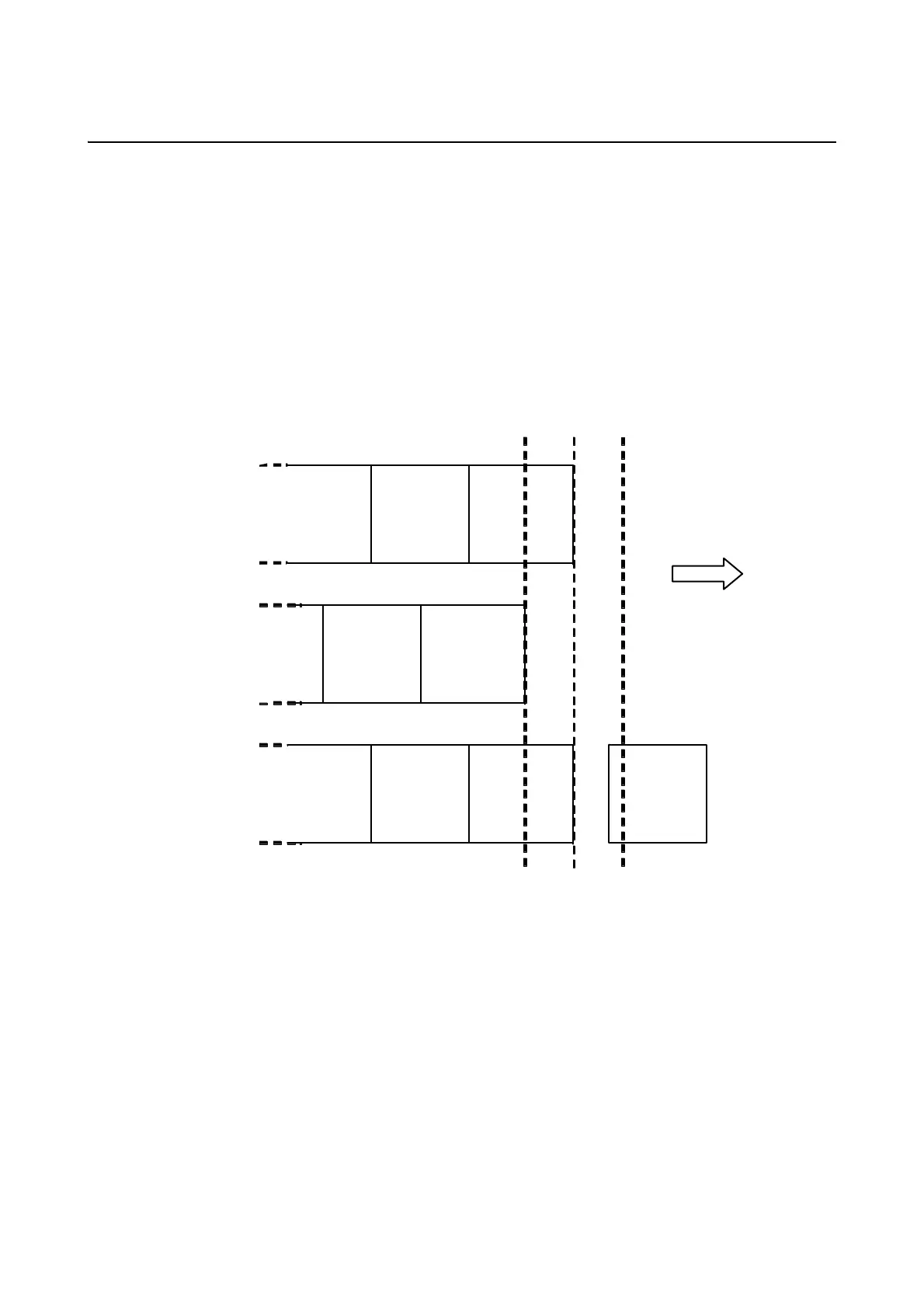

The linerless cutter has an extra sensor (“Cutter sensor” in the figure below) that can detect if the label is
removed or not.
When printing starts (A. in the figure below), the media is in a position so that the previous label could be cut
off.
Before printing label 1, the media has to be fed back so that label 1 is in the printing start position (B. in the
figure below).
Label 1 is printed and the media is fed forward so label 1 can be cut off. (C. in the figure below).
A new print job cannot be started until the previous label is removed.
Cutter
B. Media fed
back to
printing start
position
A. Before
printing
Feed
di rec tion
2
3
1
Print head
3
2
1
4
2
1
3
C. Label 1 is
printed and cut
Cutter sensor
