SATO TH2 Series - Linerless Cutter Journal Mode

Section 8: Appendix
TH2 Series Operator Manual Page 8-15
83 OPERATION MODE SELECTION (cont’d)
8.3.9 Linerless Cutter Journal Mode
Motion 2 (Backfeed set to Before)
Linerless Cutter Journal mode, Motion 2 is identical to Cutter mode, Motion 2 except that neither the gap nor
the I-Mark sensor is enabled. The Sensor Type is set to None or Fix, in Linerless Cutter mode.

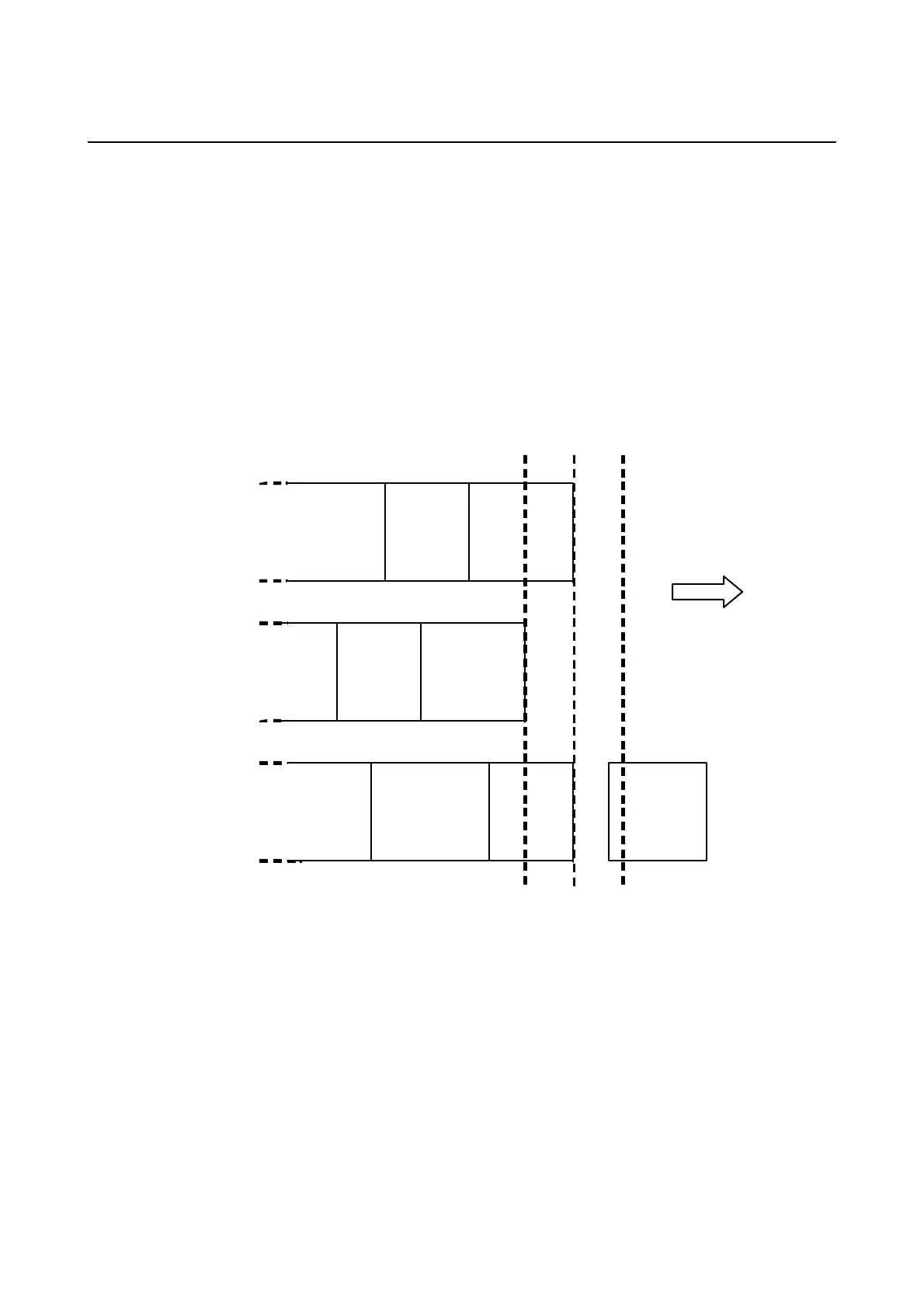

When printing starts (A. in the figure below), the media is in a position so that the previous label could be cut
off.
Before printing label 1, the media has to be fed back so that label 1 is in the printing start position (B. in the
figure below).
Label 1 is printed and the media is fed forward so label 1 can be cut off. (C. in the figure below).
A new print job cannot be started until the previous label is removed.
Cutter
B. Media fed
back to
printing start
position
A. Before
printing
Feed
direction
2
3
1
Print head
3
2
1
4
2
1
3
C. Label 1 is
printed and cut
Cutter sensor
