Section 8: Appendix
TH2 Series Operator Manual Page 8-13
8.4 OPERATION MODE SELECTION (cont’d)
8.4.8 Cutter Journal Mode
Motion 1 (Backfeed set to After)
Cutter Journal mode, Motion 1 is identical to Cutter mode, Motion 1 except that neither the gap nor the I-Mark
sensor is enabled. The Sensor Type is set to None or Fix, in Cutter mode.

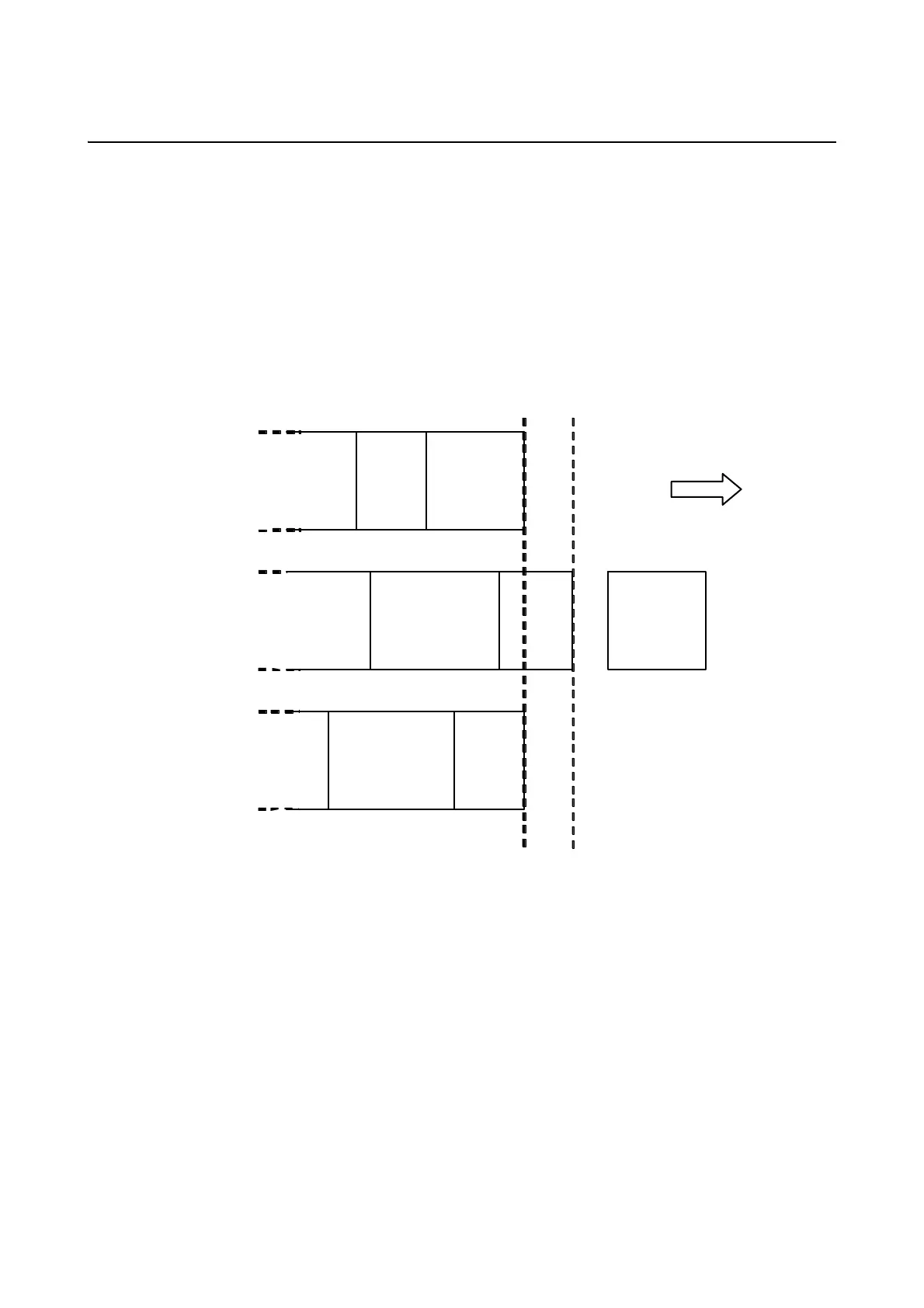

When printing starts (A. in the figure below), the media is in the correct position to start printing.
When label 1 is printed, the media is fed forward so the label can be cut off (B. in the figure below).
When the label is removed, the media is fed back so that the next label is in the start position (C. in the figure
below).
Cutter
C. Media fed
back to
printing start
position
A. Before
printing
Feed
di rec tion
Print head
3
4
2
1
3
B. Label 1 is
printed and cut
4
3
2
1
2
