8.3 OPERATION MODE SELECTION (cont’d)
8.3.7 Tear Off Journal Mode
Tear Off Journal mode is identical to Tear Off mode except that neither the gap nor the I-Mark sensor is
enabled. The Sensor Type is set to None or Fix, in Tear Off mode.

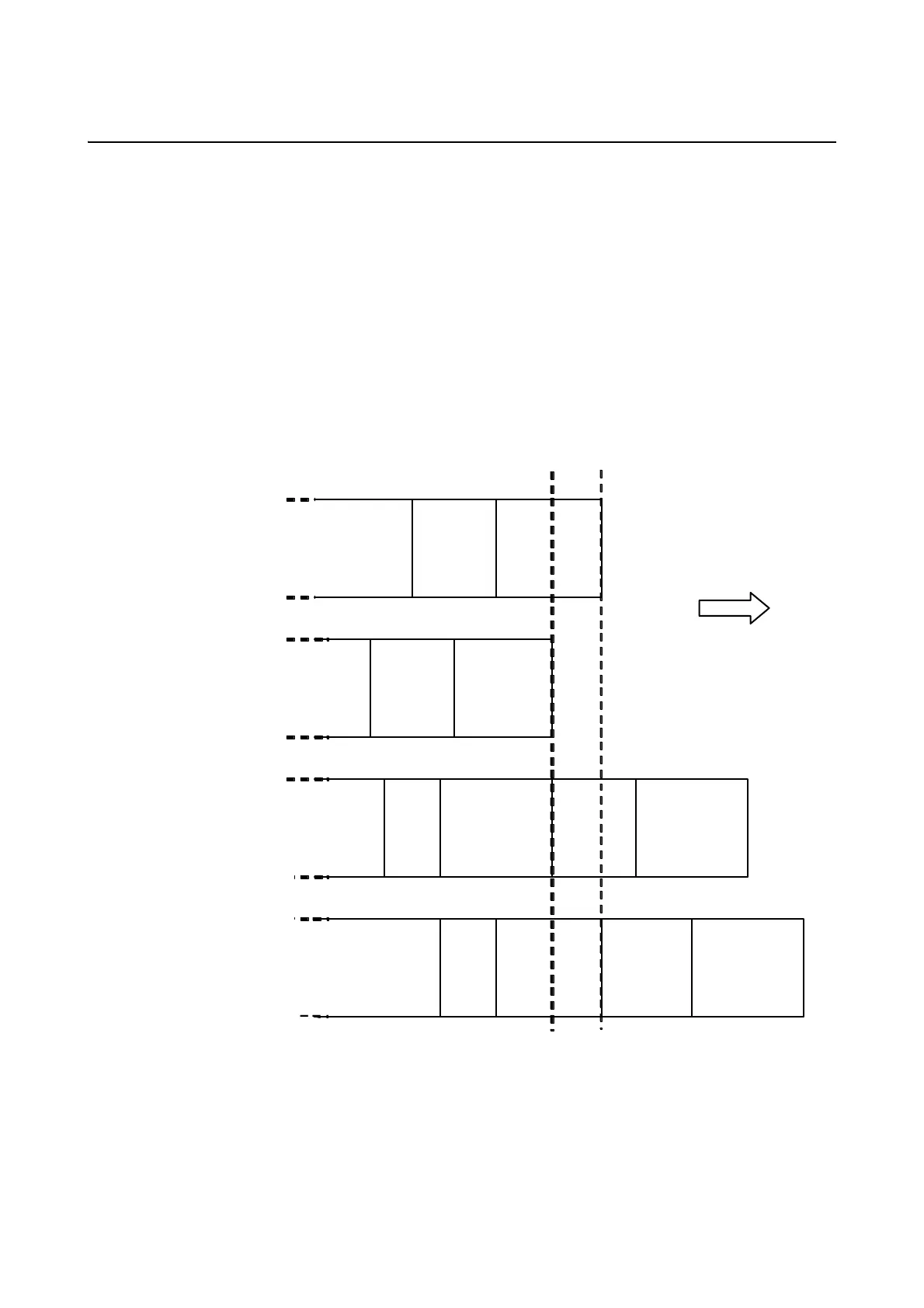

When printing starts (A. in the figure below), the media is in a position so that the previous label(s) could be
torn off.
Before printing label 1, the media has to be fed back so that label 1 is in the printing start position (B. in the
figure below).
Label 1 and label 2 are printed. Now the printer waits 1 second (configurable) for more print jobs with label 3
in printing start position. (C. in the figure below).
Since no more print jobs were received, the media is fed forward so label 1 and label 2 can be torn off on the
tear bar (D. in the figure below).
Tear bar
B. Media fed
back to
printing start
position
A. Before
printing
Feed
di rec tion
2
3
1
Print head
3
2
1
4
2 1
3
5
4
2 1
3
5
C. Label 1 and
2 are printed.
Printer is
waiting for
more print jobs
D. No more
jobs received.
Media is fed
forward so
label 1 and 2
can be torn off.
