8.3 OPERATION MODE SELECTION (cont’d)
8.3.4 Cutter Mode
In Cutter mode, when a label is printed the media is fed forward and cut.
Motion 1 (Backfeed set to After)

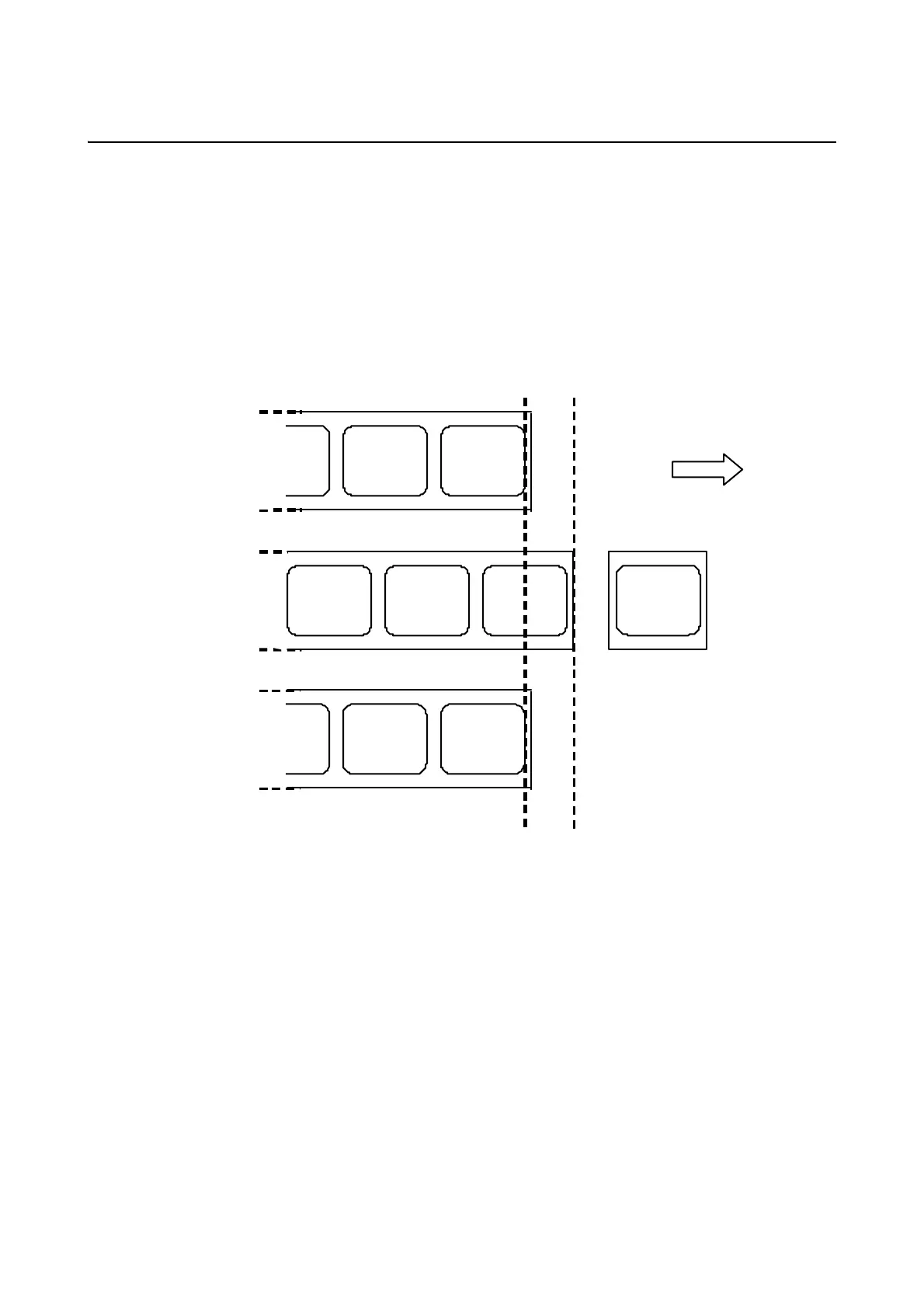

When printing starts (A. in the figure below), the media is in the correct position to start printing.
When label 1 is printed, the media is fed forward so the label can be cut off (B. in the figure below).
When the label is removed, the media is fed back so that the next label is in the start position (C. in the figure
below).
Cutter
C. Media fed
back to
printing start
position
A. Before
printing
Feed
di rec tion
Print head
3
2
1
4
2
1
3
B. Label 1 is
printed and cut
4
3
2
