CURRENCY DISCRIMINATION COUNTER SB-9(2000S) SERVICE MANUAL
- 23 -
DOUBLE TEST
CH LEFT : 550
CH RIGHT : 550

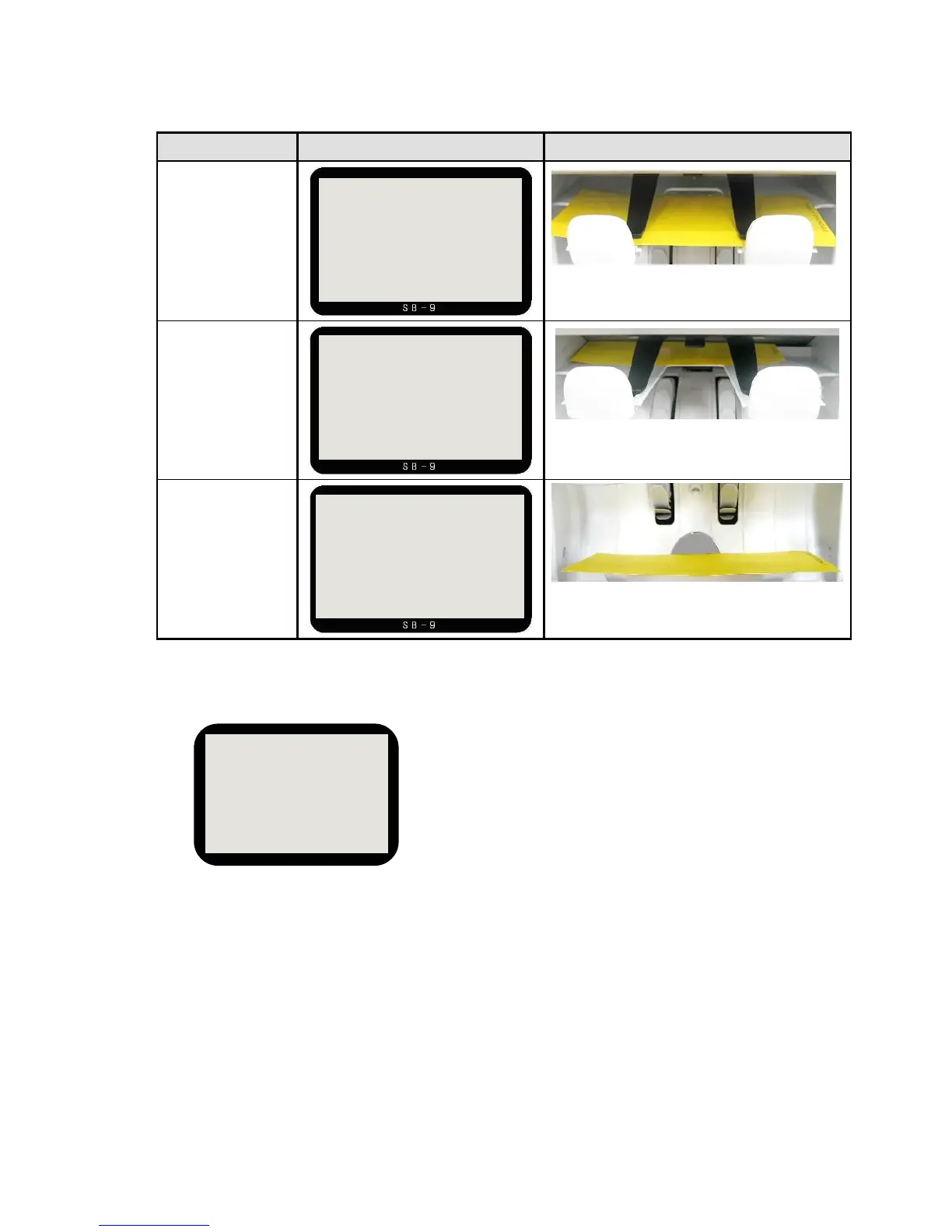

CASE LCD DISPLAY PICTURE
Reject F
(Front) sensor is
covered.
Reject R
(Rear) sensor is
covered.
Stacker sensor is
covered.
4) DOUBLE LOGIC TEST
With this mode, you can check the double level.
Before you select
this mode, you need to check bellows.
 Clean the all notes in the path and close all doors.
 Please run the motor more than 5 sec.
Both of double level(Channel left and right) needs to adjusted ‘550’ (± 50).
For more detail information, please refer to the Chapter10.
LEFT RIGHT
RP1 0 0
JP 0 0
SP 0 0
FRONT 0 REAR 0 0
REJECT F 1 R 0
STACKER 0
LEFT RIGHT
RP1 0 0
JP 0 0
SP 0 0
FRONT 0 REAR 0 0
REJECT F 0 R 1
STACKER 0
LEFT RIGHT
RP1 0 0
JP 0 0
SP 0 0
FRONT 0 REAR 0 0
REJECT F 0 R 0
STACKER 1
