13.1.2.3 Communication error and disconnection

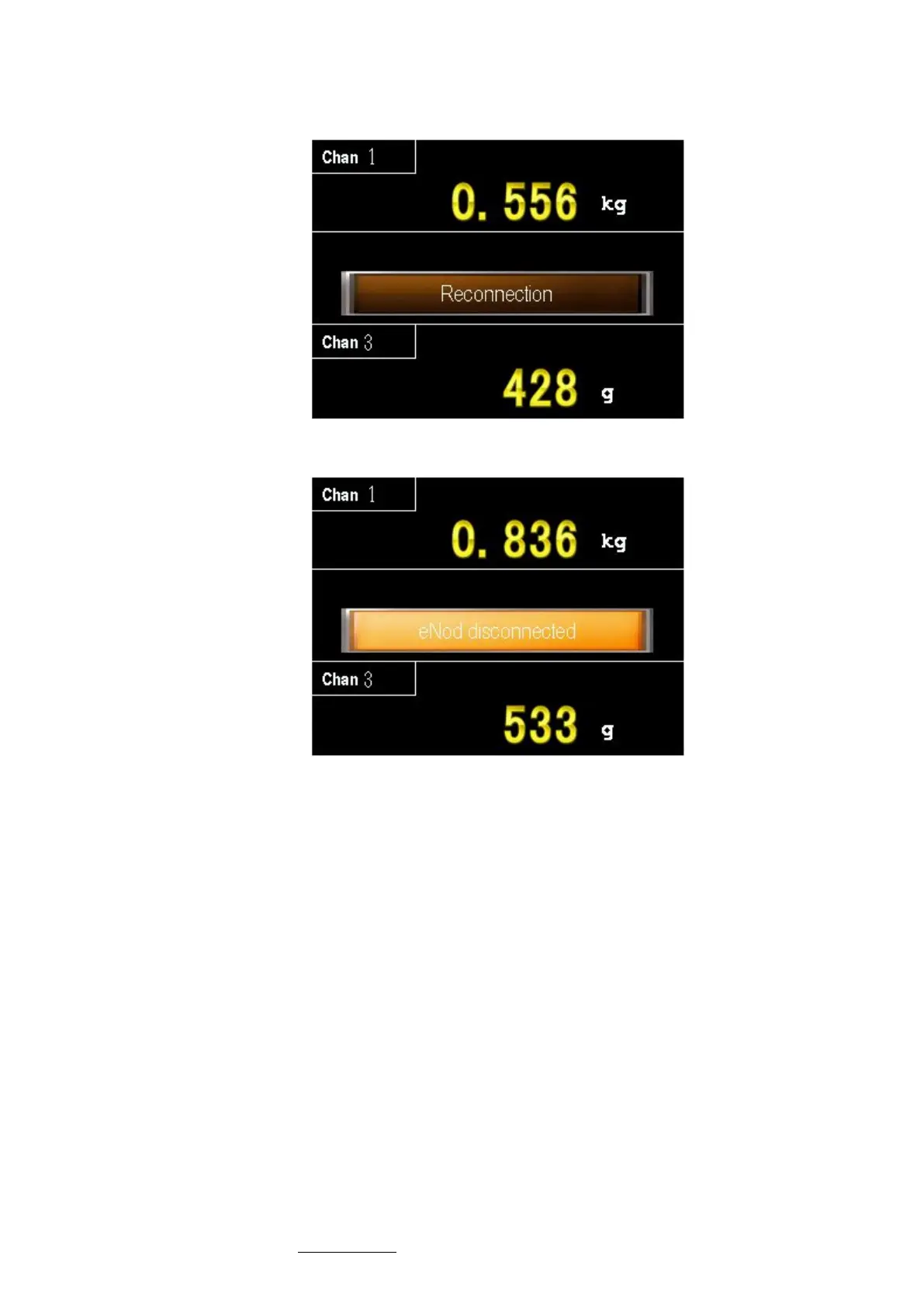

 When an eNod4 has communication problems or is disconnected, the data from other channels freezes for 5
seconds. During this time, a reconnection button appears, eNodTouch tries to recover the connection with
eNod4.
 After 5 seconds if eNodTouch can not recover the connection with eNod4, the button enters in the state
« eNod disconnected », the data display resumes.
 Identify the communication problem in the following list: wiring problem (§1.4), communication parameters
misconfigured on eNodTouch or eNod4 (§2.2.3).
 When you found out the issue, touch the « eNod disconnected » button to re-establish the communication.
 The display module tries to recover the communication with eNod4 during 1 second, the button toggles to
the « Reconnection » state. After 1 second if data from the eNod4 appears, the communication is re-
established, else the button toggles to « eNod disconnected » state.
