Scanreco RC400 G3B - 4 Getting started; 4.1 Portable Control Unit definition

Micro-toggle
Micro-LED
Stop-button
Power-LED
On-button
Cable port
4.1 Portable Control Unit denition
4 Getting started

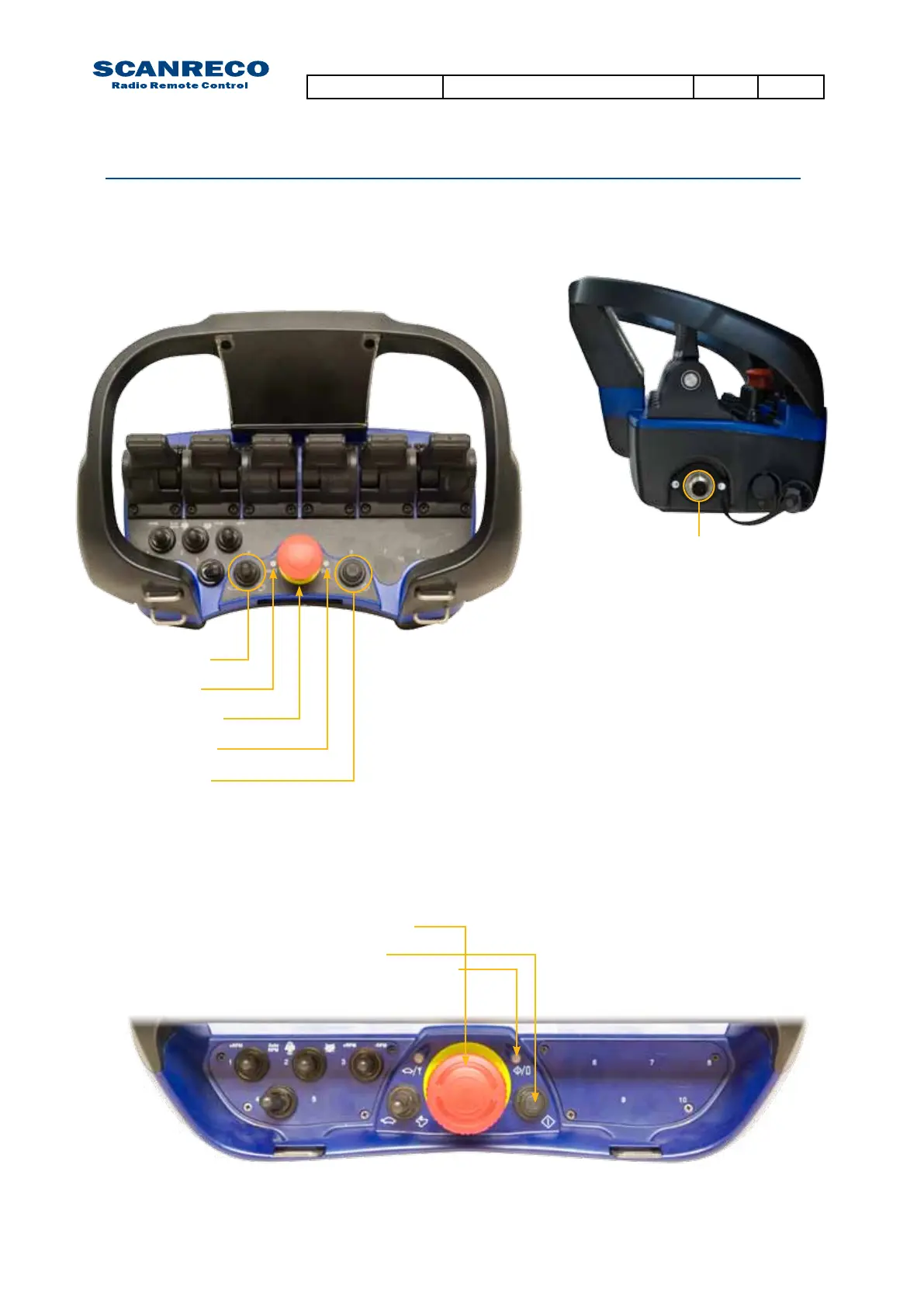

The illustrations below aims to delare all entities mentioned in this document.
Insert battery or connect cable connector!
1. Twist up the Stop-button
2. Press the On-button once
- LED-Power will be illuminated RED
Activating the Portable Control Unit
Document type Document number PageRev
Service Manual S071 C 10 of 46
