5.5 Terminal schematics for current controlled Central Unit G2B

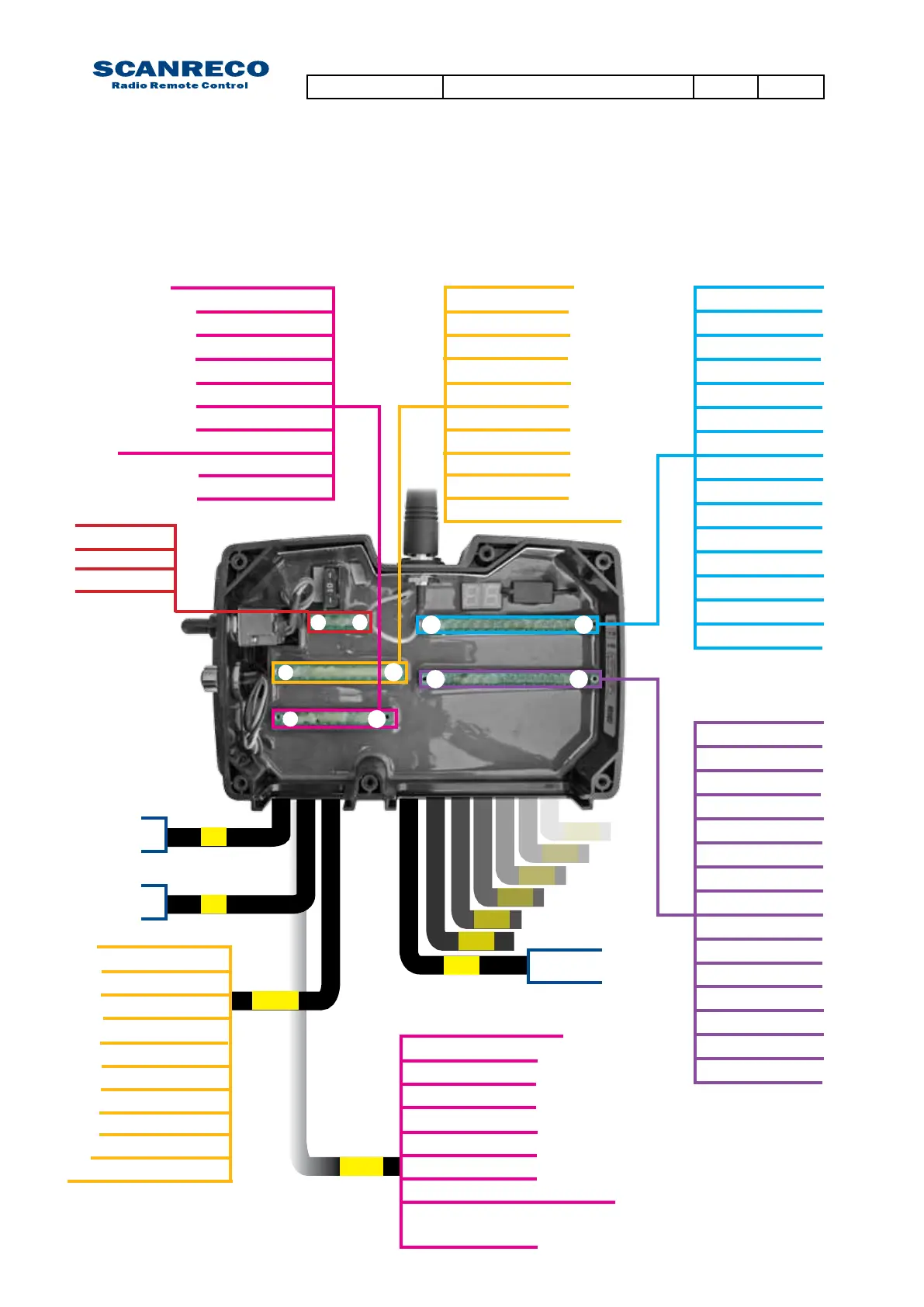

The drawing below declares access points for each available input and output both from the inside
terminal (above) and the standard cable kits (below). Standard cable wire number/marking is also
declared.
Position Type Central Unit
301 3 way detent
toggle
Digital output 1 / Digital output 1 Parallel with ana-
logue input movement (AutoRPM engine feature)
302 3 way spring
back toggle
Digital output 2 / Digital output 3 (Engine start /
Engine stop)
303 3 way spring
back toggle
Digital output 4 / Digital output 5 (Engine RPM+ /
Engine RPM-)
304/305 2 way detent
toggle
Digital output 6 (Optional)
On-button Push button Digital output 7
9= Digital output 14 / Serial out
8=
Digital output 13 / Digital input 4
7= Digital output 12
6= Digital output 11
5= GND
4= Digital output 10
3= Digital output 9
2= Digital output 8
1=
Digital output 7
10= GND
EX 2
EX 1
11 Input supply +VDC
10= Digital input 3
9= Digital input 2
8=Digital input 1
1= Digital output 1
3= Digital output 3
2= Digital output 2
4= Digital output 4
5= Digital output 5
6= Digital output 6
7= GND
11 Input supply +VDC
10= Digital input 3
9= Digital input 2
8= Digital input 1
7= GND
6= Digital output 6
5= Digital output 5
4= Digital output 4
3= Digital output 3
2= Digital output 2
1= Digital output 1
1= Supply
1= DV+
2= GND
2= DV-
+/-
DV
1
1
16
17 32
1 = 1A PWM +
17 = 5A PWM +
2 = 1A PWM -
18 = 5A PWM -
3 = 1B PWM +
19 = 5B PWM +
4 = 1B PWM -
20 = 5B PWM -
5 = 2A PWM +
21 = 6A PWM +
6 = 2A PWM -
22 = 6A PWM -
7 = 2B PWM +
23 = 6B PWM +
8 = 2B PWM -
24 = 6B PWM -
9 = 3A PWM +
25 = 7A PWM +
10 = 3A PWM -
26 = 7A PWM -
11 = 3B PWM +
27 = 7B PWM +
12 = 3B PWM -
28 = 7B PWM -
13 = 4A PWM +
29 = 8A PWM +
14 = 4A PWM -
30 = 8A PWM -
15 = 4B PWM +
31 = 8B PWM +
16 = 4B PWM -
32 = 8B PWM -
1= PWM +
2= PWM -
Analogue outputs
1 4
1 A
11
1 B
2 A
2 B
3 A
......
8 B
10= GND
4 = DV-
3 = DV+
2 = GND
1 = + Supply
9= Digital output 14 / Serial out
8=
Digital output 13 / Digital input 4
7= Digital output 12
6= Digital output 11
5= GND
4= Digital output 10
3= Digital output 9
2= Digital output 8
1=
Digital output 7
1
10
Document type Document number PageRev
Service Manual S071 C 19 of 46
