Scanreco RC400 G3B - 13.2 Standard Supply cable kits

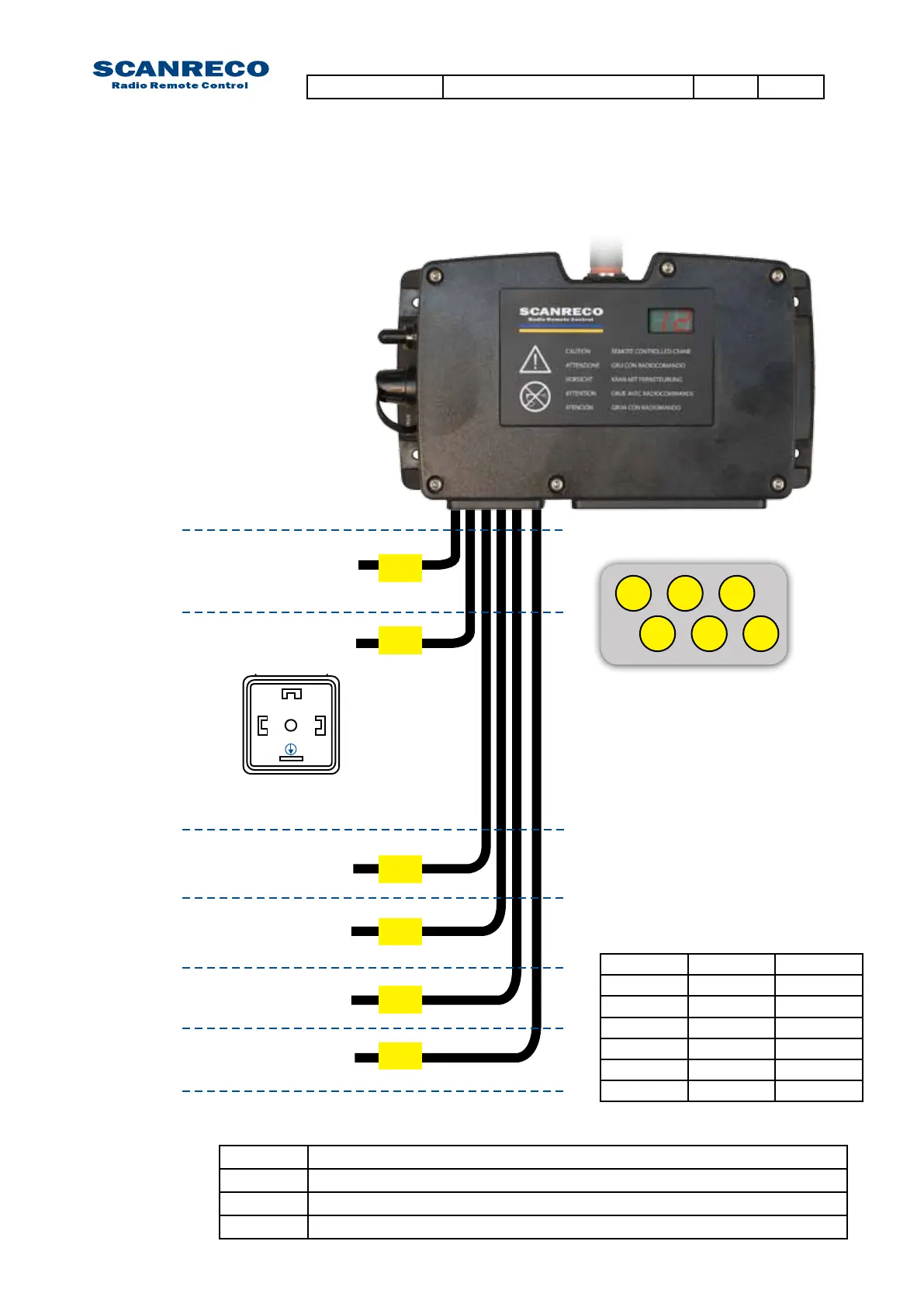

Part number information:
Part no: Output Cables
47979 Powersupply,DV&EX1
47752 Powersupply,DV,EX1&EX2
48810 Powersupply,DV,EX1,EX2,EX3&EX4
+/-
DV
EX1
EX2
EX3
EX4
1
2
3
EX1 +/- DV
EX2
EX3 EX4
EX1 - Digital functions
See chapter 5.5 - 5.6 for
assignments
EX2 - Digital functions
See chapter 5.5 - 5.6 for
assignments
EX3 - CANBUS
See chapter 5.7 for
assignments
EX4 - CANBUS
See chapter 5.7 for
assignments
+/- Power supply
See chapter 5.5 - 5.6 for
assignments
DV - Dump Valve output
Hirchmann GDM3009
1
DV+
2
DV-
Cablespecication:
Cable Lenght Wires x Dim.
+/- 2,5meters 2x2,5mm
DV 2 meters 2x1,0mm
EX1 3 meters 11x0,5mm
EX2 3 meters 10x0,5mm
EX3 3 meters 5x0,5mm
EX4 3 meters 5x0,5mm
Girder/cable alignment:
2
2
2
2
2
2
2
13.2 Standard Supply cable kits
Forconnectionofpowersupplyinput,DV-output,DigitalfunctionsandCANBUS.
Central Unit type:
2010
2011
3010
3011
