Scientifica MDU - 8.2 Above-Stage MOC Variant with U-AAC condenser

Page 52 of 58
8.2 Above-Stage MOC Variant with U-AAC condenser

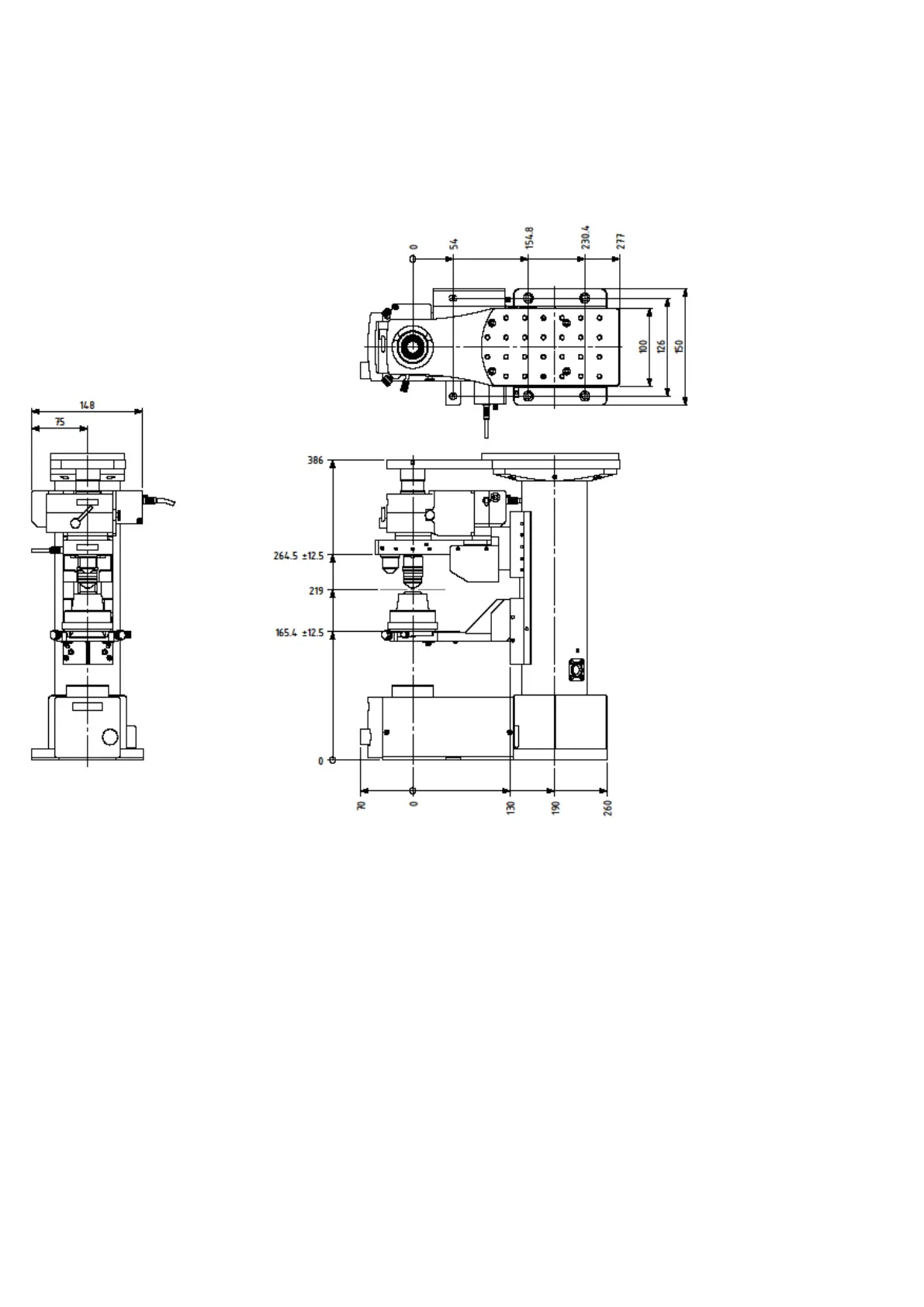

Figure CC: Above-stage
MOC variant with U-
AAC condenser
Notes
The Motorised
Objective Changer
(MOC) will only accept
RMS-thread objectives.
It is typically populated
with a low-power air
objective (e.g. X4) and
a higher-power water-
immersion objective
(e.g. X40 NA 0.8).
For in vivo use the
substage condenser
and illumination optics
block can be removed.
