5. Select the configuration of the mains detection of the generating set by clicking directly on the touch screen.
For a mains detection by means of the regulation card you must select the configuration “Mains supply detection
using the adjustment card”
and connect the voltage reference to the terminals Xcbc1 - 1-2-3.
For mains detection by an external switch you must select the configuration “Mains supply detection using an external
contact”
and connect the external switch to the terminals Xcbc3 - 34-35.
For starting by means of an external switch you must select the configuration “Mains supply detection using an
external contact”
and connect the external switch to the terminals Xcbc3 - 32-33.
For solo starting, in the absence of a mains connection, you must select the configuration “Mains supply detection using
an external contact”
. No connection is necessary.
N.B. selecting detection depends on the connection made according to Section “Connections of the
generating sets”.
Important

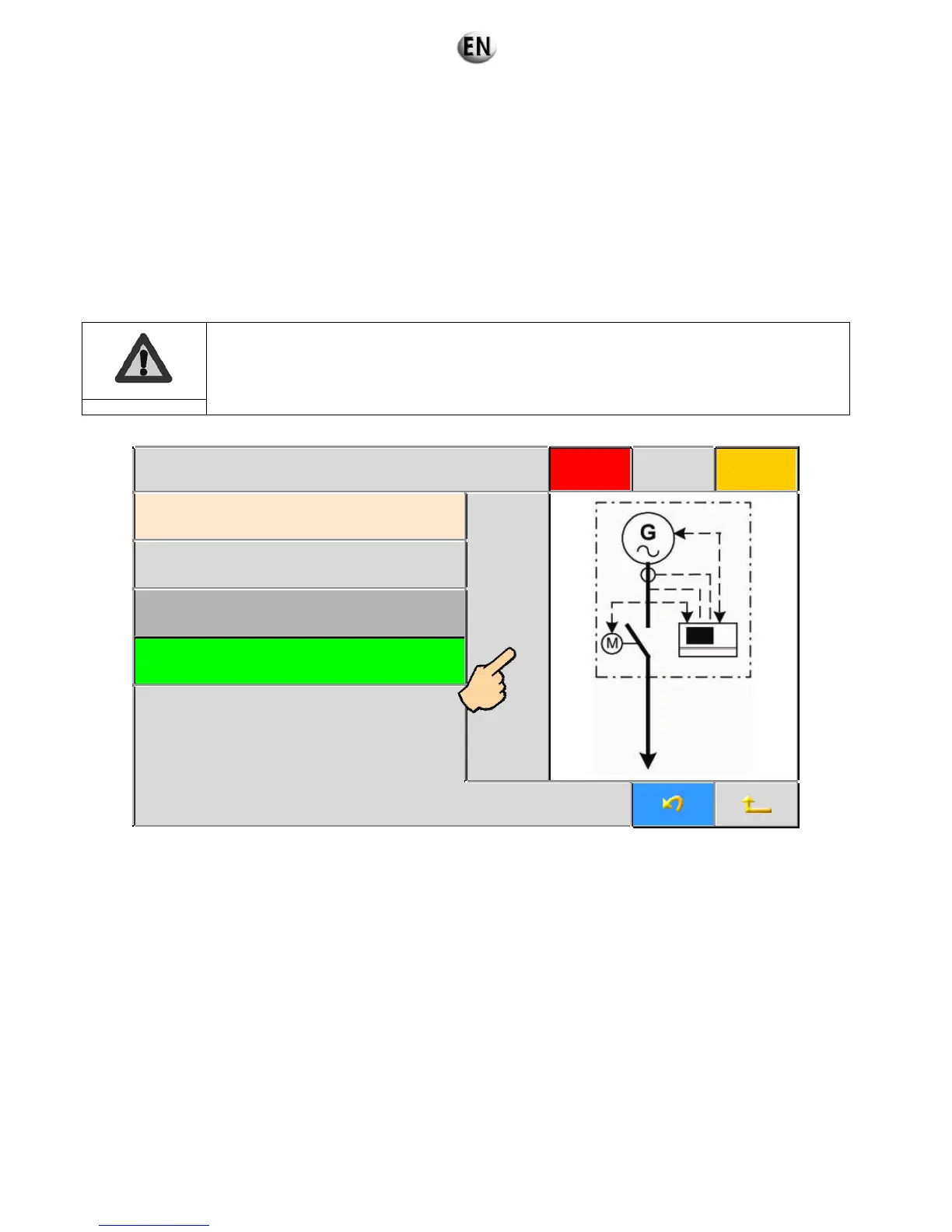

15/07/09 19:10 :00 GS 1 Rental application Stop Faults Alarms
A612: Single Genset without N/E
Validation
Mains supply detection using the adjustment card
Mains supply detection using an external contact
6. Press “Validation" on the touch screen.
